Application

Tension set for ADSS cable is used to connect cable and pole or tower for ADSS cable line, and clamp can protect cable and help cable to reduce vibration.With preformed rods' special design,it can keep tension clamp not produce the  stress concentration which damage ADSS cable and keep cable normal use.

Structure&Materials

Hot galvanized steel shackles play a role in connection with the tower fasteners. Failure load: U-7 to 70kN, U-10 to 100kN, U-12 to 120kN.

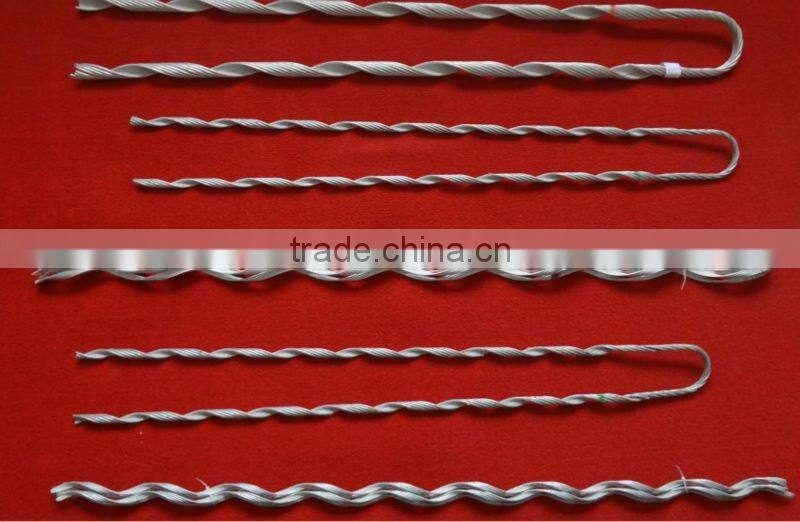

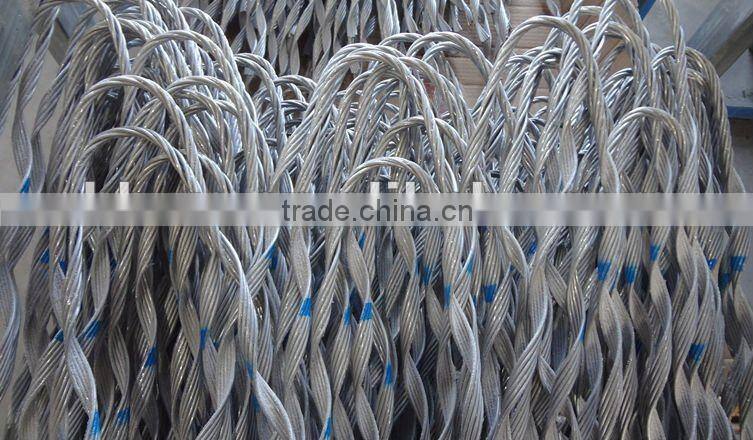

Preformed tension rods:

Be made of galvanized steel wire or aluminum clad steel and preformed into the process when prefabricated beam, inner wall layer of emery stick, and enhance the friction between clamp and cable.

Tension rods:

Galvanized steel precision, the heart-shaped tension ring and shackle connected to avoid strain clamp too close to the exit of cable from the pole, keep the cable bend radius large enough.

Heart-shaped tension ring:

Galvanized steel precision, clip embedded in the U-bend Clamp head, the protection Clamp connection with the extension rod. Failure load is 40kN, 70kN, 100kN and 120kN, etc..

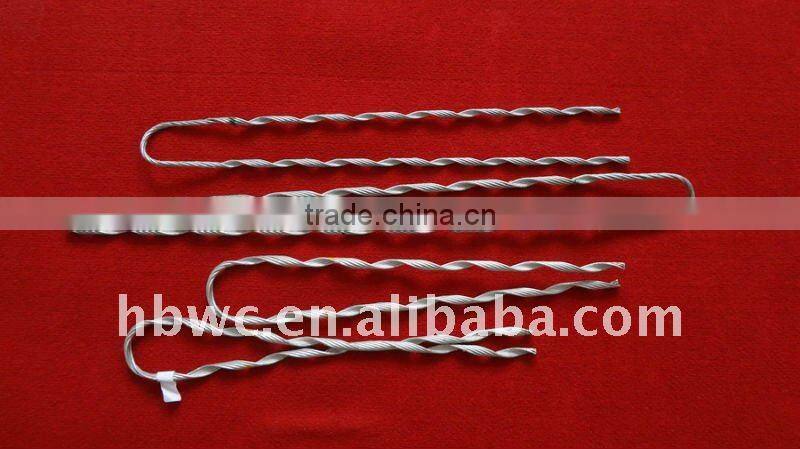

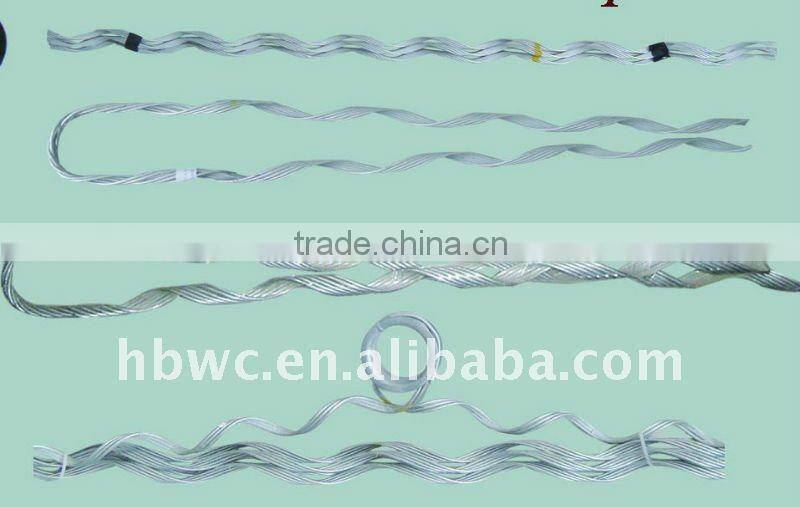

Preformed armour rods:

Galvanized steel or aluminum clad steel wire, preformed armour rods wall sticky particulate silicon carbide to increase friction and reduce the pressure on the cable side. preformed rods  when the pre-processing into several sub-beams, to avoid installation errors and to facilitate rapid installation. Preformed wire toward the end of different specifications according to the radial lateral bending, to avoid vibration in the breeze under the cable clamp at the end of the friction and prevent damage to cable extrusion.

1. Materials&Structure

Suspension head:

It's made of Aluminum splint,U-card,preformed armor rods and rubber calmp.

Aluminum Splint:

By the anti-corrosion, high strength aluminum alloy die casting made of aluminum and chemical properties of the stable, good resistance to atmospheric corrosion, have a good comprehensive mechanical properties.

Preformed armor rods:

According to a predetermined chemical composition and mechanical properties of custom aluminum alloy wire, galvanized steel wire, aluminum clad steel wire, high tensile strength, hardness, good flexibility and strong anti-rust capability, to the harsh climatic conditions Long-term use.

Rubber clamp:

Center of high quality rubber and reinforcement composed of anti-ozone resistance, chemical resistance, weather aging, with high and low temperature performance, and high strength and elasticity, the smaller deformation.

2. Advantage detailed description.

(1) Special material for superior quality and longevity.

(2) Phosphating surface finish for environmental protection, rust protection.

(3) We are the professional manufactures of the products have been gotten an honor in domestic and foreign. We will try our best to meet your need.

(4) Different kinds of electic power fittings are produced and sold with high quality and competitive.

(5) All the products are national standard, and also can be made with your design.

(6)  Attractive appearance, easy installation, reasonable price.

Cable Fitting for ADSS/OPGW/ACSR

General Specification:

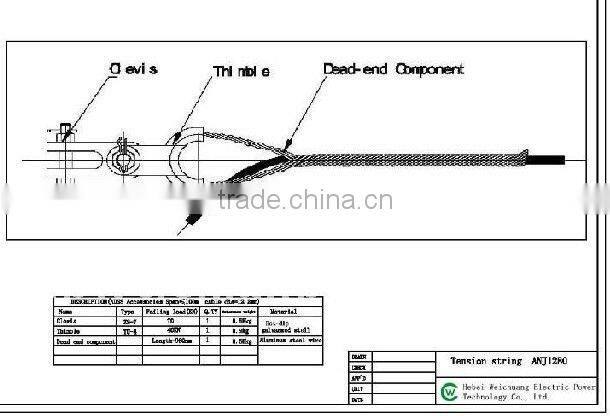

1.Comprised : outer tension preformed rod , Inner preformed armor rod , u type thimble clevis , bolt&nuts.

2.Feature :

1). well-proportioned stress ,no stress concentration point ,Protect the optical cable well .

2). In not more than cable pressure under the premise of strength , No less than the grip of fiber optic rated tensile strength of 95%,

Applicable : Terminal tower ,suspension tower, Corner tower

Detail Specification :

Cable fitting for ACSR Part one:

Cable fitting Part two:

3. Package

We will be responsible for packing the stores suitable for transit by sea/ rail/ road so as to ensure their being free from loss or damage on arrival at destination.
