Taicang Suzhou China XINXING Elevator Guide Rail
Please click the link below for detailed information of each type guide rails.
Cold draw guide rail :
T45/A:45*45*5mm; T50/A 50*50*5mm
T70/A :70mm*65mm*9mm
Machined guide rail:
T70-1/B:70mm*65mm*9mm
T75/B orT75-3/B: 75mm*62mm*10mm
T78/B: 78mm*56mm*10mm
T82/B: 82.5mm*68.25mm*9mm
T82-3/B:82mm*62mm*15.88mm
T89/B or T89-1/B: 89mm*62mm*16mm
T90/B: 90mm*75mm*16mm
T114/B:114*89*16mm
T127-1/B: 127*89*16mm
T127-2/B: 127*89*16mm
Hollow guide rail:
TK5A,TH5A
TK5,TH5
TK3A,TH3A

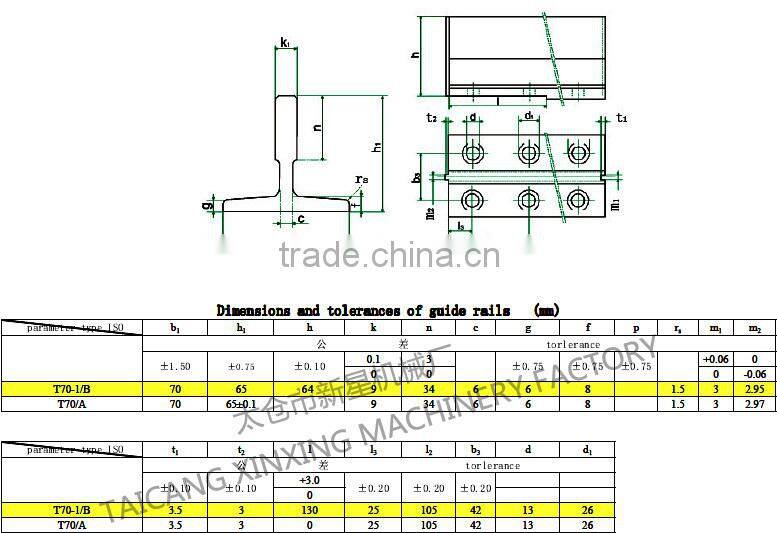

The drawing of T70

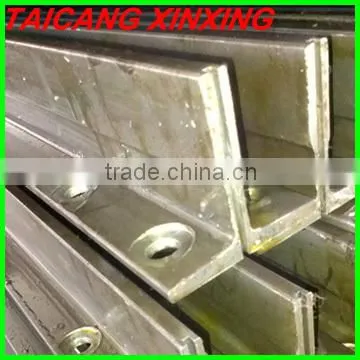

Information of Taicang Xinixng elevator guide rails T70:
We have two kinds T70.T70-1/B is machined guide rail,T70/A is cold draw guide rail.Machined guide rail is much cheaper than cold draw guide rail.Their sizes are almost same,please refer to the drawing.
1. basic dimensions: 70mm*65mm*9mm
notes: bottom width is 70mm, height is 65mm, top width is 9mm, length is 5meters.
2. basic dimensions of its matched accessories

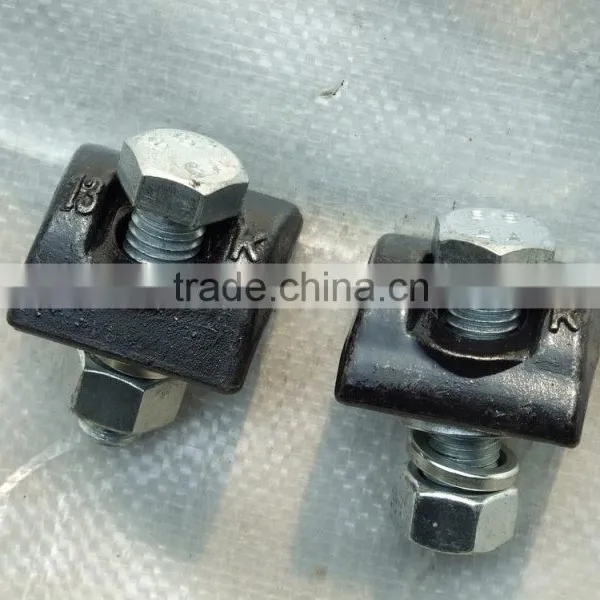

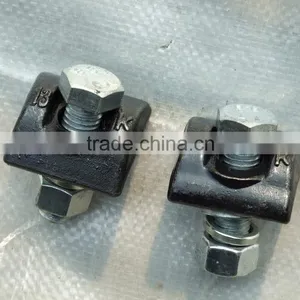

fishplate: 250mm*70mm*10mm; clip:8k; screw:M12*35
3. processing methods: machining or cold-drawing

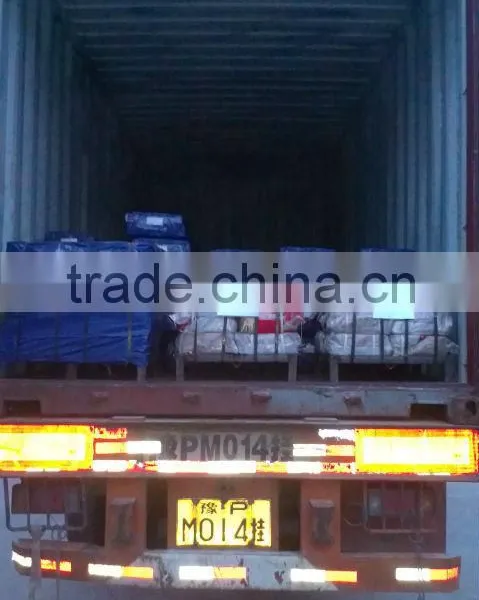

4. a 20` container can hold about 600 pcs of T70 elevator guide rails without accessories.
5. material: all types of guide rails material is Q235
Item Grade | Chemical Composition | ||||
C | Mn | Si | S | P | |
Q235 | 0.14-0.22 | 0.35-0.65 | 0.12-0.30 | ≤0.05 | ≤0.045 |
Mechanical property |
| ||||
Yield Strength N/mm2 | Tensile Strength N/mm2 | Elongation |
| ||
≥235 | 400-450 | ≥24 |
| ||
6. remarks
All our products are produced according to ISO7465 international standard. If you have your own standard, we can also produce according to your specific dimensions. Dimensions displayed here is only a brief version. If you want details, please contact
Since 2006, our factory has developed from a factory that mainly provides machinery processing services to a specialized manufacturer of a series of guide rails for elevators. These elevator guide rails are usually used for vertical lifts & elevators to slide up and down safely and smoothly.
Our factory has passed ISO 9001 certificate. And our guide rails has passed type test in our industry.
In 2008, we started the foreign trade business. The daughter of Mr.Qian is in charge of the foreign trade business. We are able to listen carefully to the needs of customers and prepare the goods well and quickly. With high quality , and reasonable price, our products garner a good reputation both in domestic and overseas markets.
Please check the picture for detailed link.
Elevator Guide Rails – Frequently Asked Questions
How to name guide rails?
The departure point of naming guide rails varies from country to country. Some name the guide rail according to the width of its aspect of guiding, such as T9, T16. While others name based on its weight, like 8LB, 12LB . However, we mostly name guide rail according to its width of bottom, for example: T70, T50.
What difference is there between cold-drawn and planed guide rails?
The process for cold-drawn involves stretching the material thus modifying its structure. Planing involves machining the guide rail by stripping the edgings.
Are the speed limits for the different qualities precise?
No, the calculations for comfort are carried out using a mathematical model validated with practical tests, hence the speed limits set are approximate.
Why are the guide rails 5 meters long?
The guide rails are 5 meters long because it is the appropriate manufacturing length and allows the parameters for straightening to be checked properly.
Do the guide rails have any surface treatment?
No, the guide rails do not have surface treatments. On cold-drawn guide rails the cold-drawn process modifies the mechanical features of the material.
