SVR10 EVR10 Refrigerator Diaphragm Solenoid Valve With 24 220 230 Volt AC Coil 1/2 5/8 ODF Solder SAE Flare for Air Conditioning

SVR10 EVR10 Refrigerator Diaphragm Solenoid Valve With 24 220 230 Volt AC Coil 1/2 5/8 ODF Solder SAE Flare for Air Conditioning thumbnail-1
SVR10 EVR10 Refrigerator Diaphragm Solenoid Valve With 24 220 230 Volt AC Coil 1/2 5/8 ODF Solder SAE Flare for Air Conditioning thumbnail-2
SVR10 EVR10 Refrigerator Diaphragm Solenoid Valve With 24 220 230 Volt AC Coil 1/2 5/8 ODF Solder SAE Flare for Air Conditioning photo-1
SVR10 EVR10 Refrigerator Diaphragm Solenoid Valve With 24 220 230 Volt AC Coil 1/2 5/8 ODF Solder SAE Flare for Air Conditioning photo-2
US$ 15 - 30 MOQ: 50 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
Sanrong
Model Number:
SVR10 / EVR10
Contact Supplier Request Quote Chat Now
Shanghai Xinchang Refrigeration & Heating Materials Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Ningbo Shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Zhejiang, China
Brand Name Sanrong
Model Number SVR10 / EVR10
Type Other, Solenoid Valve
Application Refrigeration Parts
Certification CE

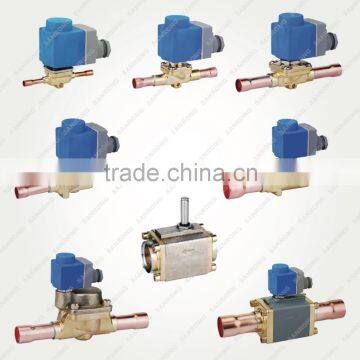

Sanrong SVR Solenoid Valve  for refrigeration and air conditioning system

SVR10-4  1/2" SAE      Cross Reference: Danfoss EVR10  032F8095

SVR10-5  5/8" SAE      Cross Reference: Danfoss EVR10  032F8098

SVR10-4S  1/2" ODF   Cross Reference: Danfoss EVR10  032F1217  032F1218

SVR10-5S  5/8" ODF   Cross Reference: Danfoss EVR10  032F1214  032F1214

PRODUCT DISCRIPTION

SVR valves are normally closed direct or servo-operated solenoid valves for liquid, suction vapour and hot gas lines. They are suitable for condensing units and power packs in all refrigeration, freezing, air conditioning, heat pump applications and systems.

FEATURES

  • Compatible to all CFC, HCFC and HFC refrigerants

  • Standard ODF solder connections up to 2 1/8 in.

  • Available SAE flare connections up to 5/8 in. for SVR 3-10

  • Hot forged brass valve body for SVR 3-25, and cast iron body for SVR 40-50

  • Designed for media temperature up to 105°C

  • 100% factory tested for both external and internal leaks

SPECIFICATIONS



SVR10 EVR10 Refrigerator Diaphragm Solenoid Valve with 24 220 230 Volt AC Coil 1/2 5/8 ODF Solder SAE Flare for Air ConditioningSVR10 EVR10 Refrigerator Diaphragm Solenoid Valve with 24 220 230 Volt AC Coil 1/2 5/8 ODF Solder SAE Flare for Air Conditioning



Model Conn. Size Kv Factor (m³/h) MWP (MPa) Dimensions (mm) Rated Capacity (kW)
Liquid Suction Vapour Hot Gas
A B C D R22 R134a R404A R22 R134a R404A R22 R134a R404A
SVR 3  1/4 0.27 4.5 14 71 102 7 5 5 4 N/A N/A N/A 3 2 2
 3/8 73 121 10
SVR 6  3/8 0.80 79 146 10 16 15 11 2 1 2 7 6 6
 1/2 127 10
SVR 10  1/2 1.90 3.5 16 79 127 10 38 35 27 4 3 4 18 14 14
 5/8 160 12
SVR 15  5/8 2.60 3.2 19 86 176 12 52 48 37 6 4 5 24 19 20
 7/8 176 17
SVR 20  7/8 5.00 20 90 191 17 101 93 70 11 8 10 46 37 38
1 1/8 214 23
SVR 22 1 3/8 6.00 281 25 121 111 84 14 10 12 55 44 45
SVR 25 1 1/8 10.0 38 138 256 23 201 186 141 23 16 20 92 73 75
1 3/8 287 25
SVR 32 1 3/8 16.0 47 111 275 25 322 297 255 37 26 33 148 117 120
1 5/8 281 28
SVR 40 1 5/8 25.0 281 28 503 464 351 57 41 51 231 183 188
2 1/8 281 34
SVR 50 2 3/8 40.8 131 N/A 819 755 581 93 67 84 376 299 306
2 5/8 131





 If you need more details for this product, please feel free to contact us.
