SVR50 Refrigerator Piston Pilot Solenoid Valve With 2-3/8 2-5/8 ODF Solder
US$ 50 - 100
MOQ: 5 Pieces
Key Specifications
Get Latest Price
Standard or Nonstandard:
Standard
Structure:
Other, Piston Pilot
Pressure:
High Pressure
Payment & Shipping
Payment Methods:
Port of Shipment:
Ningbo Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
SVR32/40 Refrigeration Piston Pilot Solenoid Valve With Cast Iron Body for EVR32 EVR40 With 1-3/8 1-5/8 2-1/8 ODF SolderUS$ 50 - 100MOQ: 5 Pieces -
SVR25 Refrigerator Brass Piston Pilot Solenoid Valve Replaced for EVR EVR25 With 24V 220VAC 230V Coil 1-3/8 1-5/8 ODF SolderUS$ 50 - 100MOQ: 5 Pieces
-
SVR High Pressure 220V AC Air Conditioner Solenoid Valve Replaced for EVR EVR20 EVR22 With 7/8 1-1/8 1-3/8 ODF SolderUS$ 50 - 100MOQ: 10 Pieces
-
SVR15 EVR15 High Pressure Diaphragm Brass Solenoid Valve With 24V 220VAC 220V AC Coil for R134a R22 Refrigerator Air Conditioner Quality ChoiceUS$ 20 - 50MOQ: 20 Pieces
-
SVR10 EVR10 Low Price Diaphragm Solenoid Valve With 220 230 Volt AC Coil 1/2 5/8 ODF Solder or SAE Flare for Air ConditioningUS$ 15 - 30MOQ: 50 Pieces
Standard or Nonstandard
Standard
Structure
Other, Piston Pilot
Pressure
High Pressure
Power
Solenoid
Material
Other, Cast Iron
Temperature of Media
Other, -35℃~105℃
Media
Other, Refrigerant
Port Size
2-1/4 2-5/8 ODF Solder
Place of Origin
Zhejiang, China
Model Number
SVR50
Brand Name
SANRONG
Application
General

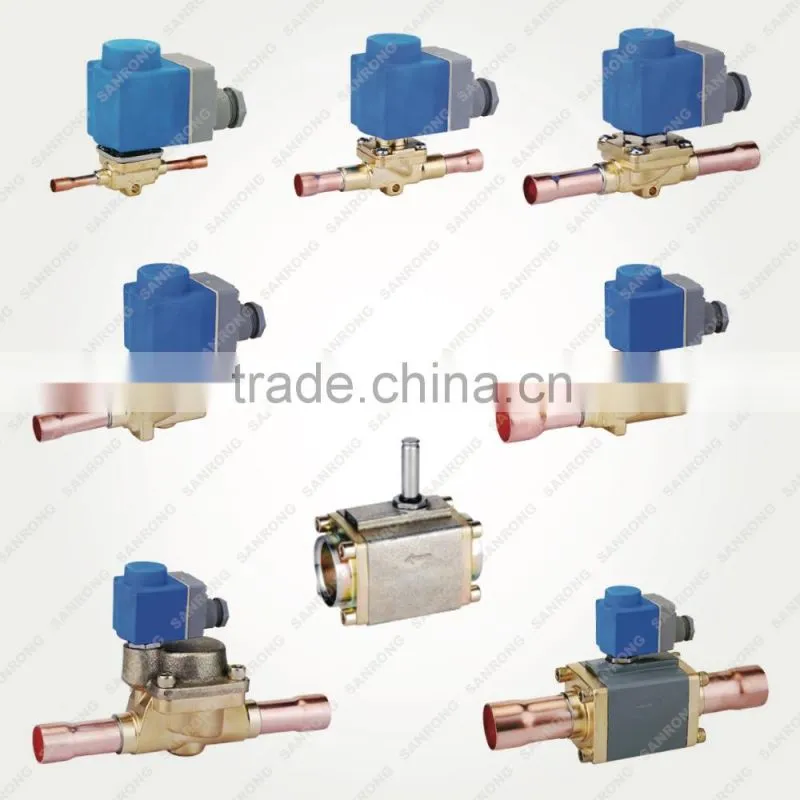

Sanrong SVR Solenoid Valve for refrigeration and air conditioning system

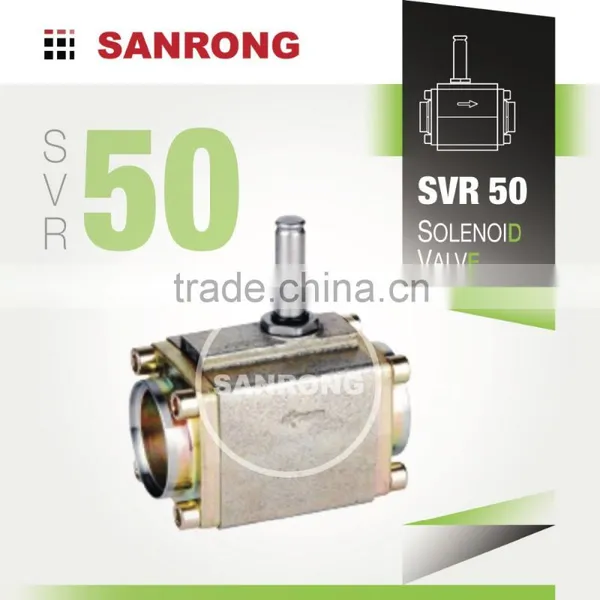

SVR50-19S 2-3/8" ODF, Cast Iron Body, Kv=40.8m^3/h
SVR50-21S 2-5/8" ODF, Cast Iron Body , Kv=40.8m^3/h
PRODUCT DISCRIPTION
SVR valves are normally closed direct or servo-operated solenoid valves for liquid, suction vapour and hot gas lines. They are suitable for condensing units and power packs in all refrigeration, freezing, air conditioning, heat pump applications and systems.
FEATURES
Compatible to all CFC, HCFC and HFC refrigerants
Standard ODF solder connections up to 2 1/8 in.
Available SAE flare connections up to 5/8 in. for SVR 3-10
Hot forged brass valve body for SVR 3-25, and cast iron body for SVR 40-50
Designed for media temperature up to 105°C
100% factory tested for both external and internal leaks
SPECIFICATIONS

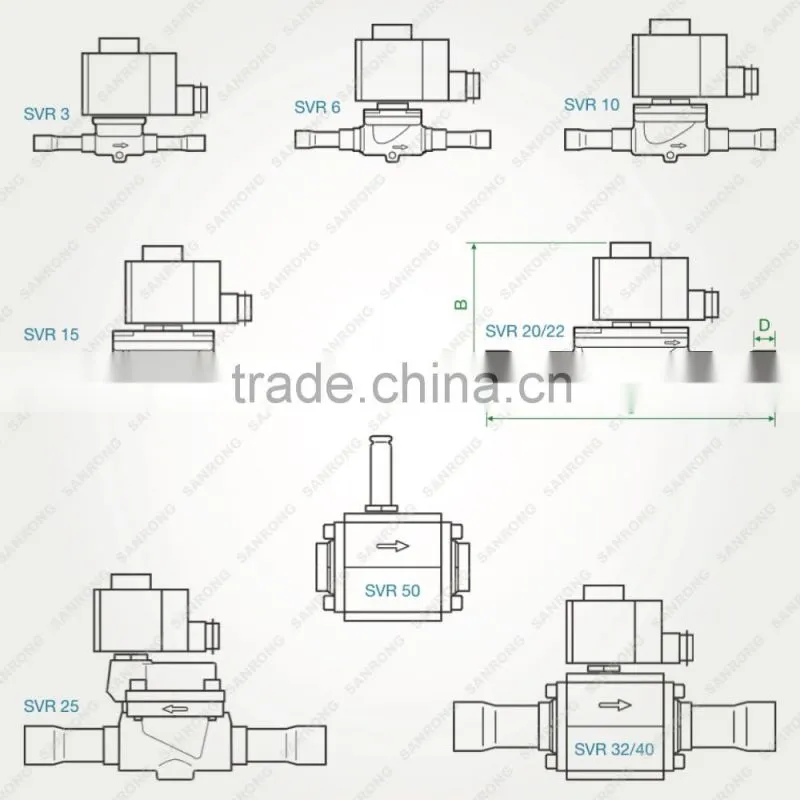

| Model | Conn. Size | Kv Factor (m³/h) | MWP (MPa) | Dimensions (mm) | Rated Capacity (kW) | |||||||||||
| Liquid | Suction Vapour | Hot Gas | ||||||||||||||
| A | B | C | D | R22 | R134a | R404A | R22 | R134a | R404A | R22 | R134a | R404A | ||||
| SVR 3 | 1/4 | 0.27 | 4.5 | 14 | 71 | 102 | 7 | 5 | 5 | 4 | N/A | N/A | N/A | 3 | 2 | 2 |
| 3/8 | 73 | 121 | 10 | |||||||||||||
| SVR 6 | 3/8 | 0.80 | 79 | 146 | 10 | 16 | 15 | 11 | 2 | 1 | 2 | 7 | 6 | 6 | ||
| 1/2 | 127 | 10 | ||||||||||||||
| SVR 10 | 1/2 | 1.90 | 3.5 | 16 | 79 | 127 | 10 | 38 | 35 | 27 | 4 | 3 | 4 | 18 | 14 | 14 |
| 5/8 | 160 | 12 | ||||||||||||||
| SVR 15 | 5/8 | 2.60 | 3.2 | 19 | 86 | 176 | 12 | 52 | 48 | 37 | 6 | 4 | 5 | 24 | 19 | 20 |
| 7/8 | 176 | 17 | ||||||||||||||
| SVR 20 | 7/8 | 5.00 | 20 | 90 | 191 | 17 | 101 | 93 | 70 | 11 | 8 | 10 | 46 | 37 | 38 | |
| 1 1/8 | 214 | 23 | ||||||||||||||
| SVR 22 | 1 3/8 | 6.00 | 281 | 25 | 121 | 111 | 84 | 14 | 10 | 12 | 55 | 44 | 45 | |||
| SVR 25 | 1 1/8 | 10.0 | 38 | 138 | 256 | 23 | 201 | 186 | 141 | 23 | 16 | 20 | 92 | 73 | 75 | |
| 1 3/8 | 287 | 25 | ||||||||||||||
| SVR 32 | 1 3/8 | 16.0 | 47 | 111 | 275 | 25 | 322 | 297 | 255 | 37 | 26 | 33 | 148 | 117 | 120 | |
| 1 5/8 | 281 | 28 | ||||||||||||||
| SVR 40 | 1 5/8 | 25.0 | 281 | 28 | 503 | 464 | 351 | 57 | 41 | 51 | 231 | 183 | 188 | |||
| 2 1/8 | 281 | 34 | ||||||||||||||
| SVR 50 | 2 3/8 | 40.8 | 131 | N/A | 819 | 755 | 581 | 93 | 67 | 84 | 376 | 299 | 306 | |||
| 2 5/8 | 131 | |||||||||||||||
If you need more details for this product, please feel free to contact us.
