Mining Machine Thickener for Solid-liquid Separation

1.Certificates:

2.General

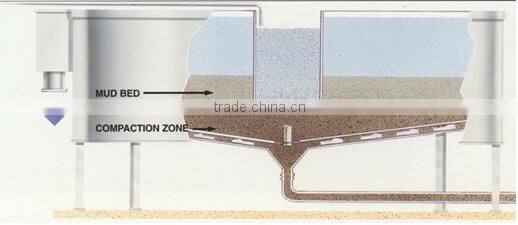

Different kinds of high-rate thickener that our company produces take the dense technology of British Sunny Group as the main part. Reference to other similar foreign advanced equipment technology, and combining with domestic exsiting industrial level of status quo, our company develops efficient, energy-saving dewatering equipment to realize solid-liquid separation relying on the settling characteristics of the material; The technical level has been increased greatly after recent years improvement. No matter the overall structure of the equipments or the material selection,design,processing and purchased parts,they have been more reasonale and mature; The drive unit of the high-rate thickener, the feed well design,manufacture(see detail in technical description) and hydraulic control system and other key parts have made great improvement, making the technical performance of equipments can compare with the foreign imported device;The central device of thickener(adopting hydraulic drive or planetary gearbox with electrical drive design and pinion)technology, automatic rake lifting technology, efficient tangent feed technoloy, feeding automatic dilution system technology, efficient thickener control technology, defoaming technology and device represent the international advanced level.

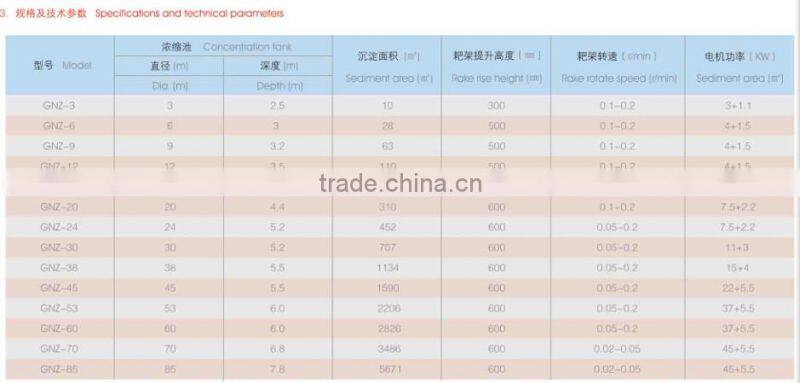

3.Specification

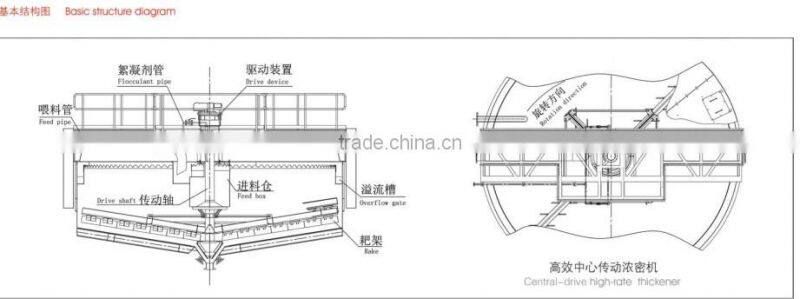

4.Structure

5. Main parts description

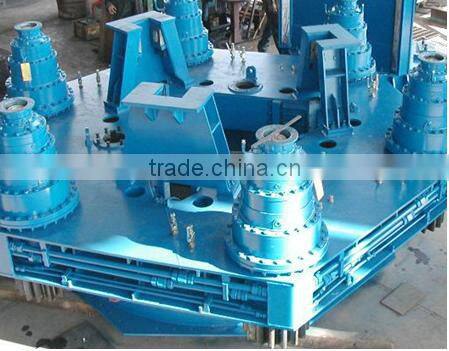

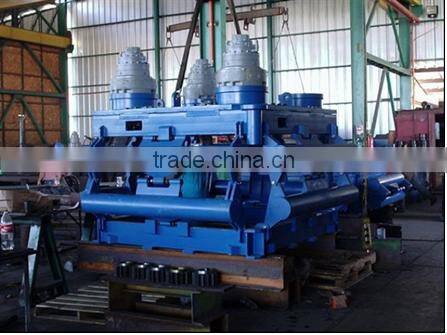

5.1 Main drive and rake lifting   device

The driving framework and pedestal is manufactured according to the standard of heavy-type transmission device to get enough strength and stability, so that the driving device and lifting device can operate stably and reliably.

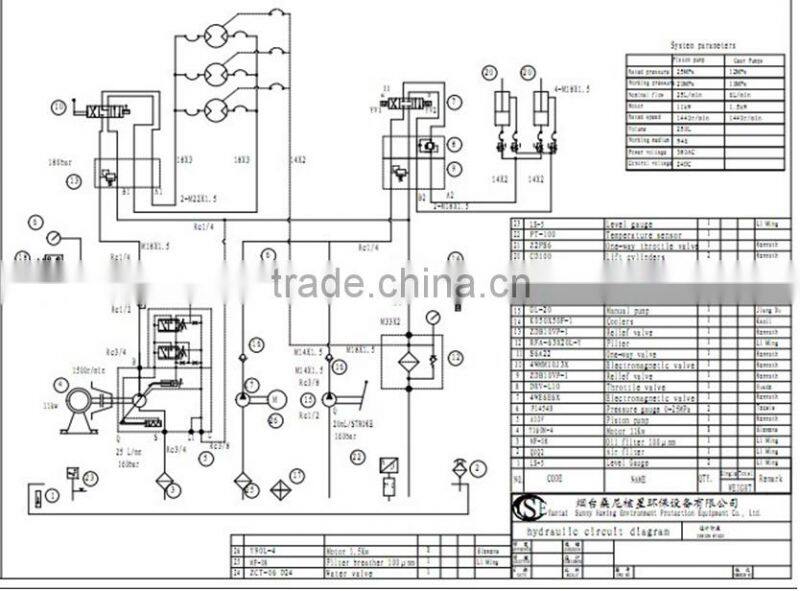

5.2 Hydraulic system diagram

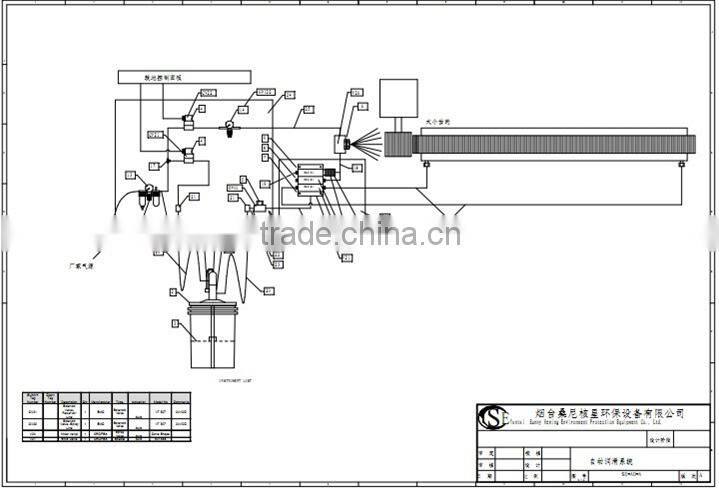

5.3 Automatic lubrication system diagram

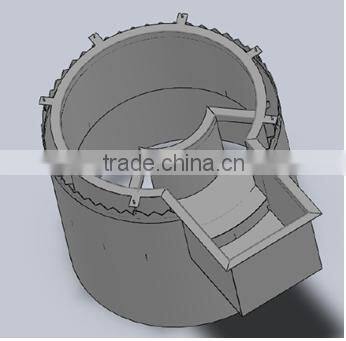

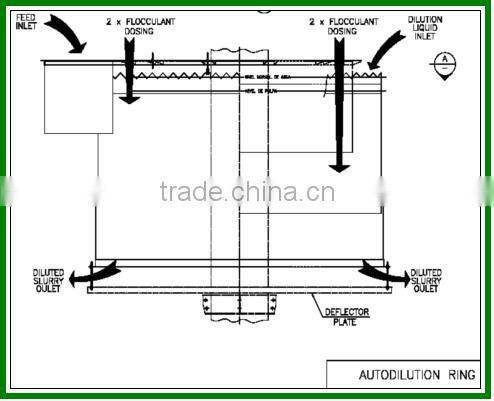

5.4 High-rate feed silo

6.Our perfect service

Test

Laboratory tests can be carried out in our laboratory; Based on the experimental results, we provide a process guarantee.SelectionAccording to the test results, and our past experience , we select the appropriate specifications and models thickener, in order to meet the technological requirements of each application.

Design

The selected equipment is prepared by computer-aided design according to the needs of users.

Manufacture

Our project engineers monitor the manufacturing process, so as to ensure that the quality of the equipment in all respects in accordance with ISO9001 certification standards.

Installation and commissioning

We need to provide complete installation and commissioning services, installation and commissioning guidance servicesProcess service and technical supportProcess consulting, technical support and services are provided by Yantai Sunny Environment Protection Equipment Co.,LTD.

Frequently Asked Questions:

1.Q:Are you a manufacturer or trading company

A: We are a manufacturer, we have rich experience  in solid liquid industry for more than 20 years.We are the Horizontal belt vacuum filter and TC ceramic disc vacuum filter,HVPF tower press filter leader of China.We are the solid liquid separation equipment standard drafter of China.There are more than 10000 sets our equipment are running all of the world.

2.Q:Where is your factory located? How to get there?

A: Our factory is located in C distict of Qixia Songshan development zone  Yantai City of Shandong Province,China. It is just half an hour from Yantai airport. We can pick you up at any time at there, we warm welcome you come to visit our factory at any time.

3.Q: Do you have  minimum order quantity request?

A: for spare parts we have no MOQ,but for whole set equipment of course 1 set is the minimum.

4.Q: Do you have  certificates?

A: Yes, we have CE, ISO,SGS.etc. certificates.

5.Q: Can you meet my special requirements for my products?

A: Yes, we have rich expeirence and we have a professional design team. We can provide differents drawings according to your requirements.

6. Q:How to buy your idea products?

  A:You just need provide us your slurry informations ,water sources, ground area (connect us for more details).Then will give a satisfy solution.

7. Q:How to pay?

  A: TT and L/C are acceptable and TT will be more appreciated. 50% deposit before producing, 50% balance before loading by TT.

8. Q:What is the delivery time?

  A: It depends on order quantities. Generally speaking, the delivery time will be within 4 to 6 weeks.

9. Q: How to pack the products?

  A: We use stuitable package for ocean shipment according to our experience. If you have special package requirements, we will pack as required.

10. Q: How to keep your equipments from corrosion?

A: We use differents consturction material for your differents material slurry,according to your slurry PH value.Normally,for painting we use the world-famous paint, like SigmaCoatings,PainBow,etc. What's more, we paint strictly according to the standard process.

11. Q: How do you produce your equipment ?

  A:We use high automatic machining technology  includes laser/plasma cutting, automatic welding,CNC cutting and bending machine,you can see the high-tech machinces in our company workshop everywhere.

12. Q:How to install after the equipments arriving destination?

A: We will arrange our engineers for you to guide installation and commissionning jobs.Meanwhile,we provide detailed illustrations to you.

13.Q:How to select the correct equipment size ?

A:We will send you a questionnaire about your material slurry,you just try to fill out it,then we will try to give you a suitable solution for you according to our experience,or you can send us some sample to do the tests.We can do the tests for free for you,we own a high-tech tests room in our plant.
