Home > Products > Filter Drier > Best SRK DCL DML Hermetic Steel Filter Drier, UL Solid Core Liquid Line Filter Drier, R410a R134a Alco ADK Emerson Filter Drier
Best SRK DCL DML Hermetic Steel Filter Drier, UL Solid Core Liquid Line Filter Drier, R410a R134a Alco ADK Emerson Filter Drier
US$ 2 - 10
/ Piece
100 Pieces(Min. Order)
- Ningbo Shanghai
You May Like
-
SR EK163 EK164 EK165 EK304 EK305 EK307 EK415 Liquid Line Air Conditioning Filter-Drier, Alco EK One-Way Filter Drier
-
SR EK032 EK033 EK052 EK053 EK082 EK083 EK084 Steel Liquid Line Filter-Drier, Alco One Way Filter Drier
-
SR EK415s EK417s EK419s EK757s EK759s Steel Liquid Line Filter Drier, Alco Molecular Sieve Emerson Filter Drier
-
SR 415s 417s 419s 757s 759s Steel Liquid Line Filter Drier, Alco EK Hermetic Filter Drier for Air Conditioning
-
SR 304s 305s 307s 309s Steel Liquid Line Filter-Drier for Air Conditioning, EK Emerson Alco Filter Drier for Refrigeration
-
SR 165 304 305 415 Steel Liquid Line Filter Drier With UL Approval, EK Filter-Drier, Refrigeration Filter Drier
Product Details
| Place of Origin | Zhejiang, China | Brand Name | SANRONG | |
| Model Number | SRK ADK DCL DML | Type | Filter Drier | |
| Application | Refrigeration Parts | Certification | UL |
Product Description

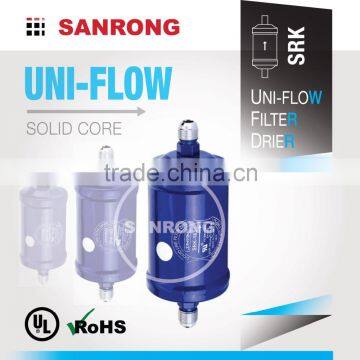

Sanrong SRK One-Way Hermetic Steel Liquid Line Filter Drier with Solid Core
used for general refrigeration & air conditioning systems with CFC, HCFC, and HFC refrigerants
PRODUCT DESCRIOTION
The SRK is a solid core, liquid line hermetic filter drier for use with CFC, HCFC, and HFC refrigerants. They are designed to remove moisture, acids and solid particles that can lead to premature component failure and harmful chemical reactions.
FEATURES
Available 3 to 41 cubic inches size
Compatible to R22, R134a, R410A, R407C, etc.
Red copper ODF solder or nickel plated SAE flare fittings
Filter pad and mesh to remove solid particles
Power paint exterior coating surpasses 500-hour ASTM neutral salt spray test to resist corrosion
Max. working pressure of 4.5MPa / 650psig
UL, RoHS approved
SPECIFICATIONS

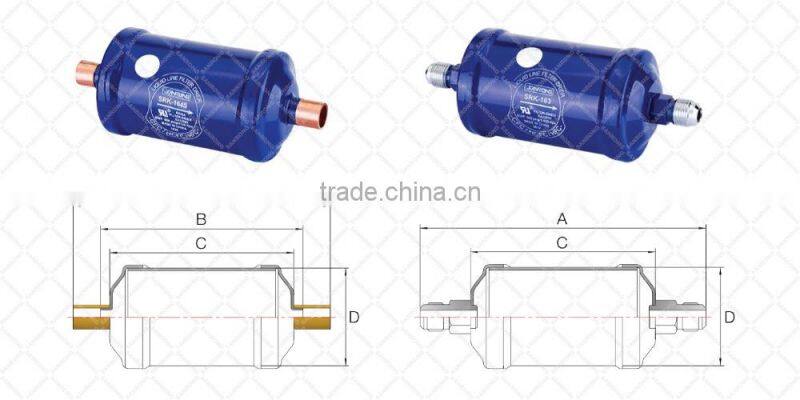

| Model | Conn. Size (inches) | Dimensions (inches) | Flow Capacity (tons @ 1psi ΔP) | ||||
| A | B | C | D | R22 | R407C | ||
| SRK-032 | 1/4 SAE | 4.38 | - | 2.56 | 1.63 | 2.1 | 1.9 |
| SRK-032S | 1/4 ODF | 3.88 | 3.13 | 2.5 | 2.3 | ||
| SRK-033 | 3/8 SAE | 4.68 | - | 2.9 | 2.7 | ||
| SRK-033S | 3/8 ODF | 4.06 | 3.18 | 3.3 | 3.0 | ||
| SRK-052 | 1/4 SAE | 4.18 | - | 3.00 | 2.64 | 2.2 | 2.0 |
| SRK-052S | 1/4 ODF | 4.44 | 3.69 | 3.1 | 2.9 | ||
| SRK-053 | 3/8 SAE | 5.13 | - | 4.0 | 3.7 | ||
| SRK-053S | 3/8 ODF | 4.50 | 3.36 | 4.9 | 4.5 | ||
| SRK-082 | 1/4 SAE | 5.63 | - | 3.80 | 2.2 | 2.0 | |
| SRK-082S | 1/4 ODF | 5.25 | 4.50 | 3.4 | 3.1 | ||
| SRK-083 | 3/8 SAE | 5.94 | - | 4.7 | 4.3 | ||
| SRK-083S | 3/8 ODF | 5.31 | 4.44 | 4.6 | 4.2 | ||
| SRK-084 | 1/2 SAE | 6.19 | - | 7.3 | 6.7 | ||
| SRK-084S | 1/2 ODF | 5.38 | 4.38 | 7.6 | 7.0 | ||
| SRK-163 | 3/8 SAE | 6.88 | - | 4.75 | 4.8 | 4.4 | |
| SRK-163S | 3/8 ODF | 6.25 | 5.38 | 5.3 | 4.9 | ||
| SRK-164 | 1/2 SAE | 7.06 | - | 9.0 | 8.3 | ||
| SRK-164S | 1/2 ODF | 6.31 | 5.31 | 9.3 | 8.6 | ||
| SRK-165 | 5/8 SAE | 7.50 | - | 12.8 | 11.8 | ||
| SRK-165S | 5/8 ODF | 6.56 | 5.31 | 14.2 | 13.1 | ||
| SRK-167S | 7/8 ODF | 7.13 | 5.63 | 17.3 | 16.0 | ||
| SRK-304 | 1/2 SAE | 9.88 | - | 7.50 | 3.15 | 9.3 | 8.6 |
| SRK-304S | 1/2 ODF | 9.06 | 8.06 | 9.5 | 8.8 | ||
| SRK-305 | 5/8 SAE | 10.31 | - | 15.0 | 13.8 | ||
| SRK-305S | 5/8 ODF | 9.31 | 8.06 | 15.7 | 14.5 | ||
| SRK-307S | 7/8 ODF | 9.88 | 8.35 | 18.9 | 17.4 | ||
| SRK-309S | 1 1/8 ODF | 10.42 | 8.50 | 27.0 | 24.9 | ||
| SRK-415 | 5/8 SAE | 10.42 | - | 7.25 | 3.66 | 16.9 | 15.6 |
| SRK-415S | 5/8 ODF | 9.44 | 8.19 | 17.9 | 16.5 | ||
| SRK-417S | 7/8 ODF | 9.88 | 8.38 | 22.0 | 20.3 | ||
| SRK-419S | 1 1/8 ODF | 10.38 | 8.56 | 27.3 | 25.2 | ||
If you need more details about this product, please feel free to contact us.
