Product Details
| Place of Origin | Zhejiang, China | Brand Name | SANRONG | |
| Model Number | SRS-052 ~ 305 | Type | Filter Drier | |
| Application | Refrigeration Parts | Certification | UL |
Product Description
Sanrong SRS Liquid Line Bi-Flow Filter Drier
used for heat pump applications with CFC, HCFC, and HFC refrigerants
The SRS is a solid core, bi-flow, liquid line hermetic filter drier for heat pump applications for use with CFC, HCFC, and HFC refrigerants. They are designed to remove moisture, acids and solid particles that can lead to premature component failure and harmful chemical reactions regardless of whether the air-conditioning demand is for heating or cooling.
Available 5 to 30 cubic inches size
Compatible to R22, R134a, R410A, R407C, etc.
Internal check valves allow filtration in either direction with low pressure drop, eliminates need for external check valves
High moisture absorption, acid removal and filtering capacity
Filter pad and mesh to remove solid particles
Power paint exterior coating surpasses 500-hour ASTM neutral salt spray test to resist corrosion
Max. working pressure of 4.5MPa / 650psig
UL, RoHS approved

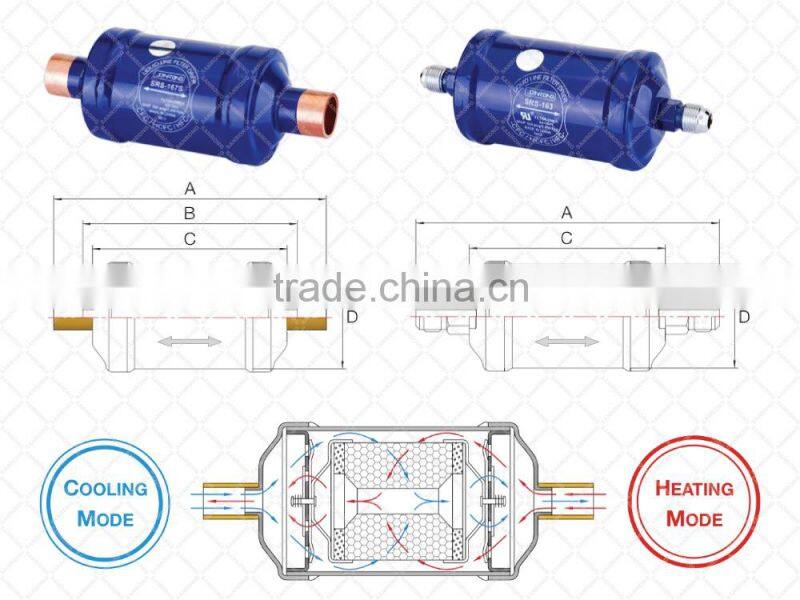

| Model | Conn. Size (inches) | Dimensions (inches) | Flow Capacity (tons @ 1psi ΔP) | ||||
| A | B | C | D | R22 | R407C | ||
| SRS-052 | 1/4 SAE | 4.97 | - | 3.08 | 2.50 | 1.6 | 1.6 |
| SRS-052S | 1/4 ODF | 4.59 | 3.32 | 2.2 | 2.2 | ||
| SRS-053 | 3/8 SAE | 5.28 | - | 3.5 | 3.4 | ||
| SRS-053S | 3/8 ODF | 4.64 | 3.32 | 3.0 | 3.9 | ||
| SRS-083 | 3/8 SAE | 6.09 | - | 3.90 | 4.5 | 4.4 | |
| SRS-083S | 3/8 ODF | 5.39 | 4.15 | 5.1 | 5.0 | ||
| SRS-084 | 1/2 SAE | 6.26 | - | 6.4 | 6.3 | ||
| SRS-084S | 1/2 ODF | 5.47 | 4.18 | 6.7 | 6.6 | ||
| SRS-085 | 5/8 SAE | 6.68 | - | 7.2 | 7.0 | ||
| SRS-085S | 5/8 ODF | 5.71 | 4.23 | 8.1 | 7.9 | ||
| SRS-163 | 3/8 SAE | 6.87 | - | 4.69 | 4.6 | 4.5 | |
| SRS-163S | 3/8 ODF | 6.18 | 4.94 | 5.2 | 5.1 | ||
| SRS-164 | 1/2 SAE | 7.05 | - | 7.7 | 7.6 | ||
| SRS-164S | 1/2 ODF | 6.26 | 4.97 | 8.1 | 7.9 | ||
| SRS-165 | 5/8 SAE | 7.46 | - | 8.3 | 8.1 | ||
| SRS-165S | 5/8 ODF | 6.50 | 5.02 | 8.7 | 8.5 | ||
| SRS-167S | 7/8 ODF | 6.81 | 5.04 | 16.0 | 15.7 | ||
| SRS-305 | 5/8 SAE | 10.24 | - | 7.48 | 3.01 | 10.3 | 10.1 |
| SRS-305S | 5/8 ODF | 9.53 | 7.87 | 14.2 | 13.9 | ||
| SRS-306S | 3/4 ODF | 16.0 | 15.7 | ||||
| SRS-307S | 7/8 ODF | 16.7 | 16.4 | ||||
| SRS-309S | 1 1/8 ODF | 18.0 | 17.5 | ||||
If you need more details about this product, please feel free to contact us.
