Sanrong SRA Filter Drier Shell With UL Approval, DCR Replaceable Core Filter Drier, STAS ADKS Take-Apart Filter Shell
US$ 20 - 40
MOQ: 16 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
SANRONG
Model Number:
SRA DCR STAS 485 487 489 4811 4813 4817 4821 4825
Payment & Shipping
Payment Methods:
Port of Shipment:
Ningbo Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Best SRK DCL DML Hermetic Steel Filter Drier, UL Solid Core Liquid Line Filter Drier, R410a R134a Alco ADK Emerson Filter DrierUS$ 2 - 10MOQ: 100 Pieces -
SR EK163 EK164 EK165 EK304 EK305 EK307 EK415 Liquid Line Air Conditioning Filter-Drier, Alco EK One-Way Filter DrierUS$ 2 - 10MOQ: 100 Pieces
-
SR EK032 EK033 EK052 EK053 EK082 EK083 EK084 Steel Liquid Line Filter-Drier, Alco One Way Filter DrierUS$ 2 - 10MOQ: 100 Pieces
-
SR EK415s EK417s EK419s EK757s EK759s Steel Liquid Line Filter Drier, Alco Molecular Sieve Emerson Filter DrierUS$ 2 - 10MOQ: 100 Pieces
-
SR 415s 417s 419s 757s 759s Steel Liquid Line Filter Drier, Alco EK Hermetic Filter Drier for Air ConditioningUS$ 2 - 10MOQ: 100 Pieces
Place of Origin
Zhejiang, China
Brand Name
SANRONG
Model Number
SRA DCR STAS 485 487 489 4811 4813 4817 4821 4825
Type
Filter Drier
Application
Refrigeration Parts
Certification
UL
Sanrong SRA Take-Apart Filter Drier Shell for Liquid Line & Suction Line
designed for commercial refrigeration & air conditioning systems with CFC, HCFC, and HFC refrigerants
PRODUCT DESCRIOTION
The SRA is a replacable core filter drier shell for use in large commercial air conditioning and refrigeration systems. The internal assembly allows the use of all kinds of Sanrong’s replacable cores depending on the system requirements or application.
FEATURES
Compatible to R22, R134a, R410A, R407C, etc.
High moisture absorption, acid removal and filtering capacity
Power paint exterior coating surpasses 500-hour ASTM neutral salt spray test to resist corrosion
Slotted cover and unique internal hardware for hassle-free installation
Sturdy steel shells for long service life
Carbon finer reinforced PTFE gasket
Solid copper full-flow connections for low pressure drop
Optional 1/4” NPT pressure tapping
Max. working pressure of 4.5MPa / 650psig
UL, RoHS approved

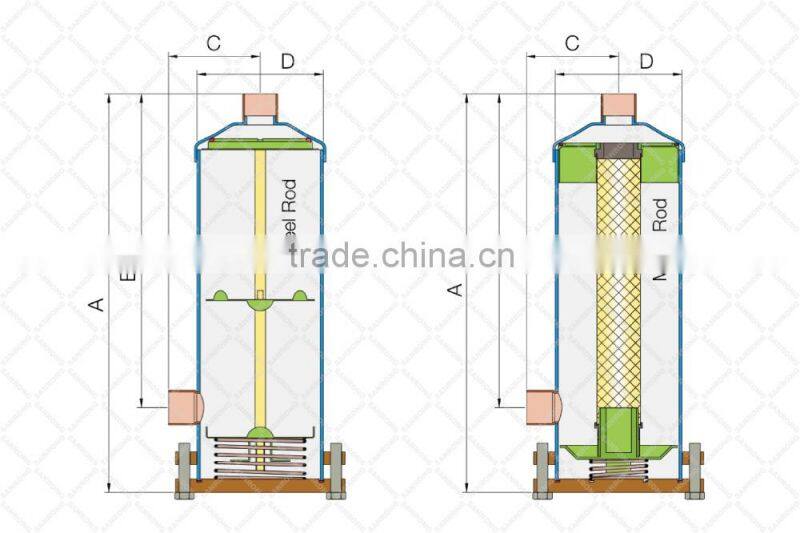

SPECIFICATIONS
| Models | Conn. Size (inches) | No. of Cores |
Dimensions (inches) |
Liquid Flow Capacity (tons @ 1psi ΔP) |
||||||
| Qty x Size | A | B | C | D | R22 | R134a | R404A | R407C | ||
| SRA-485 | 5/8 ODF | 1 x 48in³ | 8.82 | 5.41 | 3.15 | 4.49 | 21 | 21 | 15 | 21 |
| SRA-487 | 7/8 ODF | 8.98 | 5.57 | 3.31 | 41 | 38 | 27 | 39 | ||
| SRA-489 | 1 1/8 ODF | 8.94 | 5.53 | 3.27 | 58 | 53 | 38 | 56 | ||
| SRA-4811 | 1 3/8 ODF | 9.19 | 5.79 | 3.52 | 81 | 75 | 53 | 78 | ||
| SRA-4813 | 1 5/8 ODF | 9.21 | 5.81 | 3.54 | 89 | 81 | 58 | 85 | ||
| SRA-4817 | 2 1/8 ODF | 9.41 | 6.12 | 3.50 | 101 | 93 | 66 | 97 | ||
| SRA-4821 | 2 5/8 ODF | 9.53 | 5.65 | 4.21 | 105 | 97 | 68 | 101 | ||
| SRA-4825 | 3 1/8 ODF | 10.00 | 5.85 | 4.21 | 119 | 110 | 77 | 114 | ||
| SRA-967 | 7/8 ODF | 2x48in³ | 14.69 | 11.28 | 3.31 | 45 | 42 | 27 | 43 | |
| SRA-969 | 1 1/8 ODF | 14.65 | 11.24 | 3.27 | 71 | 65 | 42 | 68 | ||
| SRA-9611 | 1 3/8 ODF | 14.90 | 11.50 | 3.52 | 87 | 80 | 54 | 83 | ||
| SRA-9613 | 1 5/8 ODF | 14.92 | 11.52 | 3.54 | 100 | 92 | 58 | 95 | ||
| SRA-9617 | 2 1/8 ODF | 15.12 | 11.71 | 3.50 | 104 | 96 | 68 | 100 | ||
| SRA-9621 | 2 5/8 ODF | 15.24 | 11.18 | 4.21 | 109 | 101 | 71 | 105 | ||
| SRA-9625 | 3 1/8 ODF | 15.35 | 11.20 | 4.21 | 125 | 116 | 81 | 120 | ||
| SRA-1449 | 1 1/8 ODF | 3x48in³ | 20.28 | 16.87 | 3.27 | 72 | 66 | 47 | 69 | |
| SRA-14411 | 1 3/8 ODF | 20.53 | 17.13 | 3.52 | 100 | 92 | 65 | 96 | ||
| SRA-14413 | 1 5/8 ODF | 20.55 | 17.15 | 3.54 | 101 | 93 | 66 | 97 | ||
| SRA-14417 | 2 1/8 ODF | 20.67 | 17.38 | 3.50 | 120 | 110 | 78 | 115 | ||
| SRA-19211 | 1 3/8 ODF | 4x48in³ | 26.44 | 23.03 | 3.52 | 102 | 94 | 67 | 98 | |
| SRA-19213 | 1 5/8 ODF | 26.46 | 23.05 | 3.54 | 113 | 103 | 74 | 108 | ||
| SRA-19217 | 2 1/8 ODF | 26.57 | 23.29 | 3.50 | 123 | 113 | 80 | 117 | ||
| SRA-19221 | 2 5/8 ODF | 26.85 | 23.44 | 4.21 | 131 | 121 | 85 | 126 | ||
| SRA-20034 | 4 1/4 ODF | 2x100in³ | 17.95 | 12.64 | 5.28 | 6 | 149 | 138 | 98 | 146 |
| SRA-30013 | 1 5/8 ODF | 3x100in³ | 23.98 | 19.25 | 4.30 | 110 | 102 | 73 | 108 | |
| SRA-30017 | 2 1/8 ODF | 24.13 | 19.41 | 4.50 | 160 | 148 | 107 | 157 | ||
| SRA-30021 | 2 5/8 ODF | 24.57 | 19.88 | 4.97 | 168 | 155 | 111 | 165 | ||
| SRA-30025 | 3 1/8 ODF | 24.57 | 19.88 | 4.97 | 182 | 168 | 120 | 178 | ||
| SRA-30034 | 4 1/4 ODF | 24.25 | 18.94 | 5.28 | 198 | 183 | 131 | 194 | ||
| SRA-40017 | 2 1/8 ODF | 4x100in³ | 31.81 | 27.09 | 4.50 | 170 | 157 | 114 | 167 | |
| SRA-40021 | 2 5/8 ODF | 32.24 | 27.52 | 4.97 | 180 | 166 | 120 | 177 | ||
If you need more details about this product, please feel free to contact us.
