Place of Origin Zhejiang, China
Brand Name SANRONG
Model Number SRA DCR STAS 4825 4821 4817 4813 967 969 9611
Type Filter Drier
Application Refrigeration Parts
Certification UL

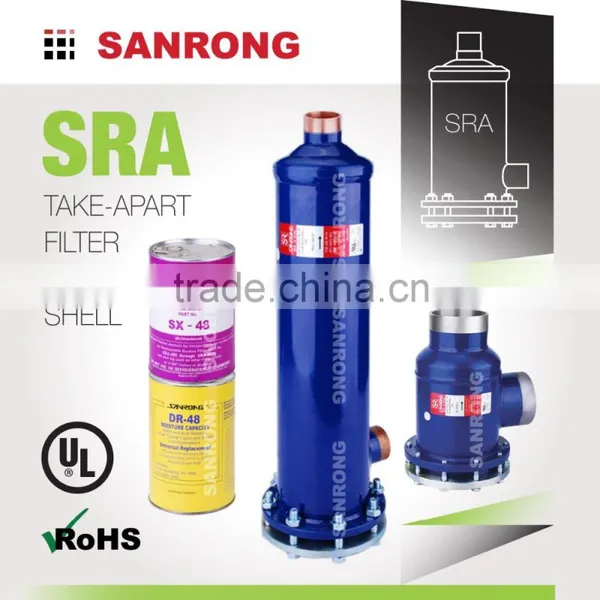

Sanrong SRA Take-Apart Filter Drier Shell for Liquid Line & Suction Line

designed for commercial refrigeration & air conditioning systems with CFC, HCFC, and HFC refrigerants

PRODUCT DESCRIOTION

The SRA is a replacable core filter drier shell for use in large commercial air conditioning and refrigeration systems. The internal assembly allows the use of all kinds of Sanrong’s replacable cores depending on the system requirements or application.

FEATURES

  • Compatible to R22, R134a, R410A, R407C, etc.

  • High moisture absorption, acid removal and filtering capacity

  • Power paint exterior coating surpasses 500-hour ASTM neutral salt spray test to resist corrosion

  • Slotted cover and unique internal hardware for hassle-free installation

  • Sturdy steel shells for long service life

  • Carbon finer reinforced PTFE gasket

  • Solid copper full-flow connections for low pressure drop

  • Optional 1/4” NPT pressure tapping

  • Max. working pressure of 4.5MPa / 650psig

  • UL, RoHS approved

SPECIFICATIONS
Sanrong SRA Refrigeration Liquid Line Replaceable Solid Core Filter Drier Shell, Suction Replaceable Filter Element Shell Housin

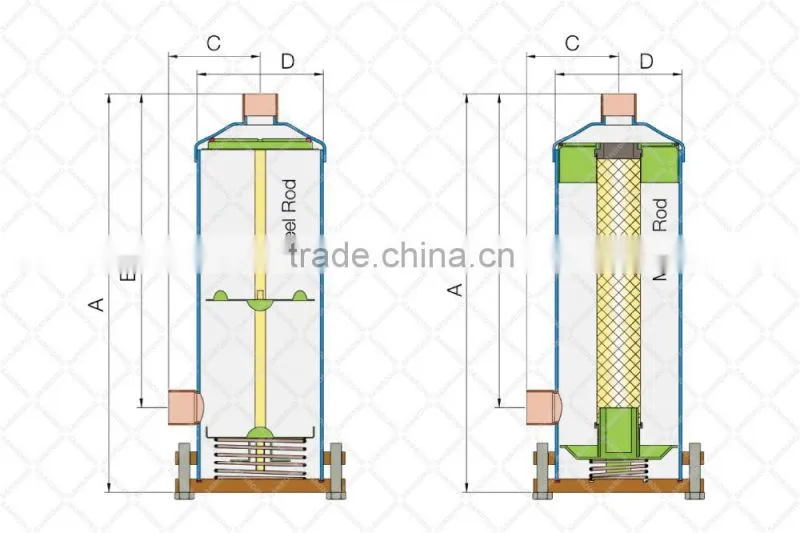

  Models Conn. Size  (inches) No. of Cores

Dimensions

(inches)

Liquid Flow Capacity

(tons @ 1psi ΔP)
Qty x Size A B C D R22 R134a R404A R407C
  SRA-485 5/8 ODF  1 x 48in³ 8.82 5.41 3.15 4.49 21 21 15 21
  SRA-487 7/8 ODF  8.98 5.57 3.31 41 38 27 39
  SRA-489 1 1/8 ODF  8.94 5.53 3.27 58 53 38 56
  SRA-4811 1 3/8 ODF  9.19 5.79 3.52 81 75 53 78
  SRA-4813 1 5/8 ODF  9.21 5.81 3.54 89 81 58 85
  SRA-4817 2 1/8 ODF  9.41 6.12 3.50 101 93 66 97
  SRA-4821 2 5/8 ODF  9.53 5.65 4.21 105 97 68 101
  SRA-4825 3 1/8 ODF  10.00 5.85 4.21 119 110 77 114
  SRA-967 7/8 ODF  2x48in³ 14.69 11.28 3.31 45 42 27 43
  SRA-969 1 1/8 ODF  14.65 11.24 3.27 71 65 42 68
  SRA-9611 1 3/8 ODF  14.90 11.50 3.52 87 80 54 83
  SRA-9613 1 5/8 ODF  14.92 11.52 3.54 100 92 58 95
  SRA-9617 2 1/8 ODF  15.12 11.71 3.50 104 96 68 100
  SRA-9621 2 5/8 ODF  15.24 11.18 4.21 109 101 71 105
  SRA-9625 3 1/8 ODF  15.35 11.20 4.21 125 116 81 120
  SRA-1449 1 1/8 ODF  3x48in³ 20.28 16.87 3.27 72 66 47 69
  SRA-14411 1 3/8 ODF  20.53 17.13 3.52 100 92 65 96
  SRA-14413 1 5/8 ODF  20.55 17.15 3.54 101 93 66 97
  SRA-14417 2 1/8 ODF  20.67 17.38 3.50 120 110 78 115
  SRA-19211 1 3/8 ODF  4x48in³ 26.44 23.03 3.52 102 94 67 98
  SRA-19213 1 5/8 ODF  26.46 23.05 3.54 113 103 74 108
  SRA-19217 2 1/8 ODF  26.57 23.29 3.50 123 113 80 117
  SRA-19221 2 5/8 ODF  26.85 23.44 4.21 131 121 85 126
  SRA-20034 4 1/4 ODF  2x100in³ 17.95 12.64 5.28 6 149 138 98 146
  SRA-30013 1 5/8 ODF  3x100in³ 23.98 19.25 4.30 110 102 73 108
  SRA-30017 2 1/8 ODF  24.13 19.41 4.50 160 148 107 157
  SRA-30021 2 5/8 ODF  24.57 19.88 4.97 168 155 111 165
  SRA-30025 3 1/8 ODF  24.57 19.88 4.97 182 168 120 178
  SRA-30034 4 1/4 ODF  24.25 18.94 5.28 198 183 131 194
  SRA-40017 2 1/8 ODF  4x100in³ 31.81 27.09 4.50 170 157 114 167
  SRA-40021 2 5/8 ODF  32.24 27.52 4.97 180 166 120 177



 If you need more details about this product, please feel free to contact us.
