PBF Horizontal Vacuum Belt Filter

Horizontal Belt Filter equipment introduce:

Series PBF continous horizonal vacuum belt filter isthe high automatic new-type machine. The filter use the filtration cloth or the net as the filtration medium. Under the working of the slurry's gravity and the vacuum suction, the solid-liquid seperation can be achieved easily. Beacause the filter can be useful for many diffenrent concentration slurry and the character of the high efficiency, it has been priorly adoptly by many industries.

Technical characteriatics

1. The process of the feeding, filtering, washing, discharging and the regenerating can be achieved efficiently and automatically.

2. It can wash slurry by the methods of multistage current or countercurrent. The filtration liquor and the washing liquor can be collected separately.

3. It can filter a thin layer cake quickly for the hard filtration and the high viscosity slurry.

4. It is flexible to assemble equipment because of the modular structure.

5. It is convenient to do the remote and spot control for the PLC.

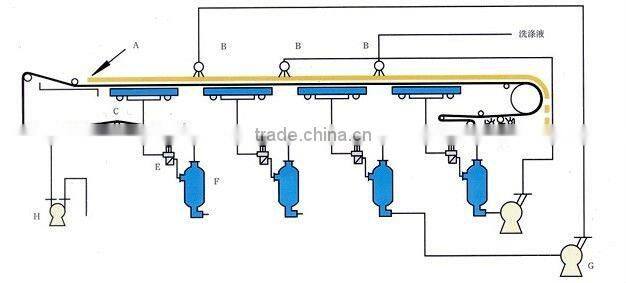

Washing device

Adopts the craft water to spray the filtration cloth and matched with the vacuum sucker seal box. Therefore, it can guarantee the jobsite cleanly. The nozzle made by American sprayer company can guarantee the washing effect well.

Material spraying craft

Adopts the countercurrent washing device or the spray washing device. According to the character of the material and the craft of the requirement, it can choose the two methods of the current washing or the countercurrent washing and make the washing more thoroughly.

Deviation-rectifying mechanism

Under the working of the cylinder or the air-bag, achieve correcting the deviation of the cloth and make sure the cloth run correctly.

Control system

Adopts remote control and scene alternately control, facilitated the operation work, is advantageous for implementing nobody operation.
