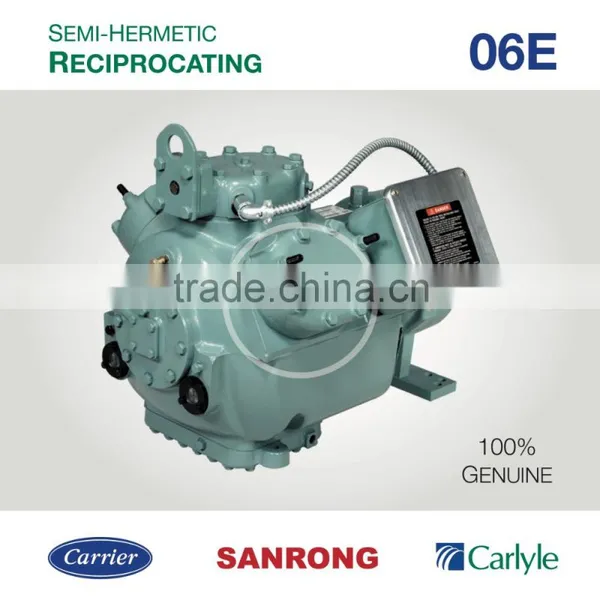

06EB265310 06E6265610 06E6265 06EB265 Carrier Carlyle 06E Semi-Hermetic Reciprocating Air Conditioner Compressor
US$ 1,000 - 10,000
MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
United States
Brand Name:
Carrier Carlyle
Model Number:
06E6265, 06EB265
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Best Carrier Carlyle 5H40 5H46 Marine Refrigeration Open-Drive Reciprocating Compressor Quality ChoiceUS$ 10,000 - 15,000MOQ: 1 Piece -
New 06N 06NA 06NW 06NW2300S5NA Carrier Twin Screw Compressor for 30HXC Chiller Refrigeration Air ConditioningUS$ 7,500 - 15,000MOQ: 1 Piece
-
Full New Carrier 5F 5F40 Semi-Hermetic Open-Drive Reciprocating Compressor for Marine Industrial Refrigeration Air ConditioningUS$ 10,000 - 15,000MOQ: 1 Piece
-
Carrier 5F 5F20 5F30 5F40 5F60 Open-Drive Reciprocating Compressor for R134A R22 R407C R404A Marine Transport Refrigeration Quality ChoiceUS$ 10,000 - 15,000MOQ: 1 Piece
-
Full New Carrier 134a 5H60 Refrigeration Open-Drive Reciprocating Compressor, Carlyle 5F R134a Marine Refrigerator CompressorUS$ 10,000 - 15,000MOQ: 1 Piece
Place of Origin
United States
Brand Name
Carrier Carlyle
Model Number
06E6265, 06EB265
Type
Refrigeration Compressor
Application
Refrigeration Parts
Certification
UL
PRODUCT DESCRIOTION
Carlyle 06D/E semi-hermetic compressors are ideally suited for commercial refrigeration, air conditioning, process cooling, and environmental chambers. They are extremely flexible and may be used with many of the new HFC refrigerants such as R-507, R-404A, R-407C and R-134a, in addition to the conventional refrigerants (R-12, R-22, and R-502). The compressors may be operated at 50 or 60 hertz and are UL, CE, CSA, and ISO 9002 approved. Many of the prominent features of the 06D/E compressors are listed below.
FEATURES
High-flow, automatically reversible oil pump provides positive-displacement oil lubrication.
Crankcase venting system equalizes pressure during startup and assures oil return to sump.
Oversize sump holds extra oil in crankcase to prevent levels dropping below safe lubrication range during flooded starts.
Contoured pistons lower cylinder clearances to increase compressor capacity and efficiency.
High-efficiency valves provide increased refrigerant flow and lower pressure drops.
Electronic oil-pressure switch.
SPECIFICATIONS
| MODEL | HP | CFM @ 1750 RPM | SUCTION TEMPERATURE RANGE (DEGREES F) | CYL NO | BORES (INCHES) | STROKE (INCHES) | OIL CHARGE (PINTS) | NET WEIGHT (LBS) | |||||
| R502/R404A/R507 | R12/R134a | R22 | |||||||||||
| MIN | MAX | MIN | MAX | MIN | MAX | ||||||||
| 06DR109 | 2.0 | 8.7 | -40 | 0 | -10 | 55 | -35 | 0 | 2 | 2.00 | 1-3/8 | 3.00 | 160 |
| 06DM808 | 3.0 | 8.0 | 0 | 50 | – | – | 0 | 55 | 2 | 2.00 | 1-1/4 | 3.00 | 160 |
| 06DR013 | 3.0 | 13.1 | -40 | 0 | -10 | 55 | -35 | 0 | 4 | 2.00 | 1 | 4.50 | 230 |
| 06DM313 | 5.0 | 13.1 | 0 | 50 | – | – | 0 | 55 | 4 | 2.00 | 1 | 4.50 | 235 |
| 06DR316 | 5.0 | 15.9 | -40 | 25 | -10 | 55 | -35 | 25 | 4 | 2.00 | 1-1/4 | 4.50 | 235 |
| 06DM316 | 5.0 | 15.9 | 0 | 25 | – | – | 0 | 45 | 4 | 2.00 | 1-1/4 | 4.50 | 235 |
| 06DR718 | 5.0 | 18.3 | -40 | 0 | -10 | 55 | -35 | 0 | 4 | 2.00 | 1-7/16 | 5.50 | 250 |
| 06DA818 | 6.5 | 18.3 | 0 | 50 | – | – | 0 | 55 | 4 | 2.00 | 1-7/16 | 5.50 | 250 |
| 06DR820 | 6.5 | 20.0 | -40 | 40 | -10 | 55 | -35 | 45 | 4 | 2.00 | 1-9/16 | 5.50 | 260 |
| 06DR724 | 6.5 | 23.9 | -40 | 25 | -10 | 55 | -35 | 45 | 6 | 2.00 | 1-1/4 | 8.00 | 310 |
| 06DR725 | 6.5 | 23.9 | -40 | 25 | -10 | 55 | -35 | 45 | 6 | 2.00 | 1-1/4 | 8.00 | 310 |
| 06DA825 | 7.5 | 23.9 | 0 | 50 | – | – | 0 | 55 | 6 | 2.00 | 1-1/4 | 8.00 | 315 |
| 06DA824 | 7.5 | 23.9 | 0 | 50 | – | – | 0 | 55 | 6 | 2.00 | 1-1/4 | 8.00 | 310 |
| 06DR228 | 7.5 | 28.0 | -40 | 25 | -10 | 55 | -35 | 45 | 6 | 2.00 | 1-15/32 | 8.00 | 315 |
| 06DA328 | 10.0 | 28.0 | 0 | 50 | – | – | 0 | 55 | 6 | 2.00 | 1-15/32 | 8.00 | 315 |
| 06DR337 | 10.0 | 37.1 | -40 | 25 | -10 | 55 | -35 | 45 | 6 | 2.00 | 1-15/16 | 8.00 | 325 |
| 06DM337 | 10.0 | 37.1 | 0 | 25 | – | – | 0 | 45 | 6 | 2.00 | 1-15/16 | 8.00 | 325 |
| 06DA537 | 15.0 | 37.1 | 0 | 50 | – | – | 0 | 55 | 6 | 2.00 | 1-15/16 | 8.00 | 325 |
| 06DR541 | 15.0 | 41.0 | -40 | 25 | -10 | 55 | -35 | 25 | 6 | 2.00 | 2.15 | 8.00 | 325 |
| 06ER450 | 15.0 | 50.3 | -40 | 0 | – | – | -35 | 0 | 4 | 2-11/16 | 2-3/16 | 14.00 | 430 |
| 06EM450 | 15.0 | 50.3 | 0 | 25 | -10 | 55 | 0 | 45 | 4 | 2-11/16 | 2-3/16 | 14.00 | 430 |
| 06EA550 | 20.0 | 50.3 | 0 | 50 | – | – | 0 | 50 | 4 | 2-11/16 | 2-3/16 | 14.00 | 430 |
| 06ER465 | 20.0 | 68.3 | -40 | 0 | – | – | -35 | 0 | 6 | 2-11/16 | 1-63/64 | 19.00 | 480 |
| 06EA565 | 25.0 | 68.3 | 0 | 50 | -10 | 55 | 0 | 50 | 6 | 2-11/16 | 1-63/64 | 19.00 | 485 |
| 06ER475 | 20.0 | 75.4 | -40 | 0 | – | – | -35 | 0 | 6 | 2-11/16 | 2-3/16 | 19.00 | 490 |
| 06EM475 | 25.0 | 75.4 | 0 | 40 | -10 | 55 | 0 | 45 | 6 | 2-11/16 | 2-3/16 | 19.00 | 490 |
| 06EA575 | 30.0 | 75.4 | 0 | 50 | – | – | 0 | 50 | 6 | 2-11/16 | 2-3/16 | 19.00 | 490 |
| 06ER399 | 30.0 | 99.0 | -40 | 0 | – | – | -35 | 0 | 6 | 2-11/16 | 2-7/8 | 19.00 | 500 |
| 06EM499 | 35.0 | 99.0 | 0 | 40 | -10 | 55 | 0 | 45 | 6 | 2-11/16 | 2-7/8 | 19.00 | 505 |
| 06EA599 | 40.0 | 99.0 | 0 | 50 | – | – | 0 | 50 | 6 | 2-11/16 | 2-7/8 | 19.00 | 520 |
PACKAGING & SHIPPING
OTHER INFORMATION
06E REGULAR MODELS
| R22 | R404A |
| 06ER150600 | 06ER4506A0 |
| 06ER165600 | 06ER4656A0 |
| 06ER175600 | 06ER4756A0 |
| 06ER099600 | 06ER3996A0 |
| 06EM150600 | 06EM4506A0 |
| 06EA265600 | 06EA5656A0 |
| 06EM175600 | 06EM4756A0 |
| 06EM199600 | 06EM4996A0 |
| 06EA250600 | 06EA5506A0 |
| 06EA265600 | 06EA5656A0 |
| 06EF265600 | 06EF5656A0 |
| 06EA275600 | 06EA5756A0 |
| 06EF275600 | 06EF5756A0 |
| 06EA299600 | 06EA5996A0 |
| 06EF299600 | 06EF5996A0 |
| 06ER750600 | 06ER7506A0 |
| 06ER765600 | 06ER7656A0 |
| 06ER775600 | 06ER7756A0 |
| 06ER799600 | 06ER7996A0 |
| 06EM750600 | 06EM7506A0 |
| 06E2265600 | 06E25656A0 |
| 06EM775600 | 06EM7756A0 |
| 06EM799600 | 06EM7996A0 |
| 06E2250600 | 06E25506A0 |
| 06E2265600 | 06E25656A0 |
| 06E6265600 | 06E65656A0 |
| 06E2275600 | 06E25756A0 |
| 06E6275600 | 06E65756A0 |
| 06E2299600 | 06E25996A0 |
| 06E6299600 | 06E65996A0 |
| 06E3265600 | 06E35656A0 |
| 06E7265600 | 06E75656A0 |
| 06E3275600 | 06E35756A0 |
| 06E7275600 | 06E75756A0 |
| 06E3299600 | 06E35996A0 |
| 06E7299600 | 06E75996A0 |
