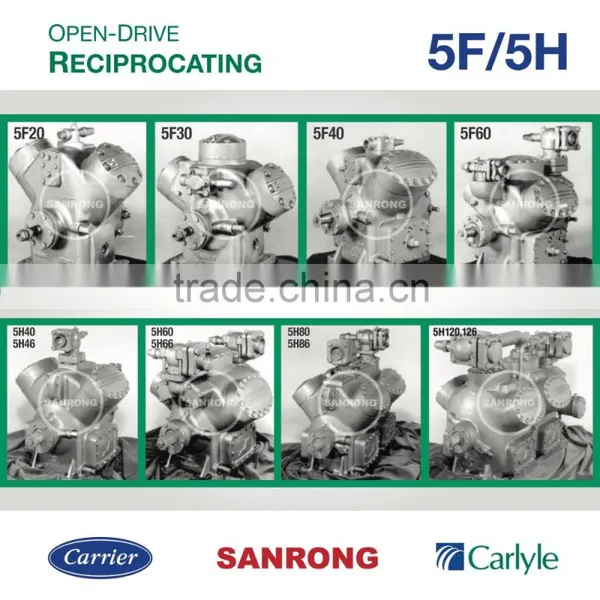

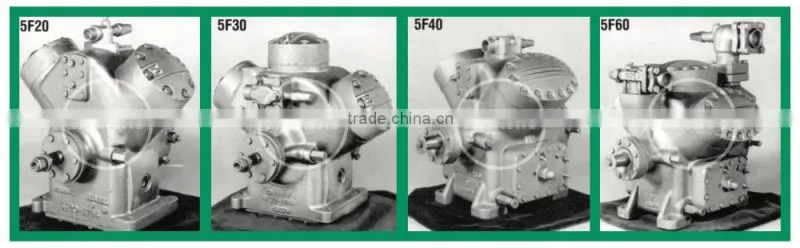

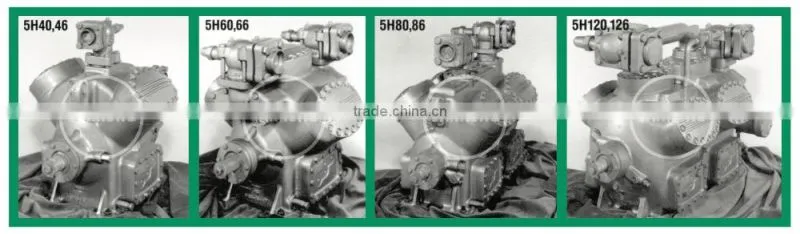

The 5F, 5H compressor is a workhorse when it comes to comfort cooling, industrial processes, low temperature food storage and many other commercial and industrial applications. These competitively priced compressors are available in 12 sizes ranging from 5 to 150 tons of cooling, Each size can be operated with refrigerants R-134a, R-22 and R-507/404A. The flexibility of the 5F and 5H permits a choice of motors, either belt or direct drive, to match refrigerant and job requirements.
Automatic unloaded starting, expensive high-torque motors are unnecessary, reducing initial expense.
High-efficiency motor can further increase efficiency of 5F and 5H compressors.

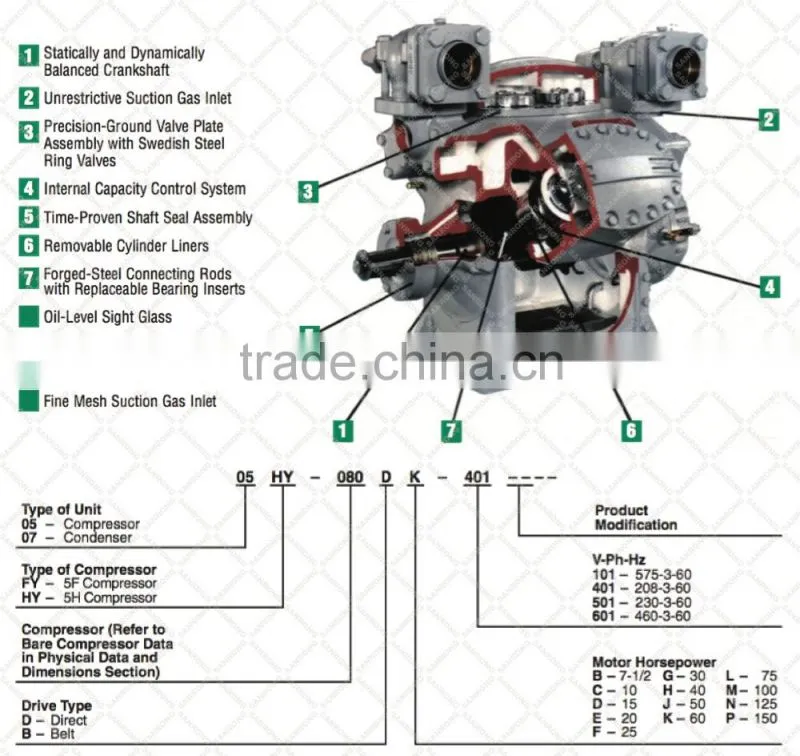

Crankcase casting, cylinder head, and valve plate designs allow for a smooth, unrestricted refrigerant flow.
Refined, two-piece shaft seal assembly virtually eliminates seal leakage for maximum reliability over a wide temperature range.
Efficient crankcase heater design prevents accumulation of liquid refrigerant in the crankcase during shutdown, dilution of the compressor oil supply.
As suction pressure changes, capacity control automatically reduces compressor capacity to as low as 35% of full-design load, reducing horsepower requirements as demand changes. Part-load operation increases energy efficiency, reducing utility bills.
Large-capacity, manually reversible oil pump, automatic pressure regulator, and oil-filtering system provide positive pressure lubrication, extending life.
Suction gases flow around cylinder sleeve to keep the cylinder cool, reducing cylinder wear.
Greater operating efficiencies by running an oversized compressor at a reduced RPM.
| Model | Nominal Horsepower | No. of Cyl. | Bore | Stroke | CFM @ 1075 RPM | Ratings in Tons | Min. Speed for Unloader Operation | Oil Chg. | Suct. Line ODF | Disch. Line ODF | Weight | ||||
R12 |
R22 | R502 | in. | in. | R12 | R22 | R502 | pints | in. | in. | lbs | ||||
| 5F20 | 5 | 10 | 10 | 2 | 2-1/2 | 2 | 19.8 | 5.18 | 8.46 | 8.4 | 600 | 5 | 1-1/8 | 7/8 | 175 |
| 5F30 | 7-1/2 | 15 | 15 | 3 | 2-1/2 | 2 | 29.8 | 7.76 | 12.7 | 12.56 | 700 | 5-1/2 | 1-5/8 | 1-3/8 | 215 |
| 5F40 | 10 | 20 | 20 | 4 | 2-1/2 | 2 | 39.8 | 10.5 | 16.8 | 16.77 | 800 | 12 | 1-5/8 | 1-3/8 | 355 |
| 5F60 | 15 | 25 | 25 | 6 | 2-1/2 | 2 | 59.6 | 15.7 | 25.3 | 25.17 | 900 | 13 | 2-1/8 | 1-5/8 | 400 |
| 5H40 | 25 | 40 | 40 | 4 | 3-1/4 | 2-3/4 | 92.4 | 24.7 | 39.6 | 38.48 | 800 | 18 | 2-5/8 | 2-1/8 | 610 |
| 5H46 | 40 | 60 | 60 | 4 | 3-1/4 | 3-7/16 | 115.5 | 30.6 | 49.1 | 47.72 | 800 | 18 | 2-5/8 | 2-1/8 | 610 |
| 5H60 | 40 | 60 | 60 | 6 | 3-1/4 | 2-3/4 | 138.4 | 37 | 59.4 | 57.73 | 900 | 21 | 3-1/8 | 3-1/8 | 795 |
| 5H66 | 50 | 75 | 75 | 6 | 3-1/4 | 3-7/16 | 173 | 45.9 | 73.8 | 71.58 | 900 | 21 | 3-1/8 | 3-1/8 | 795 |
| 5H80 | 50 | 75 | 75 | 8 | 3-1/4 | 2-3/4 | 184.7 | 49.5 | 79.2 | 76.98 | 1100 | 41 | 3-1/8 | 3-1/8 | 1115 |
| 5H86 | 75 | 100 | 100 | 8 | 3-1/4 | 3-7/16 | 231 | 61.1 | 98.2 | 95.47 | 1100 | 41 | 3-1/8 | 3-1/8 | 1115 |
| 5H120 | 75 | 125 | 125 | 12 | 3-1/4 | 2-3/4 | 276 | 74 | 119 | 115.47 | 900 | 61 | 4-1/8 | 4-1/8 | 1580 |
| 5H126 | 100 | 150 | 150 | 12 | 3-1/4 | 3-7/16 | 346 | 91.8 | 145 | 143.19 | 900 | 61 | 4-1/8 | 4-1/8 | 1580 |
