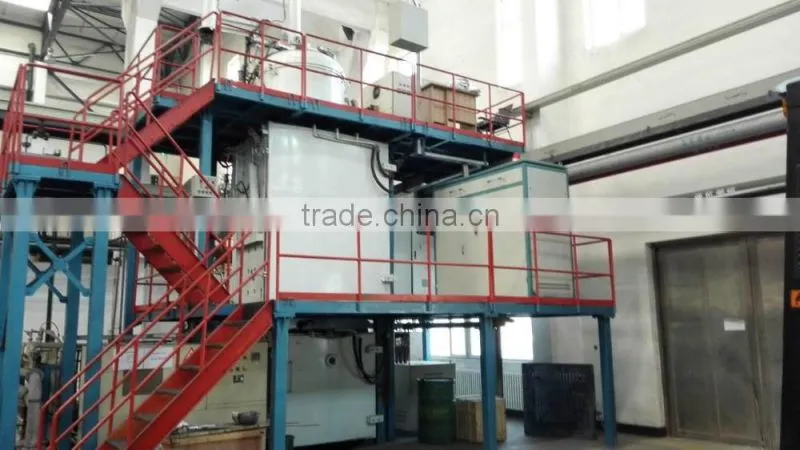

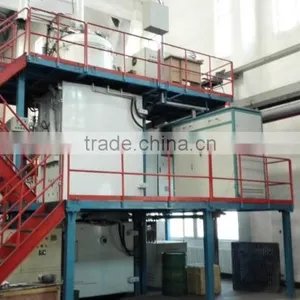

Vacuum directional solidification single crystal casting furnace
1.Summary
1.1Usage of equipment:

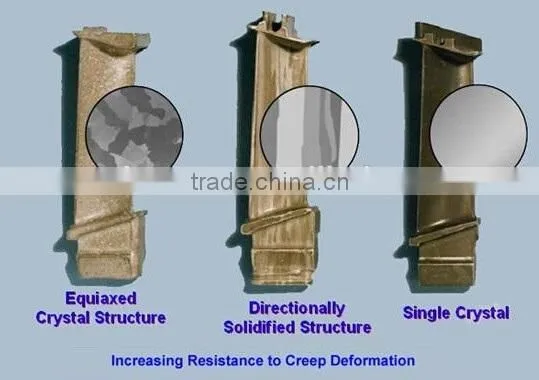

The mode case inside material from bottom to top reach solidifying process through high temperature gradient equipment, therefore single crystal or columnar crystal can grow up. It’s applied for aviation engine, industrial gas turbine single crystal turbine impeller precision casting.
1.2Main parts of equipment:
1.Feeding temperature measurement chamber;
2.Melting chamber;
3.Casting chamber;
4.Chamber isolation valve(up-and-over door structure);
5.Melting device(Turnover & bottom pour dual use);
6.Casting mode lifting mechanism;
7.Mode case heating & insulating furnace and crystallizer;
8.Vacuum pumping system;(dust filter, three stages vacuum pump group);
9.Water cooling;(sealed water distributor, water tank, pipes)
10.Compressed air pipe system;
11.Gas charging device;
12.IGBT middle frequency power;
13.Water cooling copper bus bar, cables;
14.Melting simulation operation electric control system;
15.Work platform, rail stair;
16.Gas release silencer;
17.Electric control system.
1.3Equipment working environment and conditions:
1.Altitude lower 1000M;
2.Working temperature at 5-40℃range;
3.Max humidity lower 85%;
4.No conductive dust, explosive gas or corrosion atmosphere in working site;
5.No obvious vibration;
6.Power supply:380V, 3 phases,power voltage vibration at±10%,frequency at 50±1Hz;
7.Cooling water pressure:0.2-0.5Mpa;
8.Compressed air pressure:0.4-0.6Mpa.
Q:Are you a factory?
A:Yes,We are China leading vacuum furnace manufacturer ,It was formerly known as China National Vacuum Research Institute. Our factory is located in Shenyang city with Shanghai international sales department ,covering an area of over 10,000sq.m.We have powerful R&D team and manufacturing facility.
Q:What kind of vacuum furnaces do you have?
A:We make all kinds of vacuum furnaces, widely used in materials, IT, metallurgy ,machinery
and so on ,especially industrial vacuum furnaces: vacuum sintering furnace, vacuum brazing furnace, vacuum heat treatment furnace (hardening, quenching, annealing, tempering, nitriding, carburizing), vacuum induction melting furnace, laboratory vacuum furnace, induction furnace.
Q:Do you have customization or OEM service ?
A:We can provide the regular and standard model sizes, at the same time, we can customize furnaces as product ,work piece size, and temperature requirement .Meanwhile, we offer OEM service under the strict industrial standard.
Q:What kind of quality standard dose your furnace follow?
A:Firstly, we are ISO9001:2008 and CE certified factory, All the processes are strictly following the standard of the metallurgy process. In the factory, we have about 10 employees that work in the quality assurance department. We control the furnace quality in our factory as below:
1st step : Internal inspection (such as the supply chain management
,in-process quality control and final quality assurance which are executed by our QC engineer according to the technical contract)
2nd step: Pre-acceptance standard (buyer send engineers to check or entrust the third party to do in our factory,)
3rd step: Site acceptance(After the installation of vacuum furnace in user’s factory, we sign the reception report )
Q: Is it hard to operate &maintain?
A:Our furnace has the PLC controller and intelligent programmable temp. Controller, user can use touch screen to set curves, auto/manual switch interlock, auto &monitor system, it is easy to operate. We prepare enough spare parts for user and on line technical support.
Q:Can you serve customer oversea like installation and debugging ?
A:Yes,we can dispatch our engineer to your city for installation and debugging or other service. Meanwhile,we will offer relevant documents: The plan of equipment, Foundation condition graph, The layout of equipment, Electric control system schematic diagram, Main accessories operating instructions & qualification and on.
Q:How about training ?
A:Buyer sent operator to our factory to get trained about the furnace operation; Our engineers offer training in the users working site.
Q:What about payment terms?
A:L/C, T/T, and so on.
Q:How long is your furnace warranty period ?
A:Since passing the site acceptance ,it has 12 months warranty period .
Q:How to get quick quotation from us?
A:Please offer us the treating material, the work piece size, max. Temperature, heating zone dimension, vacuum degree and other special requirement. Then we can quote you ASAP.
