Home > Electrical & Electronics > Connector & Terminals > Wire to Wire Connector > SMA MALE for PCB Mount
Negotiable
MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Jiangsu, China
Brand Name:
Jingchengnuo
Model Number:
SMA-50JE-2
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen/Hongkong
Delivery Detail:
Delivery time depends on order quantity.
Related Products
Place of Origin
Jiangsu, China
Brand Name
Jingchengnuo
Model Number
SMA-50JE-2
Type
SMA
Application
RF
Gender
Male
Specifications

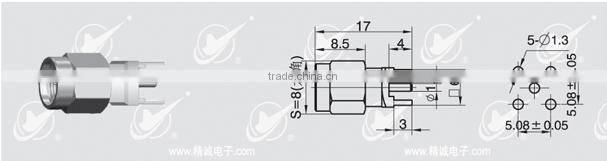

1.Type:SMA2.Male with PCB mount,50 ohm
3.Pin contact:brass/gold plated
4.Insulator:PTFE
MAJOR TECHNICAL CHARACTERISTICS
Temperature Range | -55~+155°C(PE Cable -40~+85°C) |
Vibration | 98m/S²(10~2000Hz),10g |
Impedance | 50Ω |
Frequency Range | DC~12.4GHz(Semi-Rigled Cable DC-18GHz) |
Working Voltage | 335V r.m.s at sea level |
Withstanding Voltage | 1000V r.m.s at sea level |
Contact resistance | Center Contact ≤3mΩ Outer Contact ≤2.5mΩ |
Insertion Loss | ≤0.15dB/6GHz |
Center Conductor retention force | ≥0.28N |
Insulation resistance | ≥5000MΩ |
Voltage Standing Wave Ratio | Straight flexible cable ≤1.10+0.02f semi-rigid cable ≤1.07+0.018f Right angle flexible cable ≤1.20+0.03f semi-rigid cable≤1.17+0.02f
|
Coupling nut retention force | 180N |
Durability(mating) | 500times(cycles) |
APPLICABLE STANDARD
MIL-C-39012
CECC 22110
IEC-60169-15
