Home > Electrical & Electronics > Connector & Terminals > Wire to Wire Connector > N to UHF Adapter,male to Male,50 Ohm

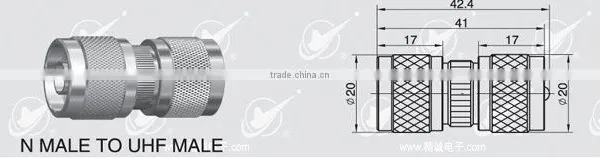

N to UHF Adapter,male to Male,50 Ohm

Name: N to UHF Adapter,male to Male,50 Ohm
Brand: Jingchengnuo
SKU: 115396223
Availability: InStock

Yangzhou Jingcheng Electronics Co., Ltd.

N to UHF Adapter,male to Male,50 Ohm thumbnail-1

N to UHF Adapter,male to Male,50 Ohm photo-1

Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)

Key Specifications

Get Latest Price

Place of Origin:

Jiangsu, China

Brand Name:

Jingchengnuo

Model Number:

N/UHF-JJ

Contact Supplier Request Quote Chat Now

Payment & Shipping

Payment Methods:

Port of Shipment:

Shenzhen/Hongkong

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Jiangsu, China

Brand Name Jingchengnuo

Model Number N/UHF-JJ

Type Adapter

Application RF

Gender Other, male to male

Specifications

1.Type:N to UHF adapter
2.Male to male,50 ohm
3.Body:brass/nickel plated
4.Pin contact:brass/gold plated

SPECIFICATION

Adaptor is the basic product that used in the connection between the instrument cables with different interface.These are two kinds of them:within-type adaptor and inter-type adaptor.It has the same technical special characteristic with same class product.Within-type adaptor is listed in the catalogue of that product.Our company designs and produces various adaptors with all kinds of specification.They have wide frequency range and low VSWR characteristics.Welcome to visit and choose.

MAJOR TECHNICAL CHARACTERISTICS

Temperature Range	-55~+155°C(PE Cable -40~+85°C)
Vibration	100m/S²(10~500Hz)10g
Impedance	50Ω
Frequency Range	DC~11GHz
Working Voltage	1000V r.m.s at sea level
Withstanding Voltage	2500V r.m.s at sea level
Contact resistance	Center Contact ≤1mΩ Outer Contact ≤1mΩ
Insulation resistance	≥5000MΩ
Center conductor retention force	≥0.56N
Coupling nut retention force	450N
Insertion Loss	≤0.24dB/6GHz
Voltage Standing Wave Ratio	Straight ≤1.15/6GHz Right angle ≤1.25/6GHz
Durability(mating)	≥500times(cycles)
