Specifications

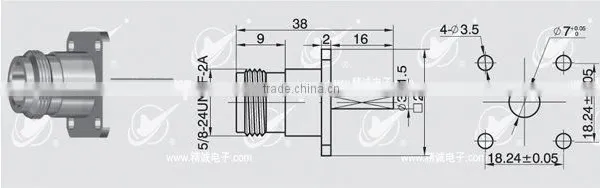

N connector,50 ohm,female with flange mountHigh quality and favourable price
Specifications:
1)Temperature Range: -55~+155°C(PE Cable -40~+85°C)
2)Vibration: 100m/s²(10-500Hz),10g
3)Impedance: 50Ω
4)Frequency Range: DC~11GHz
5)Working Voltage: 1000V r.m.s at sea level
6)Withstanding Voltage: 2500V r.m.s at sea level
7)Contact resistance:
a)Center Contact ≤1m Ω
b)Outer Contact ≤1m Ω
8)Insulation resistance: ≥5000M Ω
9)Center conductor retention force: ≤0.56N
10)Insertion Loss: ≤0.24dB(6GHz)
11)Voltage Standing Wave Ratio:
Straight ≤1.15/6GHz
Right angle ≤1.25/6GHz
12)Coupling nut retention force: 450N
9)Durability(mating) ≥500times(cycles)
Applicable Standard:
MIL-C-39012
CECC 22210
IEC 60169-16
