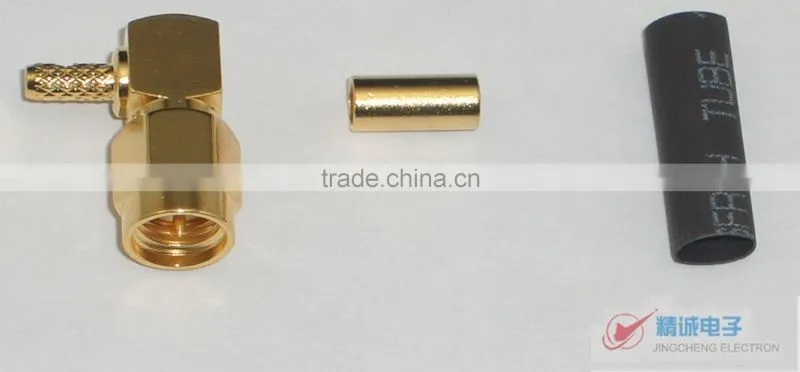

SMA Connector,male for LMR240,crimp ,LMR240 Connector

Name: SMA Connector,male for LMR240,crimp ,LMR240 Connector
Brand: Jingchengnuo
SKU: 115396097
Availability: InStock

Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)

Key Specifications

Place of Origin:

Jiangsu, China

Brand Name:

Jingchengnuo

Model Number:

SMA-C-JMR240

Yangzhou Jingcheng Electronics Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shenzhen/Hongkong

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Jiangsu, China

Brand Name Jingchengnuo

Model Number SMA-C-JMR240

Type SMA

Application RF

Gender Male

Specifications

1.Type:SMA;
2.Male,crimp for JMR240,4D-FB
3.Body:brass/gold plated
4.Pin contact:brass/gold plated

MAJOR TECHNICAL CHARACTERISTICS

Temperature Range	-55~+155°C(PE Cable -40~+85°C)
Vibration	98m/S²(10~2000Hz),10g
Impedance	50Ω
Frequency Range	DC~12.4GHz(Semi-Rigid Cable DC-18GHz)
Working Voltage	335V r.m.s at sea level
Withstanding Voltage	1000V r.m.s at sea level
Contact resistance	Center Contact ≤3mΩ Outer Contact ≤2.5mΩ
Insulation resistance	≥5000MΩ
Center conductor retention force	≥0.28N
Coupling nut retention force	≥180N
Insertion Loss	≤0.15dB/6GHz
Voltage Standing Wave Ratio	Straight Flexible Cable≤1.10+0.02f Semi-Rigid Cable≤1.07+0.018f Right angle Flexible Cable≤1.20+0.03f Semi-Rigid Cable≤1.17+0.02f
Durability(mating)	≥500times(cycles)
