Home > Electrical & Electronics > Connector & Terminals > Wire to Wire Connector > K Series Watertight Push-pull Circular Connector

K Series Watertight Push-pull Circular Connector

K Series Watertight Push-pull Circular Connector thumbnail-3

K Series Watertight Push-pull Circular Connector thumbnail-4

K Series Watertight Push-pull Circular Connector thumbnail-5

K Series Watertight Push-pull Circular Connector photo-1

K Series Watertight Push-pull Circular Connector photo-2

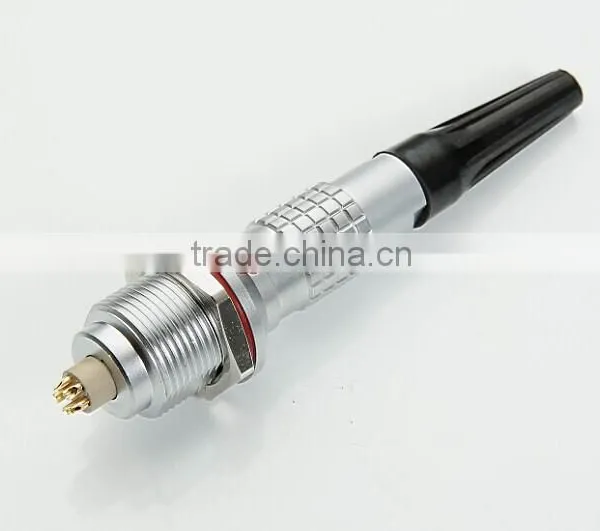

K Series Watertight Push-pull Circular Connector photo-3

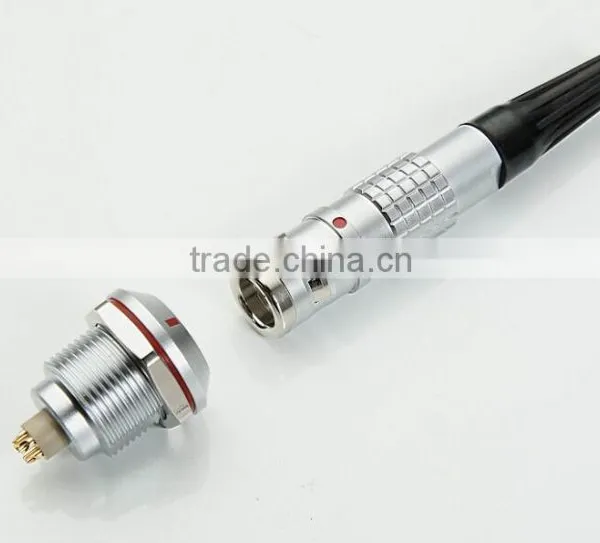

K Series Watertight Push-pull Circular Connector photo-4

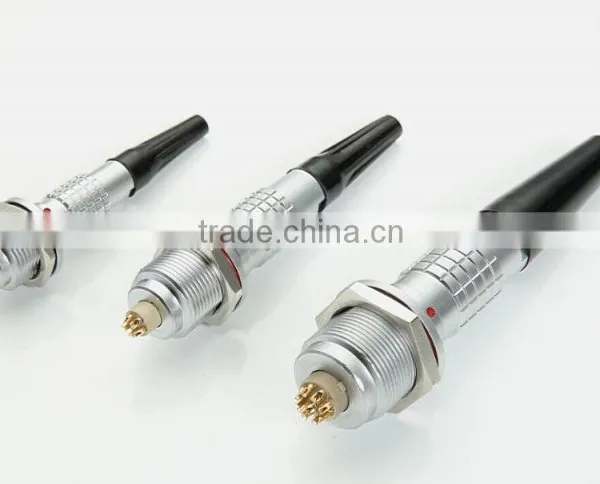

K Series Watertight Push-pull Circular Connector photo-5

Negotiable MOQ: 10 Pieces (Price negotiable depending on order volume and customization)

Key Specifications

Get Latest Price

Place of Origin:

Jiangsu, China

Model Number:

1K-JGG-CGG

Type:

Other, K series push-pull circular connector

Contact Supplier Request Quote Chat Now

Yangzhou Jingcheng Electronics Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

shenzhen

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Jiangsu, China

Model Number 1K-JGG-CGG

Type Other, K series push-pull circular connector

Application Other, Audio & Video

Gender Other

K series

K series connectors are designed for out door applications. All models of this series are watertight when mated to give a protection degree IP68 when correctly assembled to an appropriate cable(IP66).

Main features:

-Security of the push-pull self-latching system;

-Multipole types 2 to 26 contacts;

-Solder or print contacts(straight or elbow);

-High packing density for space savings;

-Multiple key options to avoid cross mating of similar connectors;

-Keying system for connector alignment;

-360°screening for full EMC shielding;

-Watertight connection(IP68/IP66);

-Rugged housing for extreme working conditions.

Specifications

Insert configuration:	2 to 32 pins
Shell size:	#0, 1 or 2
Contact type:	solder, print or crimp
1 key:	Alpha: 0°
2 keys:	Alpha: 30, 45 or 60°
Protection grade:	IP66 to 68
Contacts material:	bronze beryllium and gold-plated surface
Housing material:	nickel-plated brass
Collet:	nickel-plated brass
Insulator material:	PPS and PEEK
Compatible with series K/FGG/PHG/EGG such as:	FGG.0K.302, FGG.0K.303, FGG.0K.304, FGG.0K.305, FGG.0K.306, FGG.0K.307, FGG.0K.309, FGG.1K.302, FGG.1K.303, FGG.1K.304, FGG.1K.305, FGG.1K.306, FGG.1K.307, FGG.1K.310, FGG.2K.302, FGG.2K.303, FGG.2K.304, FGG.2K.305, FGG.2K.306, FGG.2K.307, FGG.2K.314
	PHG.0K.302, PGG.0K.303, PGG.0K.304, PHG.0K.305, PHG.0K.306, PHG.0K.307, PHG.0K.309, PHG.1K.302, PHG.1K.303, PHG.1K.304, PHG.1K.305, PHG.1K.306, PHG.1K.307, PHG.1K.310, PHG.2K.302, PHG.2K.303, PHG.2K.304, PHG.2K.305, PHG.2K.306, PHG.2K.307, PHG.2K.314
	EGG.0K.302, EGG.0K.303, EGG.0K.304, EGG.0K.305, EGG.0K.306, EGG.0K.307, EGG.0K.309, EGG.1K.302, EGG.1K.303, EGG.1K.304, EGG.1K.305, EGG.1K.306, EGG.1K.307, EGG.1K.310, EGG.2K.302, EGG.2K.303, EGG.2K.304, EGG.2K.305, EGG.2K.306, EGG.2K.307, EGG.2K.314
	FGG, FAG, FHG, PHG, EGG, EGA, ECG, ECA, EPG, EXG, K/S/F/SC series, ODU, Fischer, Hirose, binder and redel connectors

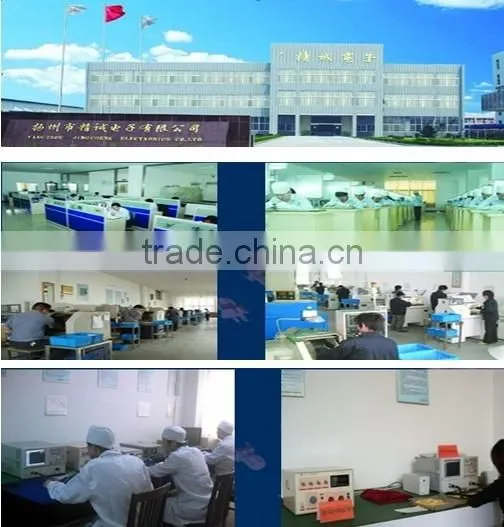

Yangzhou Jingcheng Electronics Co.,Ltd a well-known manufacturer and supplier specialized in the development, manufacture and sale of R.F coaxial connectors, cable assemblies, matched terminals, micro-wave components and communication structure products, is located in Bali industrial Park,yangzi River South Rd.yangzhou,jiangsu.China.

We manufacture the following products:
1) RF coaxial connectors and adapters

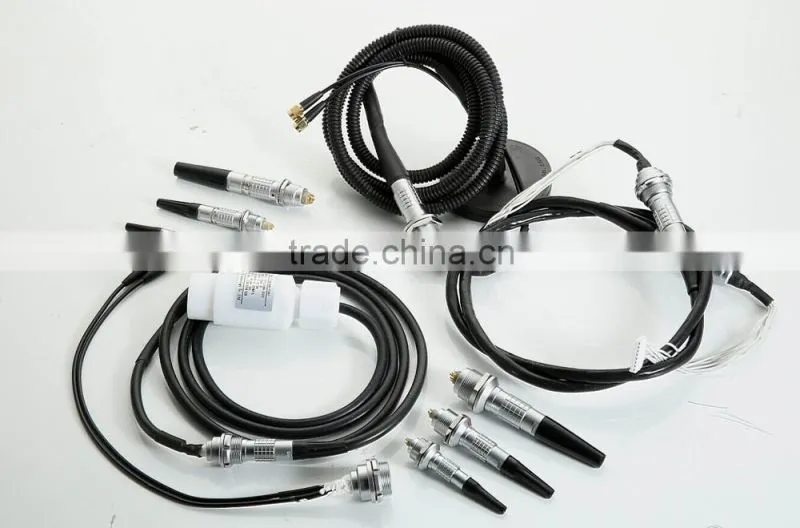

2) Flexible, semi-flexible and semi-rigid Cable Assemblies

Our Quality:

Quality is the life of jingcheng. We use only the best quality (original) components to ensure the standard of our product range is of the highest caliber.All products we sold out are strictly selected and tested by our QC department.

Warranty:

We provide comprehensive after-sales service, including quality service, guidance services,We focus on customer needs in every detail.Please contact us if you need our detail warranty term.

Payment:

We accept payment via TT (Bank transfer), Western Union,

We accept bank transfer for large orders. For small order, you'd better pay via Western union

Shipping:

We offer as many shipping options as possible, including DHL, UPS, TNT and Fedex
