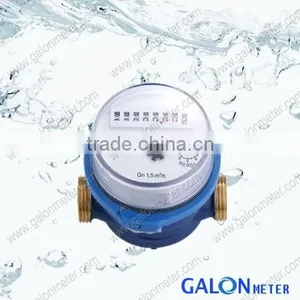

Help CenterSingle Jet Water Meter
Related Products
-
High Quality Water CounterNegotiableMOQ: 100 Pieces -
Single Jet Small Water MeterUS$ 6 - 10MOQ: 1000 Pieces
-
Single Jet Wet Type Water MeterNegotiableMOQ: 1000 Pieces
-
Single Jet Vane Wheel Dry Dial Water MeterNegotiableMOQ: 100 Pieces
-
5 USD Single Jet Cheap Water MeterNegotiableMOQ: 3000 Pieces
Specifications
--Measuring the volume of cold potable water passing through the pipeline.--Small, cheap, light, high quality.
Feature:
--Single-jet, dry-dial, free rotating register, small in size and light in weight;
--Magnetic drive, Resistance to exterior magnet interference,
--keep the reading clear in a long term service;
--Measuring accuracy conform to ISO 4064 class B standard..

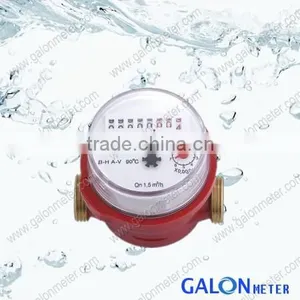

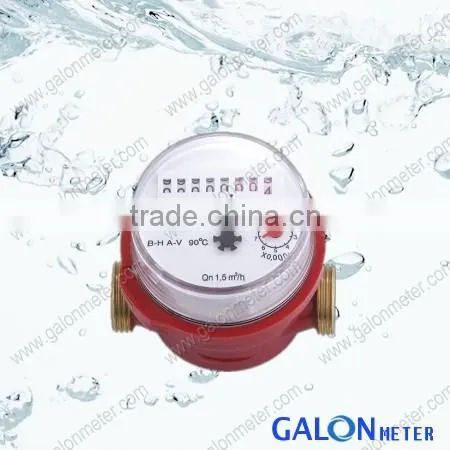

--Available with different length on request. Available in hot water meter on request.
Working condition:
--Water temperature: 0.140 ( 0.190 for hot water meter)
--Water pressure : ≤1.0Mpa
Maximum Permissible Error:
(1) in the lower zone from qmin inclusive up to but excluding qt is ±5%
(2) in the upper zone from qt inclusive up to and including qs is ±2%
Hot water meter ±3%
MAIN TECHNICAL SPECIFICATIONS
Type |
Size (mm) |
Class |
qs
|
qp |
qt
|
qmin |
Minimum Reading |
Maximum Reading |
m3/h |
L/h |
m3 |
||||||
LXDG-15A |
15 |
B |
3 |
1.5 |
120 |
30 |
0.00005 |
99,999 |
LXDG-20A |
20 |
B |
5 |
2.5 |
200 |
50 |
0.00005 |
99,999 |
LXDG-25A |
25 |
B |
7 |
3.5 |
280 |
70 |
0.00005 |
99,999 |
Type |
Size (mm) |
Length |
Width |
Height |
Connecting Thread D |
Weight (kg) |
mm |
D |
kg |
||||
LXSC-13D3 |
13 |
80/110 |
77 |
85 |
G 3/4B |
0.6/0.7kg |
LXSC-20D3 |
20 |
130 |
77 |
85 |
G 1B |
0.9 kg |
LXSC-25D3 |
25 |
160 |
77 |
92 |
G1 1/4B |
1.47kg |
Export box, 10/20 pcs/box, strong wooden pallet and case.
Delivery time: 12-25 days.
High quality meters, Competitive prices and Satisfied service.
Chongqing Galon Meter Co., Ltd. is one of the leading manufacturers of water meters in China, established in 1998. Based on about 20 years of industrial experience, we produce high quality sensitivity water meters and strictly conform to ISO4064 quality system. We provide world class solutions and advanced technologies of water meters to help utilities more easily, efficiently and reliably, obtaining advanced metering intelligence to improve customer service and enhance operational efficiency.
