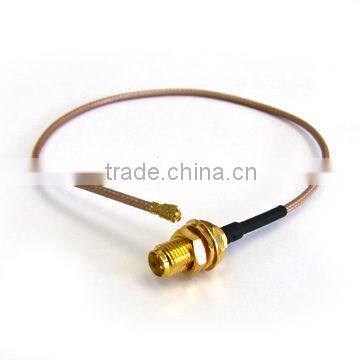

IPEX to SMA female bulkhead with RG178 cable, cable assembly, pigtail, jumper cable
About Us:
We are a hi-tech enterprise established in 1999, specializing in the research, development, manufacture and sale of RF connectors, cable assemblies, attenuators, lightning arresters, power splitters, antennas, and impedance switches.
As a major RF products enterprise in China, our company manufactures a full range of products, such as L6, L8, L9, L10, L12, L16, SL16, Q9, F, and FLM audio frequency linkers, JS aerials, plugs, aerial parts, coaxial cables, audio and video frequency linkers, large-sized cable tie-ins, BNC, TNC, SMA, SM B, SMC, N, MMCX, SSMA, SMB, SSMC ,change-over switches, impedance switches, attenuators, fixed loads, radio frequency cables, communication cables, installing cables, and PVC insulating lines. All of these products are in accordance with IEC169, DIN, and MIL-C-C-39012.
Description:
Our company produces the cable packages are for the cable of line connection for the GSM,PCN and every communication systerm between the cabinet of machine and the cabinet of machine,between the antenna and the trunk cable,between the trunk cable and the cabinet .model cable package,the variety is various,user may be according to the need,choice not of the came kind pattem connector of different model and diffevent the cable of length and model buy the cable package.may reduce the user himself load the cost to receive cable,guaranteed the usage mass.
RG178
Construction Specification
|
Material |
Diameter(mm) |
1.Inner Conductor |
Silver Plated Copper Clad Steel |
7*0.102 |
2.Dielecric |
PTFE |
0.86 |
3.Outer Conductor |
Silver Plated Copper Braid |
1.3 |
4.Jacket |
FEP |
1.83 |
Electrical Characteristics
Capacitance (pF/m) |
96.45 |
Impedance (ohm) |
50 |
Velocity (%) |
70 |
Bending Radius(mm) |
10 |
Max.Oper.Voltage (VMS) |
1000 |
Max.Oper.Frequency (MHz) |
3000 |
Operating Temp(°C) |
-55 to 200 |
Attenuation(Typical)
Frequency(MHz) |
Attenuation (>dB/100m) |
100 |
45.3 |
400 |
91.2 |
1000 |
145.7 |
3000 |
257.2 |
