Specifications
Thread coating machine using for coating thread locking adhesive and Anaerobic on Screw, bolts, studs, bolt, nuts, wood screws,
Model:

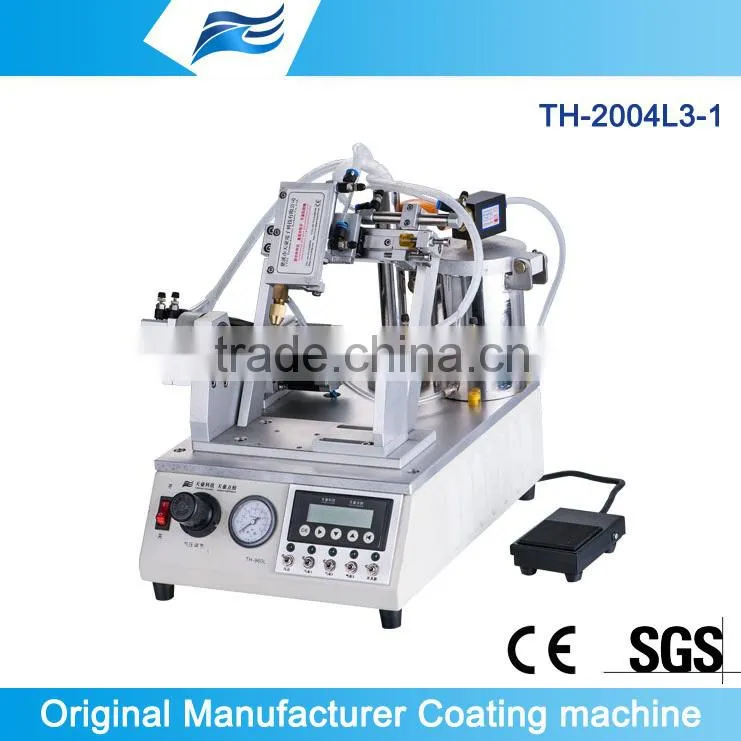

TH-2004L3-1 screw and nut bolt coating machine
Product pictures:
specials as threadlocking adhesive to design applicator,
this equipment we had using for threadlocking adhesive market have three very stable and good.
With the simplification of the process, and even more use of the convenience of customers to their own needs in the threaded part of pre-coated with a layer of glue, playfastening, sealing, anti-vibration, anti-loose, high temperature. Our company is the development of a semi-automatic thread coating machine is mainly used for screws, pneumatic connector fasteners thread adhesive.
screw and nut bolt coating machine
Sales Points/Focus
1. Liquid can be evenly dispensing inside the screw
2. A Position place adjustment convenience
3. Dispensing end can be adjusted to your requires
4. The Speed is quick, high efficiency and provide stable and uniform coating
5. Quantitative high accuracy and long life
6. Easy to operate, Compact
7. Large supply device and saving time reloading.
8. Locks bolts, prevents tampering stops corrosion
9. Seals weld, seals threaded pipe, seals nicked threads
10. Digital circuit timing controlling technology was used, and the dispensing time, motor speed, delay and advance time, can be set through the digital dial.
11. The pedal /ring/inductive switches can be chosen.
12. Complete with an accessory dispensing kit.
13. Precision micro-stepping motor and imported SMC pneumatic components, stable performance.
14. Tianhao professionally designed with adhesive dispensing control systems, user-friendly control interface, easy to operate.
15. Can be arbitrarily set the dispensing starting and ending location and the number of dispensing circle.
16. Greatly improved the reliability of the product, air tightness and durability.
17. Increase the vibration plate automatic feeding device
Main specification
Standard: CE Approved
Patent No: 201020120745.9
Length:<60 mm
ID Size: M3-M30
Tooth pitch:(0.5-5)mm
Width of thread: 150mm
Drive: Precision step motor
Control way: Micro Master
Motor speed: 10~200 Cycles/minute
Repeatability: ±0.01mm
Frequency: 2-5sec/pcs
Output voltage: 0.1bar-7bar Input voltage: 110 VAC or 220 VAC Internal Voltage: 24 VDC
Weight: <16Kg Size: 48x40x 50(cm)
Complete accessories dispensing kit bolt thread coating machine for pre coating bolts
NO |
Name |
QTY |
1 |
25Y Tank |
1pcs |
2. |
O ring with tank cap |
1pcs |
3 |
Air tube |
1pcs |
4 |
S/S tip |
5pcs |
5 |
foot pedal (2 core) |
1pcs |
6 |
220Vpower cable |
1pcs |
7 |
Air tube 6x4 |
1pcs |
8 |
Connect line(3 core) |
1pcs |
9 |
TEE Ø6 mm |
1PCS |
|
|
|
|
|
|
Standard packing
Items per Carton: |
1 Units / Carton |
Package Measurements: |
48X31X50 CM |
Gross Weight: |
22KG |
Delivery in 3 workday after received your payment
Shipping ways by TNT.ups,dhl.fedex
Loading port:Ningbo or shanghai
Our Service: Your satisfactory, our pursuit!
1,Your inquiry will be replied in 24 hours.
2,Offer free spare parts and service within one year of warranty,
3,Technology Support Provide Demo operation video for training; If you have time,
welcome to our company, Will arrange engineers to show you the operation.
4, Professional after-sales service team;
5,Give great discount to AGENCY to ensure agents profit.
Our product can help you to achieve the goal :
- Increase production efficiency
- Promotion processing precision control
- Improve product quality
- lower production costs, reduce rejected product
- Eliminate material waste
Quality guarantee
We provide 1 years warranty of product and shipment with one set fitting to you
Related products
Fully Automated Threadlocking Adhesives Dispensing Machine with feed system
Factory Picture
Our advantages:
1. Original Manufacturer/factory
2. High reputation around the china
3. 10 years experience of glue dispensing machine
4. Best quality and good work
5. High grade components
6. Special dispensing software, both Chinese and English interface
7. Professional service and technology support
8. All models with CE approved;
9. OEM services accepted
Our product:
- 4 Axis dispensing robot.XYZ dispensing robots- for full automated and high precision ,high efficiency production processes control
- Dispenser.mix/meter dispensing system - for manual assembly processes
- Threadlocking adhesives coating machine-suitable for thread coating processes
- Rotary table Dispensing machine- for dispensing circular beads on circular, semi-circular, oval, product
- Valve, tank-for automated production lines
- Highest quality dispensing tips ,syringe barrels
- Other disposable components
Customizable:
1.Input /Oput singal
workrange
3.add pick and place function
