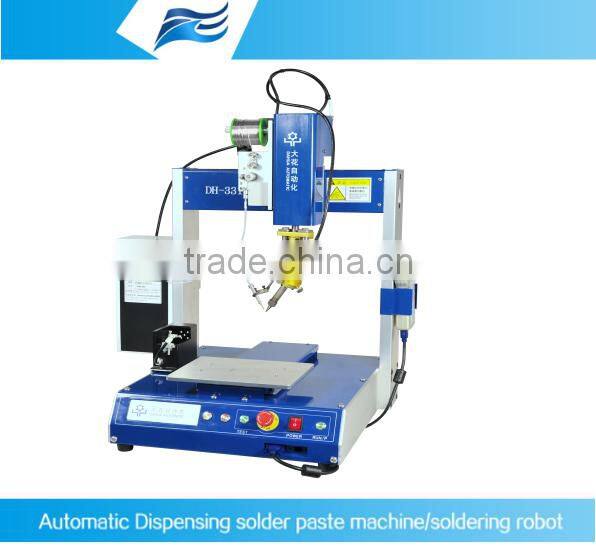

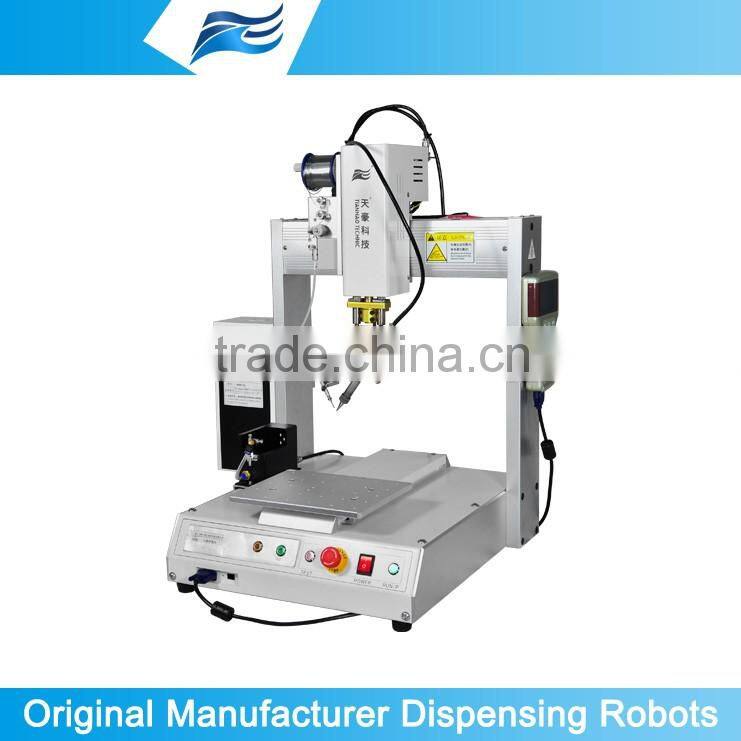

Soldering Tin Machine/tin Wire Soldering Equipment

FOB Price

Negotiable / Piece

1 Piece(Min. Order)

Port ningbo or shanghai
Payment TermsT/T

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Zhejiang, China		Brand Name	TIANHAO DISPENSING
Model Number	DH-3310S-LM

Product Description

Product Application

Tianhao dispensing’s range of automated desktop soldering robots brings a cost effective solution to electronic and circuit board manufacturers. Designed to handle solder diameters ranging from 0.4 to 0.8mm and a fully adjustable temperature control, the series is perfect for a wide variety of soldering applications.

Using the multi-axle transmission and temperature control of high frequency welding machine to achieve the soldering operations, Achieve the currently robotic automation equipment instead of manual soldering operations, there are single head and double head, and several design heads be select , this product according to the customer to the demands of process or production capacity.

SPECIFICATIONS FOR 25 TON CRAWLER EXCAVATOR
main parameters	Working range	XYZ axis :300X300X100mm/400X400X100mm R axis: 300° Axis carries tin: 360°
	Running Speed	X/Y/Z/axis:0.1～600 mm/sec, R axis :0.1～600°/sec Axis for tin wire:0.1～600°/sec
	Solder max temperature	150℃-450℃
software	Control method	Teachpend
	memory capacity	Up to 999 files，up to 60000 dots per file.

Hardware	Driver way	Micro Stepping motor
	Transmission	Timing Belt/ Precision Linear Guides
	Cleaning system	Air Compressor / Brush

Main Features

1)Flexibility for a wide variety of circuit boards

2)Simple programming,simple operation programmer can guide the movement to solder joint position at the end

3)Solder diameter from 0.4 to 0.8mm

4)The heater pitch Angle is adjustable

5)Built-in solder tip cleaning station

6)Equipped with lack of tin alarm(option)

7)One heads automatic soldering tin (automatic feed device )

8)Solder controller by TianHao independent research and development, With stable temperature precision control, fast soldering tin.improve the efficiency of solder.

Certifications

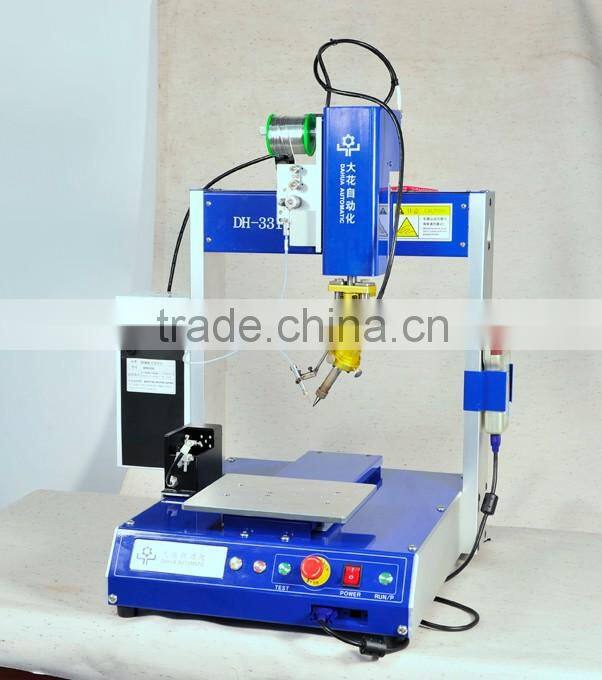

Detailed Images

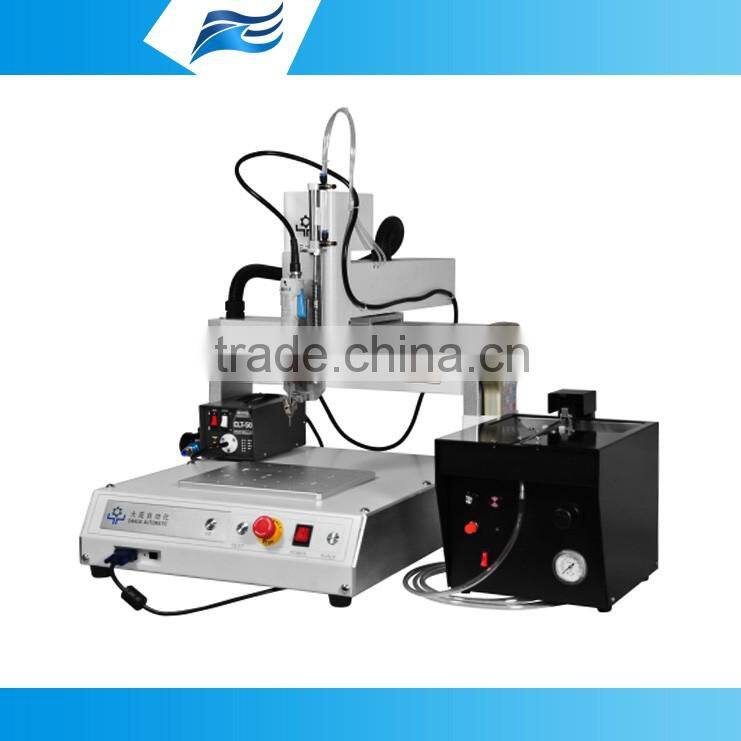

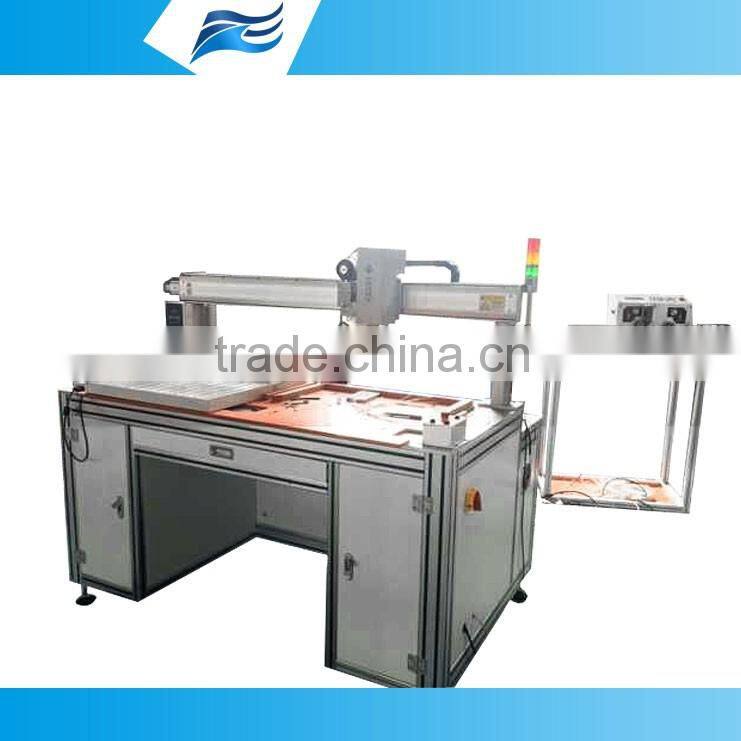

Machine Parts

Main Features

Our Service

Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.

After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.

Packing & Delivery

Packaging
Size	66 (L) * 60 (W) * 60 (D)
Weight	46kgs
Packaging Details	The normal package is wooden box(Size: LWH). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.
