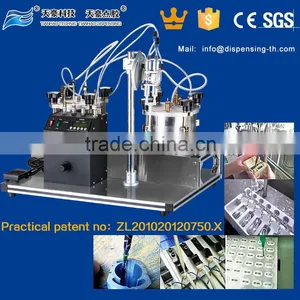

TH-206S-2004AB semi-automatic resin dispensing machine
The TH-2004AB2 Meter mix Dispensing machines for lower viscosities adhesives, polyurethane, resins and epoxies precision to handle the metering&mixing dispensing of the component parts.
Adapt to a variety of two-component AB glue 1:1-1:3
*widely used in the relay, energy saving lamps, LED, capacitor, etc. dispensing, potting operations
Features:
1. Have a big capacity cartridge, make the time of importing materials minimum, and reduce waste.
2. Adopted with the TH-700J pneumatic double-liquid valve can interrupt the flow quickly without dripping.
3. Static mixer is used which can mix liquid evenly. It can be cleaned conveniently.
4. The auto-cycling function can reduce labor intensity and increase the production.
5. Digital circuit timing controlling technology was used, and the dispensing time can be set through the digital dial.
6.The pedal /ring/inductive switches can be chosen.
7.Complete with an accessory dispensing kit.
Specifications:
Standards: CE approved
Control: E-pneumatic
Liquid ratio: Automatic
Mixing method: static mixer
Feed system: 1gallon tank (Other capacity can be chosen)
Cleaning way: automatic cleaning function can select
Operating Model: Manual, Timer/cycles
Start way: Foot Pedal, Finger Switch
Air Output: 0.1bar-7bar
Valve: TH-700J
Dispensing time: 0.001S-9.999S
Cycles (interval) time: 0.1S-9.9S
Repeatability: +/-0.01%
Leak-proof function: valve with Vacuum device
Air Input: >5 bar Dry air without lubrication
Input voltage: 110V/220V 50Hz(Internal conversion)
Internal Voltage: 24 VDC
Power:
Weight: 58 kgs
Size: 75X42X30cm
Complete with an accessory dispensing kit:
NO |
Name |
QTY |
1 |
Frame |
1pcs |
2 |
Controller TH-2004AB |
1pcs |
3 |
Valve 700J |
1pcs |
4 |
Tank TH-100Y If TH-2004AB1 only have 2pcs tank |
2pcs |
5 |
Air tube with tank 6X4mm
If TH-2004AB1 only have 2pcs Air tube |
2pcs |
6 |
Air tube with controller 8X5mm |
1pcs |
7 |
Air tube with valve 6X4mm |
2pcs |
8 |
Glue tube 8X6mm If TH-2004AB1 only have 2pcs glue tube |
2pcs |
9 |
Tee |
1pcs |
10 |
STATIC MIXER |
1pcs |
11 |
Dispensing tip |
10pcs |
12 |
220V power cable |
1pcs |
13 |
Foot pedal |
1pcs |
Note: If with automatic cleaning machine add 1pcs of 2kgs tank.
