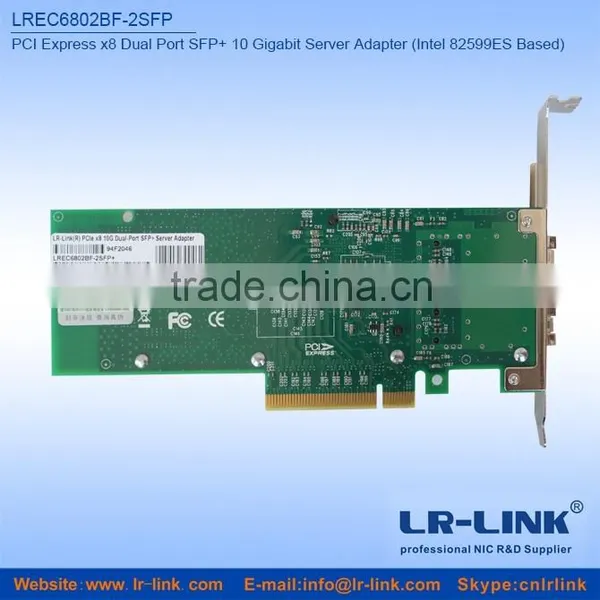

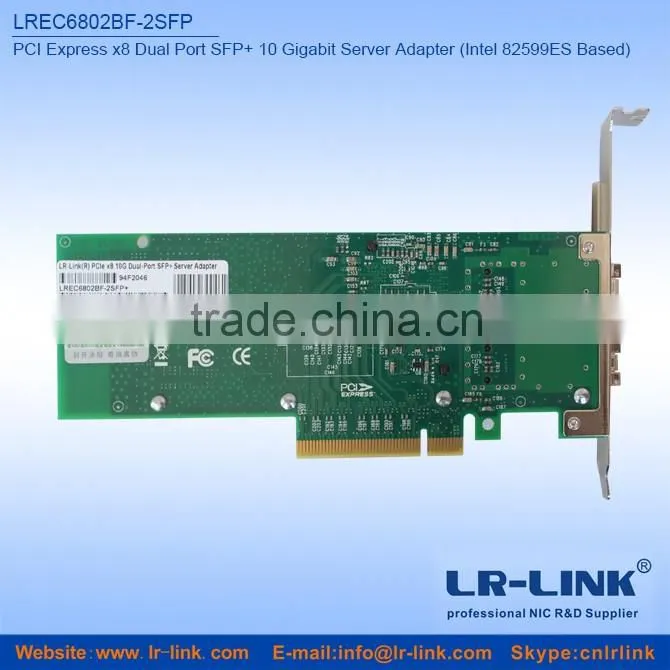

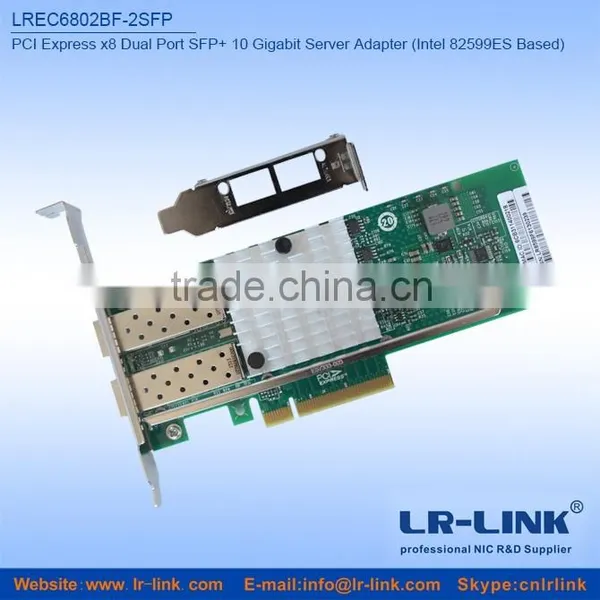

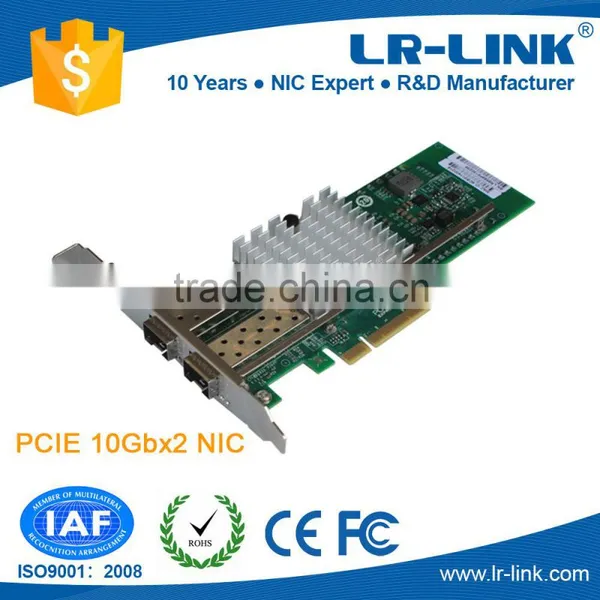

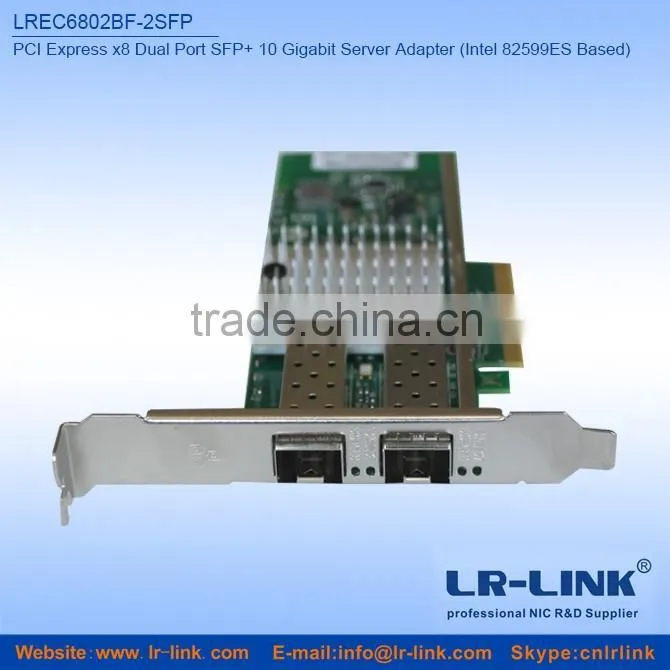

LREC6802BF-2SFP+ PCI Express x8 Dual Port SFP+ 10 Gigabit Fiber 10g Optical Network Card Compatible with X520-SR2 and X520-DA2 (Intel 82599ES Based)
LR-LINK LREC6802BF-2SFP+10G fiber optical network card with SFP+ connectivity are the most flexible and scalable Ethernet adapters to meet the demands of today’s data center environments. Data center networks are being pushed to their limits. The escalating deployments of servers with multi-core processors and demanding applications such as High Performance Computing (HPC), database clusters, and video-on-demand are driving the need for 10 Gigabit connections. Customers require flexible and scalable I/O solutions to meet the rigorous requirements of running mission-critical applications in virtualized and unified storage environments.
Best Choice for Virtualization
Unified Networking and Storage
Support for Fiber Channel over Ethernet (FCoE)
Support for iSCSI
Reliable Performance
Security Optimizations
PCIe v2.0 (5 GT/s)
Designed For Multi-core Processors
I/O Features for Multi-core Processor Servers
Intel® Direct Cache Access (DCA)
MSI-X support
Low Latency Interrupts
Header Splits and Replication in Receive
Multiple Queues: 128 Tx and Rx queues per port
Tx/Rx IP, SCTP, TCP, and UDP checksum offloading (IPv4, IPv6) capabilities
Tx TCP segmentation offload (IPv4, IPv6)
Receive and Transmit Side Scaling for Windows environment and Scalable I/O for Linux* environments (IPv4, IPv6, TCP/UDP)
IPsec Offload
MacSec
Network Operating Systems (NOS) Software Support
Windows 7 32-bit (64-bit),Windows 8 32-bit (64-bit),Windows 8.1 32-bit (64-bit),Windows Vista 32-bit (64-bit)
Windows Server 2003 32-bit (64-bit),Windows Server 2008 32-bit (64-bit),Windows Server 2008 R2 32-bit (64-bit)
Windows Server 2012 32-bit (64-bit),Windows Server 2012 R2 32-bit (64-bit)
Linux kernel 2.6.30 or greater (x86_64) (w/ SR-IOV support)
FreeBSD 7.2 or laster
Linux RHEL 5.6,Linux RHEL 6.x, Linux SLES 11 SP1 , Linux SLES 10 SP4
OS Independent
DOS NDIS 2 , DOS ODI
EFI 1.1 ,UEFI 2.1
Vmware ESX 4.02 ,Vmware ESX 4.02,VMware Workstation
General
Intel® 82599 10 Gigabit Ethernet Controller
SFP+ Connectivity
Low-profile
Load balancing on multiple CPUs
iSCSI remote boot support
Fibre Channel over Ethernet (FCoE) Support
Support for most network operating systems (NOS)
RoHS-compliant2
Intel® PROSet Utility for Windows* Device Manager
Time Sync (IEEE 1588, 802.1as)
Virtualization Features
VMDq
Next-Generation VMDq1 (64 queues per port)
PC-SIG SR-IOV Implementation (64 virtual functions per port)
Virtual Machine Load Balancing (VLMB)
Advanced Packet Filtering
VLAN support with VLAN tag insertion, stripping and packet filtering for up to 4096 VLAN tags
Manageability Features
Preboot eXecution Environment (PXE) Support
Simple Network Management Protocol (SNMP) and Remote Network Monitoring (RMON) Statistic Counters
iSCSI Boot
Watchdog Timer
Adapter Product Features
Intel® PROSet Utility
Plug and play specification support
Receive Side Scaling
Direct Cache Access (DCA)
Advanced Software Feature
Adapter fault tolerance (AFT)
Switch fault tolerance (SFT)
Adaptive load balancing (ALB)
Teaming support
IEEE 802.3ad (link aggregation control protocol)
PCIe Hot Plug*/Active Periphera component interconnect (PCI)
IEEE 802.1Q* VLANs
IEEE 802.3 2005* flow control support
Tx/Rx IP, TCP, & UDP checksum offloading (IPv4, IPv6) capabilities (Transmission control protocol(TCP), user datagram protocol
(UDP), Internet protocol (IP)
IEEE 802.1p*
TCP segmentation large send offload
MSI-X supports Multiple Independent Queues
Interrupt moderation
IPv6 offloading — Checksum and segmentation capability extended to new standard packet type
Ordering Information:
M/N |
Description |
LREC6802BF-2SFP+ |
PCI Express x8 Dual Port SFP+ 10 Gigabit Fiber Optical 10g Network Card (Intel 82599ES Based) |
PS: Above details areonly for reference,if there are any changes,no inform will have.
