Specifications
1.Special dispensing software, both Chinese and English interface2.Good quality
3.2 year wrrantry
4.OEM services accepted

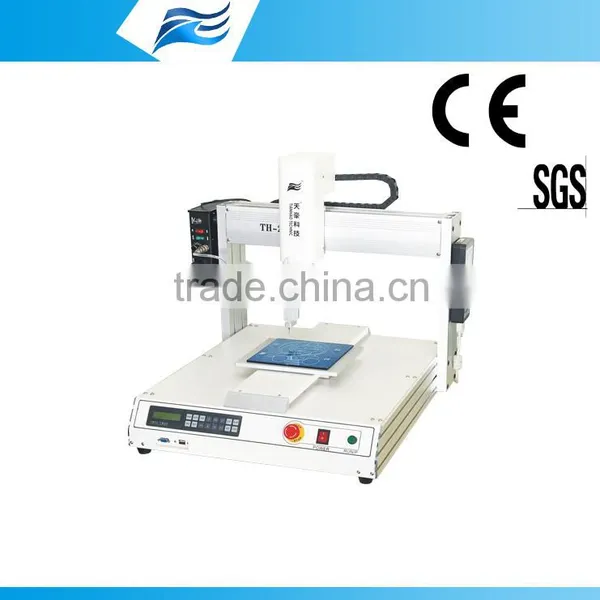

TH-2004D-300k Tabletop connector filling machine
Introduce
TH-2004D-530Y-Dual station operation , dual table left and right output to achieve uninterrupted operation in order to improve production efficiency.
saving costs in material waste, rejects, time and labor.desktop dispensing robot offer reliable operation with excellent repeatability
for precise application of adhesives, liquid gaskets, resins and UV materials in many assembly and manufacturing processes.
Main Advantage
1. Standard: CE approved
2.our robot looks beautiful design and well-made,our machine Design patent, please see the attach file.
Patent no: ZL2010 2 0120765.6.
3.axis with 2 linear guide rail,working more stable.
2 linear guide rail, More stable
X, Y, Z axis are all imported bilinear guides and precision stepper motors to run more stable than similar products, the load higher.
4.Z-axis brake motors, greatly increased the stability of the equipment and motion accuracy,
when that 6kg maximum z axis load will remain in a upper position after switching off the power.
5.each axis sensor device import from Japan.
6.Increase the parameters display with programmer , more intuitive operation
7.Single machine can operation,then save the pendant,Avoid staff misuse, or change has set a good program.
8.XYZ Maximum Load 15KGS/6KGS.
9. Repeatability: +-0.01 mm/ axis 3 axis together work same time can get +-0.01 mm,then you had said these robot only one axis can get the precision , no possible same time 3 axis get this preicision
10..Transmission:new timing belt/precision linear Guides
11..Drive System: new precision micro-stepper motor
12.machine can single operation
When finish program edit by the soft control key directly control robot work without external Teach Pendant
Lines, Circles, Arcs, Continuous Paths, 3D linear interpolation.
13.Unique style of programming
CAD file directly change to the dispensing path
14.High Precision quantification control system
our software oneself design and deployment more easy suiting customer to use it ,have any question we can help them solve it in time. When edit program or operation you will find our machine is better tank this competitor machine. If you have change, you can try operation this competitor machine.
Specification
ITEM |
TH-2004D-300K |
X/Y1/Y2/Z working range |
300 x 300 x 100mm |
Standard |
CE Approved |
XY/Z Maximum Load |
15 kg / 6 kg |
XY/Z Speed |
0.1-800/350 mm/Axis |
Repetitiveness |
±0.01mm/Axis |
Data memory capacity |
999programs |
Display way |
LCD display |
Drive System |
Precision micro-stepper motor |
Transmission |
Timing Belt/ Precision Linear Guides |
Edit Programming |
Handheld Programmer |
I/O Signals |
4 Inputs / 4 Outputs |
Patterns |
Dots, Line, Potting, Filling, Encapsulation, Sealing, Coating, Jetting |
Power Supply |
AC110V/220V )Internal conversion |
Working Temperature |
0-40°C |
Relative Humidity |
20-90% (no condensation) |
Dimensions (W x D x H) cm |
65x55x65 |
Weight with packed |
50kgs |
Customizable:
1.Input /Oput singal
workrange
3.add pick and place function
Quality guarantee
We provide 2 years warranty of product and shipment with one set fitting to you
