Specifications
Long and stable work well,high-quality productsProfessional dispensing software,Easy to learn and operation it
Easy maintenan
Model:
TH-2004D-300ML Hot melt adhesive coating machine/ hot melt glue spraying machine
Hot Melt Adhesive coating Machine-hot melt tank controller Replace the manual dispensing hot melt glue in a variety of flat or curved surfaces of work-piece.Adaptable to a variety of hot melt adhesive

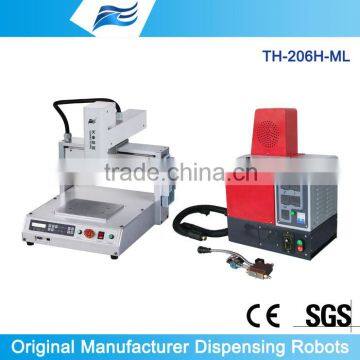

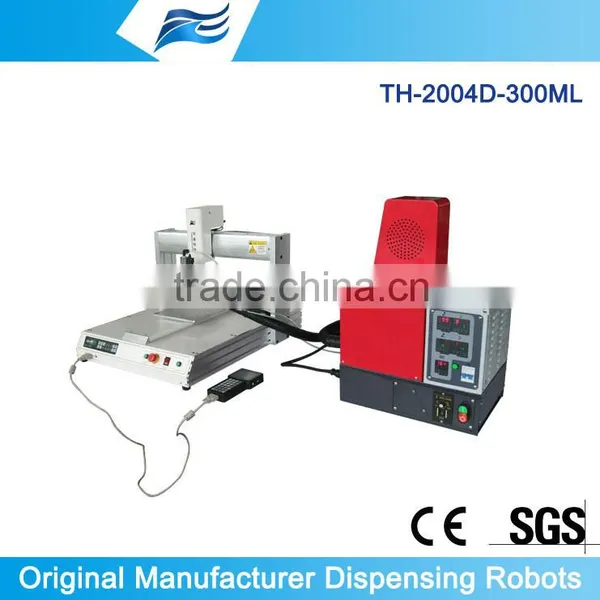

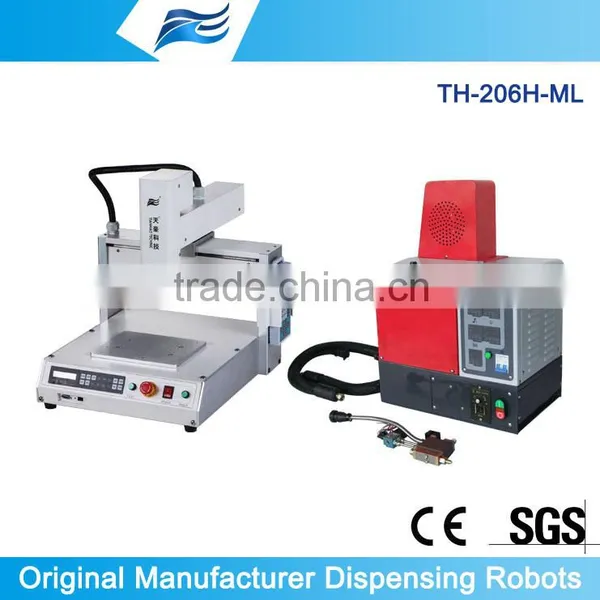

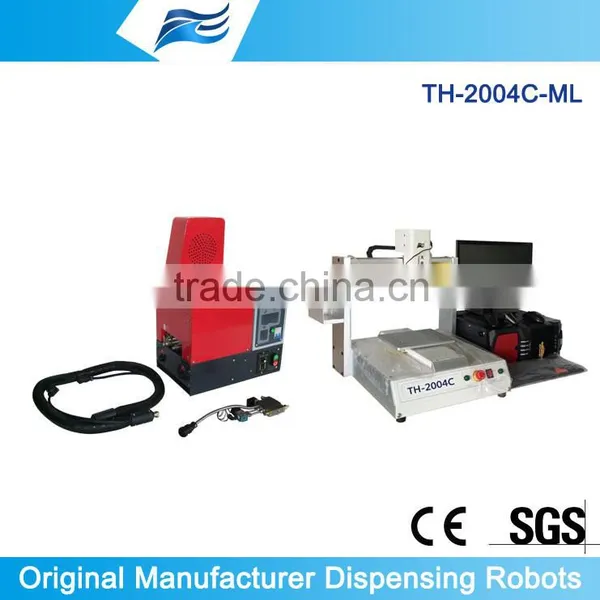

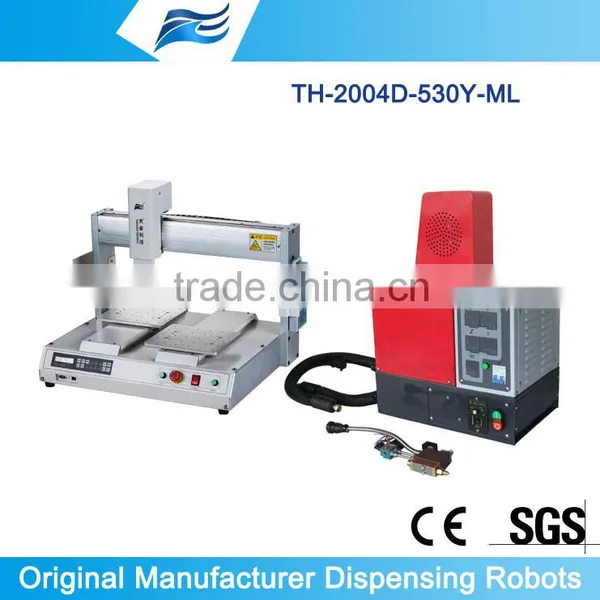

Product pictures: Hot melt adhesive coating machine/ hot melt glue spraying machine
Sales Points/Focus and Structure picture: Hot melt adhesive coating machine/ hot melt glue spraying machine
1.Automatic finish hot melt glue dispensing and coating, spraying process.2. the Z-2.axis have brake motors, greatly increasing the stability of the equipment and its motion accuracy.when that 6kg maximum z axis load will remain in a upper position after switching off the power.
3. Tianhao graphics editing software can import such as NC, AI, DXF, JPG, BMP and other format files
4. Professional dispensing software based entirely on the dispensing process development.
5. PLC Controller, Easy to program - Dedicated dispensing software eliminates the need for complex robot language programming.
6. Increase the parameters display with programmer, which will provide you more intuitive operation.
7. Each axis with 2 linear guide rail will provide you better stability.
8. Simplifies robot and master control systems, high speed capabilities, large work envelope.
9. As customer production require add the I / O interface, easy add other device for the equipment
10. Single machine can operate.Avoid staff misuse, or change has set a good program
11.XY/Z Maximum Load 15KGS/6KGS
12.Repeatability: +-0.01 mm/ axis,3 axis synchronous work get +-0.01 mm/axis, other competitors no possible 3 axis get this precision at same time.
13.Transmission:new timing belt/precision linear Guides
14.Drive System: new precision micro-stepper motor
15.Single machine can operate.Avoid staff misuse, or change has set a good program
16.Flexible power supply design for overseas use.
Main specification
ITEM |
TH-2004D-300ML |
TH-2004D-400ML |
TH-2004D-500ML |
X/Y/Z working range |
300 x 300 x 100mm |
400 x 400 x 100mm |
500 x 500 x 100mm |
Standard |
CE Approved |
||
XY/Z Maximum Load |
15 kg / 6 kg |
||
XY/Z Speed |
0.1-800/350 mm/Axis |
||
Repeatability |
±0.01mm/Axis |
||
Data memory capacity |
999programs |
||
Display way |
LCD display |
||
Drive System |
Precision micro-stepper motor |
||
Transmission |
Timing Belt/ Precision Linear Guides |
||
Edit Programming |
Handheld Programmer |
||
I/O Signals |
4 Inputs / 4 Outputs |
||
Patterns |
Spaying, Dots, Line, Potting, Filling, Encapsulation, Sealing, Coating, Jetting |
||
Power Supply |
AC110V/220V Internal conversion |
||
Working Temperature |
0-40 °C |
||
Relative Humidity |
20~90% (no condensation) |
||
Dimensions (W x D x H) mm |
65X55X65 |
75x64x65 |
101x83X93 |
Weight |
50kgs |
55kgs |
63kgs |
Complete accessories dispensing kit
No |
Name |
ITEM |
QTY |
Part# |
1 |
TH-2004D Robotic |
TH-2004D |
1pcs |
TH-2004D |
2 |
Hot melt tank controllers |
TH-143 |
1pcs |
TH-2004AB |
3 |
Dispenser fix frame |
TH |
1pcs |
TH-DXF03 |
4 |
Dispensing signal line |
3core-4core |
1pcs |
TH-DSL02 |
5 |
Teach pendant/fix frame |
TH |
1pcs |
TH-DT001 |
6 |
Teach pendant Cable line |
TH |
1pcs |
TH-DTC01 |
7 |
Fix broad for valve |
TH |
1pcs |
THDXF04 |
8 |
Heating valve |
TH |
1PCS |
|
9 |
Valve heads |
TH |
1pcs |
|
10 |
Air tube |
|
|
THA |
11 |
Workpiece |
TH |
1SET |
|
12 |
Connect Drawing. |
TH |
1set |
|
13 |
Tool |
TH |
1set |
|
14 |
Screw |
TH |
1set |
TH-DS05 |
15 |
Manual operation |
TH |
1pcs |
|
16 |
CD |
TH |
1pcs |
|
17 |
Ex-work Report |
TH |
1pcs |
|
18 |
Machinery certificate |
TH |
1pcs |
|
19 |
Warranty card |
TH |
1pcs |
|
20 |
CE certificate |
TH |
1pcs |
|
21 |
Catalogue |
TH |
1pcs |
Package:
Items per Carton: |
1 Units / Carton |
Package Measurements: |
85X75X78 CM |
Gross Weight: |
65 KG |
Delivery in 3 workday after received your payment
Shipping ways by TNT.ups,dhl.fedex
Loading port:Ningbo or shanghai
Our Service: Your satisfactory, our pursuit!
1,Your inquiry will be replied in 24 hours.
2,Offer free spare parts and service within one year of warranty,
3,Technology Support Provide Demo operation video for training; If you have time,
welcome to our company, Will arrange engineers to show you the operation.
4, Professional after-sales service team;
5,Give great discount to AGENCY to ensure agents profit.
Our product can help you to achieve the goal :
- Increase production efficiency
- Promotion processing precision control
- Improve product quality
- lower production costs, reduce rejected product
- Eliminate material waste
Available Dispensed Material
UV glue, instant glue,silica gel, hot melt adhesive, red glue, silver glue, AB glue, EPOXY resin, COB black glue, white glue, conductive glue, thermal paste, solder paste, transparent paint, etc.
Application Area
1. Electrical Products: Electronic parts, integrated circuits, circuit board solder paste, fixed and dust and moisture protection, LCD liquid crystal screen, speakers, headphone, audio, LED, optical lens, SMD transformers, relays.
2. Communication Products: Keypad, mobile phone casing bonding, radio, telephone, Computers, MP4, electronic toys, chassis bonding, switches, connectors, plug cable.
OUR CERTIFICATE
We provide 1 years warranty of product and shipment with one set fitting to you
Factory Show
Production room
Warehouse
Our advantages:
1. Original Manufacturer/factory
2. High reputation around the china
3. 10 years experience of glue dispensing machine
4. Best quality and good work
5. High grade components
6. Special dispensing software, both Chinese and English interface
7. Professional service and technology support
8. All models with CE approved;
9. OEM services accepted

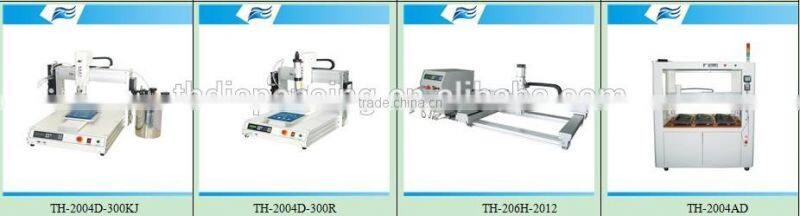

Our product:
- 4 Axis dispensing robot.XYZ dispensing robots- for full automated and high precision ,high efficiency production processes control
- Dispenser.mix/meter dispensing system - for manual assembly processes
- Threadlocking adhesives coating machine-suitable for thread coating processes
- Rotary table Dispensing machine- for dispensing circular beads on circular, semi-circular, oval, product
- Valve, tank-for automated production lines
- Highest quality dispensing tips ,syringe barrels
- Other disposable components
