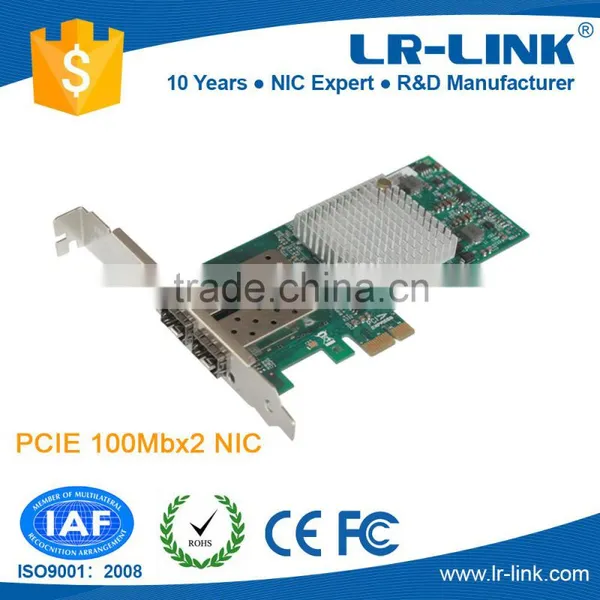

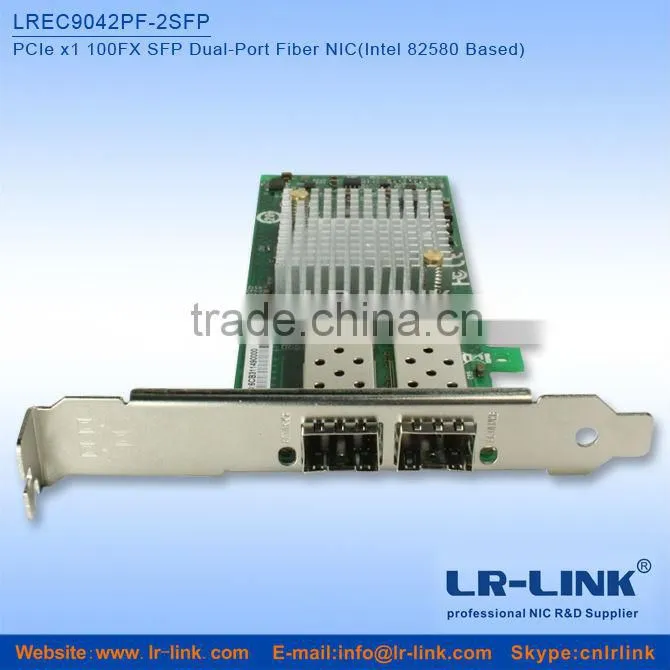

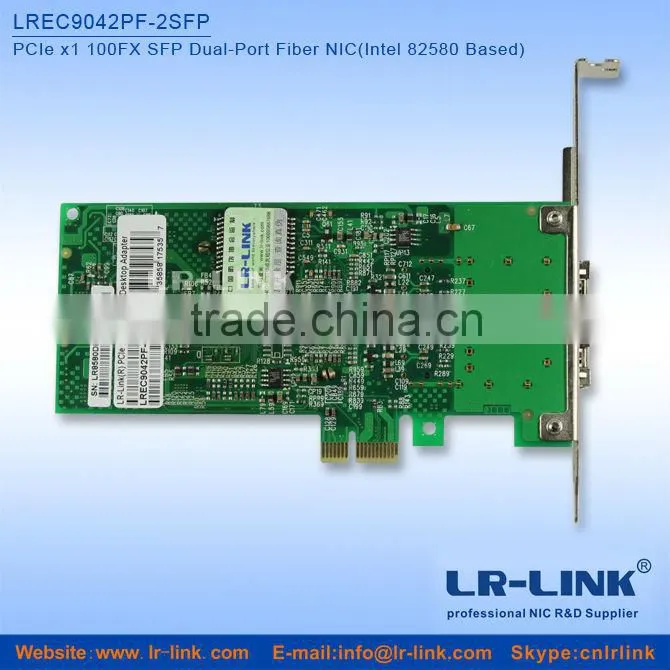

LREC9042PF-2SFP Intel 82580EB PCIe x1 100FX Dual SFP Port Fiber optic LAN Card
Key Features
Dual high-performing 100FX Ethernet connections
Low power high performing bridgeless design supporting PCI Express* Gen 2.0 5 GT/s
Environmentally-friendly lead-free adapter
Hardware acceleration for TCP-IP and iSCSI
Hardware optimizations for virtualized servers
Reliable and proven Gigabit Ethernet technology from Intel Corp.
Based on the new Intel 82580 Gigabit Ethernet Controller,
LREC9042PF-2SFP Adapter is LR-LINK’s fourth generation of PCIe 100Mbps adapter. This adapter provides a smaller footprint and lower power dissipation. In addition, the LREC9042PF-2SFP Adapter offers advanced features, including support for multi-core processors and server virtualization, as well as a scalable PCI Express Gen2.0 interface.
Halogen-Free1
Designed for Multi-Core Processors
Support for iSCSI
Optimized for Virtualization
The LR-LINK LREC9042PF-2SFP Adapter showcases a suite of hardware assists that improves overall system performance by lowering the I/O overhead in a virtualized environment. This optimizes CPU usage, reduces system latency, and improves I/O throughput. These features include:
• Virtual Machine Device Queues (VMDq)
• Intel I/O Acceleration Technology (Intel I/OAT)
Virtual Machine Device queues (VMDq)
VMDq reduces I/O overhead on the hyper visor in a virtualized server by performing data sorting and coalescing in the network silicon. VMDq technology makes use of multiple queues in the network controller. As data packets enter the network adapter, they are sorted, and packets traveling to the same destination (or virtual machine) get grouped together in a single queue. The packets are then sent to the hyper visor, which directs them to their respective virtual machines. Relieving the hyper visor of packet filtering and sorting improves overall CPU usage and throughput levels.
Reliable Performance
The adapter includes a number of advanced features that enable it to provide industry-leading quad-port 1GbE performance and reliability.
PCIe* v2.0 (5GT/s)
PCIe v2.0(5GT/s) support enables customers to take full advantage of the 100Mbps by providing a maximum of 2.0 Gbps bidirectional throughput per port on a single quad-port card.
For today’s demanding virtualized data center environments, the new LR-LINK LREC9042PF-2SFP Adapter delivers ultimate flexibility and scalability.
General Features
Intel® 82580 Ethernet Controller
PCI Express* V2.0 (5 GT/s) Support
Low-Profile and Standard height full
remote boot support
Load balancing on multiple CPUs
Compatible with x4, x8, and x16 standard and low-profile PCI Express* slots
Multi-port design
Support for most network operating systems (NOS)
Intel® PROSet Utility for Windows* Device Manager
I/O Virtualization Features
MSI-X support
Low Latency Interrupts
Header Splits and Replication in Receive
Multiple Queues: 8 queues per port
Tx/Rx IP, SCTP, TCP, and UDP checksum offloading (IPv4, IPv6) capabilities
Tx TCP segmentation offload (IPv4, IPv6)
Receive and Transmit Side Scaling for Windows environment and Scalable I/O for Linux* environments (IPv4, IPv6, TCP/UDP)
Virtualization Features
VMDq
Advanced Packet Filtering
VLAN support with VLAN tag insertion, stripping and packet filtering for up to 4096 VLAN tags
Manageability Features
Advanced filtering capabilities
Preboot eXecution Environment (PXE) Support
Simple Network Management Protocol (SNMP) and
Remote Network Monitoring (RMON) Statistic Counters
Wake-on-LAN support
iSCSI Boot
Watchdog Timer
IEEE 1588 precision time control protocol
Advanced Software Feature
Adapter fault tolerance (AFT)
Switch fault tolerance (SFT)
Adaptive load balancing (ALB)
Teaming support
IEEE 802.3ad (link aggregation control protocol)
Test switch configuration: Tested with major switch original equipment manufacturers (OEMs)
PCIe Hot Plug*/Active periphera; component interconnect (PCI)
IEEE 802.1Q* VLANs
IEEE 1588 Precision Time Control Protocol
IEEE 802.3 2005* flow control support
Tx/Rx IP,TCP& UDP checksum offloading(IPv4, IPv6) capabilities control protocol(TCP),user datagram protocol
(UDP), Internet protocol (IP)
IEEE 802.1p*
TCP segmentation large send offload
MSI-X supports Multiple Independent Queues
Interrupt moderation
IPv6 offloading — Checksum and segmentation capability extendedto new standard packet type
Adapter Product Features
Intel® PROSet Utility
Plug and play specification support
Intel® I/O Acceleration Technology (Intel® I/OAT)

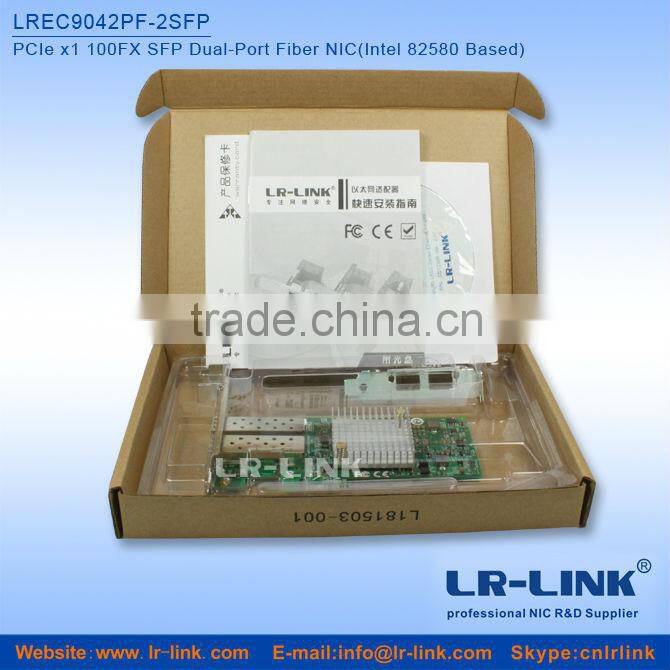

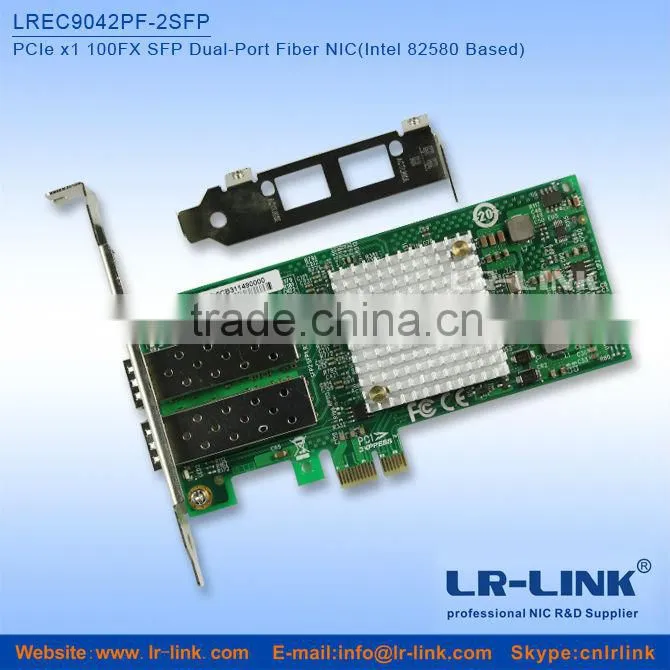

Ships with full-height bracket installed; low-profile bracket included in package
Technical Features
Data rate supported per port: 100Mbps
Bus type: PCI Express* 2.1 (5 GT/s))
Bus width: 1-lane PCI Express; operable in x1,x4, x8 and x16 slots
Interrupt levels: INTA, INTB, INTC, INTD, MSI, MSI-X
Controller-processor: Intel 82580 Ethernet Controller
Power consumption (typical): 6.0 W
Storage temperature: -40 °C to 70 °C (-40 °F to 158 °F)
Operating temperature :0 °C to 55 °C (32 °F to 131 °F)
Storage humidity: 90% non-condensing relative humidity at 35 °C
Network Operating Systems (NOS) Software Support
Windows* Vista* SP2
Windows Server* 2003 SP2
Windows* Unified Storage Solution 2003
Windows Server 2008 SP2
Windows Server 2008 R2
Windows 7
Linux* Stable Kernel version 2.6
Linux RHEL 4.8.
Linux RHEL 5.4
Linux SLES 10 SP3
Linux SLES 11
FreeBSD* 8.0
FreeBSD*7.2
UEFI* 2.1
VMware ESX* 4.x
