Specifications
1,Intel 82580 Based2,1000BASE-LX Ethernet Single-mode connections
3,Support remote boot,MSI-X and Wake-on-LAN and ISCSI

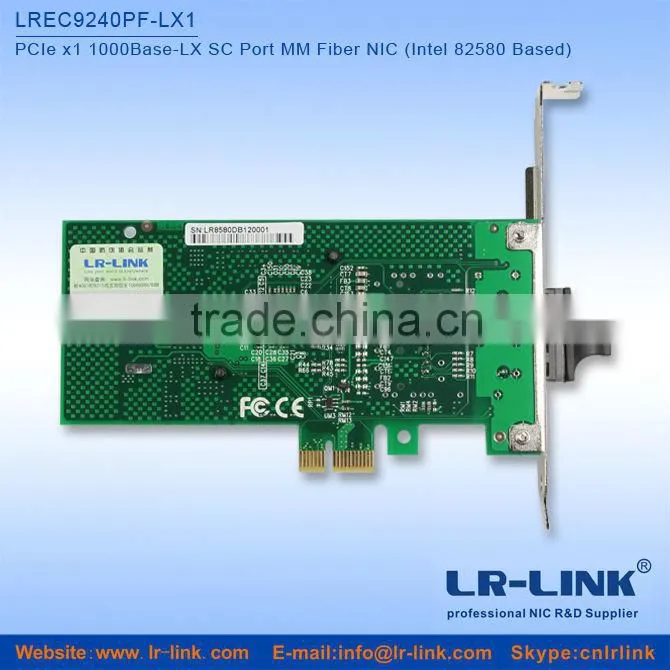

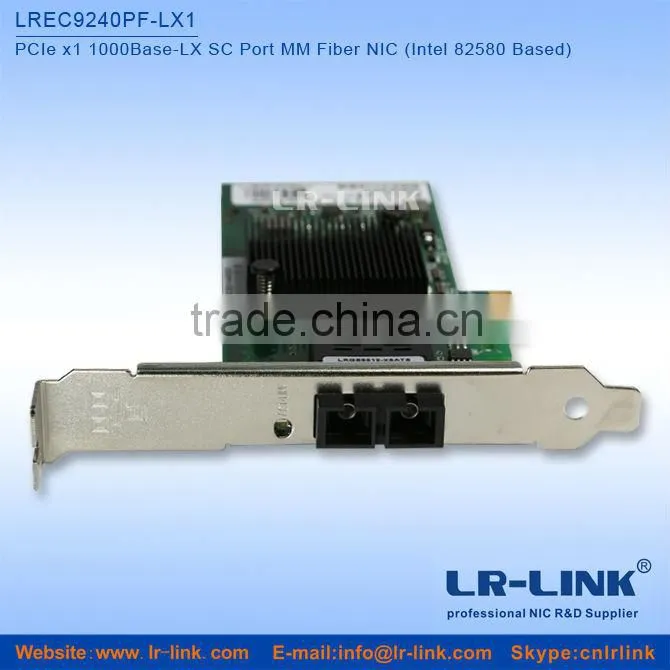

LREC9240PF-LX PCIe x1 1000Base-LX SC Port MM Fiber NIC (Intel 82580 Based)
Single-port Gigabit Ethernet adapter designed for multi-core processors and optimized for Virtualization & Unified Networking Environments
Key Features
A high-performing 1000BASE-LX Single-mode Ethernet connections
Low power high performing bridgeless design supporting PCI Express* Gen 2.0 5 GT/s
Environmentally-friendly lead-free adapter
Hardware acceleration for TCP-IP and iSCSI
Hardware optimizations for virtualized servers
Reliable and proven Gigabit Ethernet technology from Intel Corp.
Based on the new Intel 82580 Gigabit Ethernet Controller,LREC9240PF-LX Server Adapter is LR-LINK’s fourth generation of PCIe GbE adapter. This adapter provides a smaller footprint and lower power dissipation. In addition, the LREC9240PF-LX Adapter offers advanced features, including support for multi-core processors and server virtualization, as well as a scalable PCI Express Gen2.0 interface.
Designed for Multi-Core Processors
This adapter provides high-performing, Gigabit connectivity in a multi-core platform as well as in a virtualized environment. In a multi-core platform, the adapter supports technologies such as MSI-X, and Low Latency Interrupts that help accelerate data across the platform, improving application response times.
Support for iSCSI
LR-LINK LREC9240PF-LX server adapters with native iSCSI initiators built into Microsoft® Windows®, Linux®, and VMware® ESX platforms provide a simple, dependable, cost-effective way to connect to LANs and iSCSI SANs. LREC9240PF-LX server adapter includes a number of hardware features designed to accelerate iSCSI traffic and enhance data processing. The adapters are designed to flexibly scale workloads across multi-core processor–based systems. Finally, using native OS initiators, an LR-LINK LREC9240PF-LX Server Adapter enables support for the CRC-32 digest instruction set included in the Intel Xeon® processor 5500 series, which improves transmission reliablity and thus delivers an enterprise class iSCSI solution for the IT customer.
Optimized for Virtualization
The LR-LINK LREC9240PF-LX Server Adapter showcases a suite of hardware assists that improves overall system performance by lowering the I/O overhead in a virtualized environment. This optimizes CPU usage, reduces system latency, and improves I/O throughput.
Virtual Machine Device queues (VMDq)
VMDq reduces I/O overhead on the hypervisor in a virtualized server by performing data sorting and coalescing in the network silicon. VMDq technology makes use of multiple queues in the network controller.
Reliable Performance
The adapter includes a number of advanced features that enable it to provide industry-leading quad-port 1GbE performance and reliability.
PCIe* v2.0 (5GT/s)
PCIe v2.0(5GT/s) support enables customers to take full advantage of the 1GbE by providing a maximum of 2.0 Gbps bidirectional throughput per port on a single quad-port card.
General Features
Intel® 82580 Gigabit Ethernet Controller with
PCI Express* V2.0 (5 GT/s) Support
Load balancing on multiple CPUs
Compatible with x4, x8, and x16 standard and low-profile PCI Express* slots
Multi-port design
Support for most network operating systems (NOS)
Intel® PROSet Utility for Windows* Device Manager
I/O Virtualization Features
MSI-X support
Low Latency Interrupts
Header Splits and Replication in Receive
Multiple Queues: 8 queues per port
Tx/Rx IP, SCTP, TCP, and UDP checksum offloading (IPv4, IPv6) capabilities
Tx TCP segmentation offload (IPv4, IPv6)
Virtualization Features
VMDq
Advanced Packet Filtering
VLAN support with VLAN tag insertion, stripping and packet filtering for up to 4096 VLAN tags
Manageability Features
Advanced filtering capabilities
Preboot eXecution Environment (PXE) Support
Simple Network Management Protocol (SNMP) and
Remote Network Monitoring (RMON) Statistic Counters
Wake-on-LAN support
iSCSI Boot
Watchdog Timer
IEEE 1588 precision time control protocol
Advanced Software Feature
Adapter fault tolerance (AFT)
Switch fault tolerance (SFT)
Adaptive load balancing (ALB)
IEEE 802.3ad (link aggregation control protocol)
Test switch configuration: Tested with major switch original equipment manufacturers (OEMs)
PCIe Hot Plug*/Active periphera; component interconnect (PCI)
IEEE 802.1Q* VLANs
IEEE 1588 Precision Time Control Protocol
IEEE 802.3 2005* flow control support
Tx/Rx IP,TCP& UDP checksum offloading(IPv4, IPv6) capabilities control protocol(TCP),user datagram protocol
(UDP), Internet protocol (IP)
TCP segmentation large send offload
MSI-X supports Multiple Independent Queues
IPv6 offloading — Checksum and segmentation capability extendedto new standard packet type
Adapter Product Features
Intel® PROSet Utility
Plug and play specification support
Intel® I/O Acceleration Technology (Intel® I/OAT)

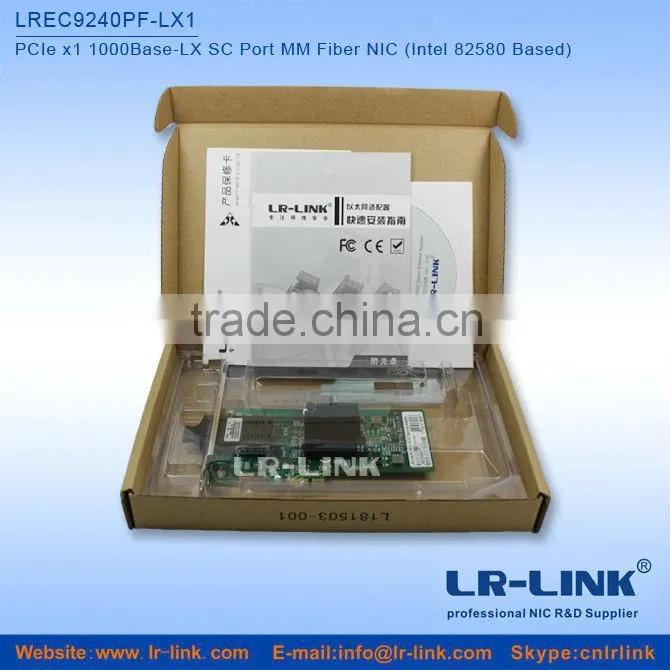

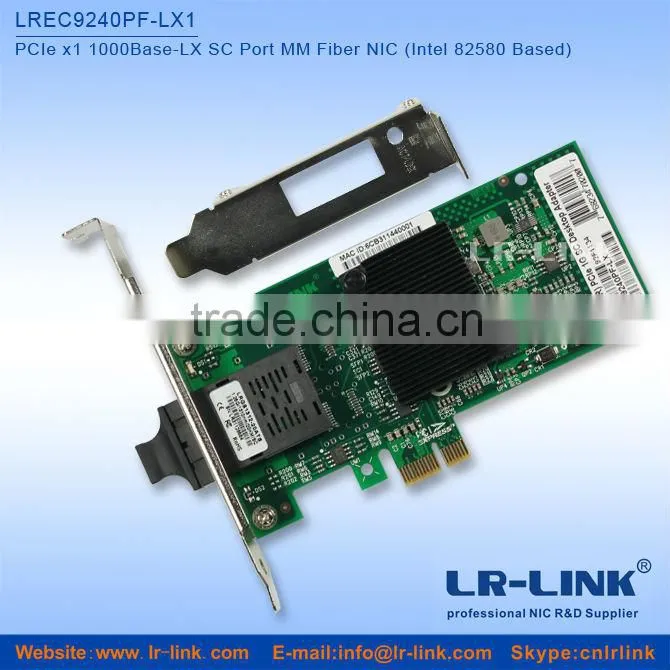

Ships with full-height bracket installed; low-profile bracket included in package
Technical Features
Bus type: PCI Express* 2.1 (5 GT/s))
Bus width: 1-lane PCI Express; operable in x1,x4, x8 and x16 slots
Interrupt levels: INTA, INTB, INTC, INTD, MSI, MSI-X
Controller-processor: Intel 82580 Gigabit Ethernet Controller
Power consumption (typical): 6.0 W
Storage temperature: -40 °C to 70 °C (-40 °F to 158 °F)
Operating temperature :0 °C to 55 °C (32 °F to 131 °F)
Storage humidity: 90% non-condensing relative humidity at 35 °C
Network Operating Systems (NOS) Software Support
Windows* Vista* SP2
Windows Server* 2003 SP2
Windows* Unified Storage Solution 2003
Windows Server 2008 SP2
Windows Server 2008 R2
Windows 7
Linux* Stable Kernel version 2.6
Linux RHEL 4.8.
Linux RHEL 5.4
Linux SLES 10 SP3
Linux SLES 11
FreeBSD* 8.0
FreeBSD*7.2
UEFI* 2.1
VMware ESX* 4.x
Order Information:
M/N |
Description |
Notes |
LREC9240PF-LX |
PCIe x1 1000Base-LX SC Port MM Fiber NIC (Intel 82580 Based)
|
1.25Gbps 1310nm 10Km at 9um
|
PS: The above details is just for reference, if there is any change, no prior notice .
