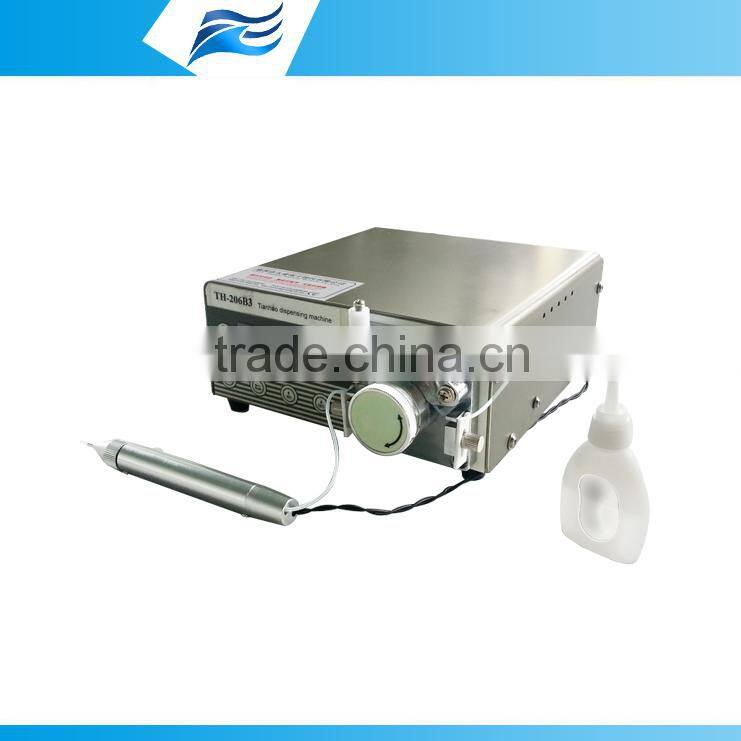

T&H Peristaltic Pump Dispenser with LCD display screen
Sales Points/Focus
The TH-206B3 peristaltic pump dispenser transfers low viscosity liquids by pressure displacement applied to a turning rotor against a tube carrying material. Usually these pumps are chosen because the liquids are hazardous or difficult to work with and it is advisable to limit operator contact. Another reason is that peristaltic pumps are air free.
Models
T&H-206B3 Dispenser 110V-CE
T&H-206B3 Dispenser 220V-CE
TH-206B3 is a reliable and effective volumetric dispenser for single-component, low viscosity adhesives. It is great for precise dosing or applications that require a specific flow rate. The dispenser is electro-mechanically operated and does not require the use of an air source. It transfers liquids via pressure displacement applied by a rotor turning against a teflon tube that carries the material from the bottle to a hand-held dispense valve. Provides a volumetric dispensing of non-thixotropic materials such as cyanoacrylates, anaerobics, UV products, or solvents up to a viscosity of 1000 cPs.
Features
l Air-free dispensing eliminates air in product
l Snuff-back prevents post-dispense dripping
l Simple load mechanism also provides easy cleaning
l Manual or Timed modes
l Large digital LED display
l Clean room compatible
l Instant reverse for vacuum suck-back; shuts off the flow of liquid and prevents dripping
l Virtually no wasting of adhesive since it travels from the product bottle, through the feeding tubing, and onto the part.Clean room compatible
Specification
Item |
TH-206B |
Standard |
CE Approved |
Dispense time |
0.01-99.99 seconds |
Internal voltage |
5VDC |
Input voltage |
AC110V-240V models 50/60HZ |
Rotor speed |
0~200 rpm(max.) |
Cycle initiation: |
Continuous&timed, LCD display |
Digital display: |
time count down |
Rotor Speed: |
up to 120 rpm (max.) |
Flow speed: |
0.01 - 6ml/min. (Teflon tube) |
Dispense pressure |
over 1.5Kg/cm2 |
Direction of pump: |
both direction (Forward / Reverse) |
Snuff-back: |
programmable by reverse rotation |
Min output |
0.0001ml |
viscosity |
Less 10000cps |
Power Supply |
60Hz AC220V+/-10% 50Hz |
power |
30VA |
Working Temperature |
0 ~40℃ |
Relative Humidity |
20~90% (no condensation) |
Quality guarantee
We provide 1years warranty of product and shipment with one set fitting to you
PackingInformation
