New Product USB3.0 Gigabit Fiber NIC Network Interface Card (Based Realtek RTL8153-CG Chipset)

Shenzhen LR-LINK Electronics Co., Ltd.
New Product USB3.0 Gigabit Fiber NIC Network Interface Card (Based Realtek RTL8153-CG Chipset) thumbnail-1
New Product USB3.0 Gigabit Fiber NIC Network Interface Card (Based Realtek RTL8153-CG Chipset) thumbnail-2
New Product USB3.0 Gigabit Fiber NIC Network Interface Card (Based Realtek RTL8153-CG Chipset) thumbnail-3
New Product USB3.0 Gigabit Fiber NIC Network Interface Card (Based Realtek RTL8153-CG Chipset) thumbnail-4
New Product USB3.0 Gigabit Fiber NIC Network Interface Card (Based Realtek RTL8153-CG Chipset) thumbnail-5
New Product USB3.0 Gigabit Fiber NIC Network Interface Card (Based Realtek RTL8153-CG Chipset) photo-1

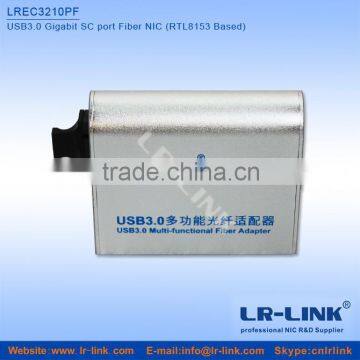

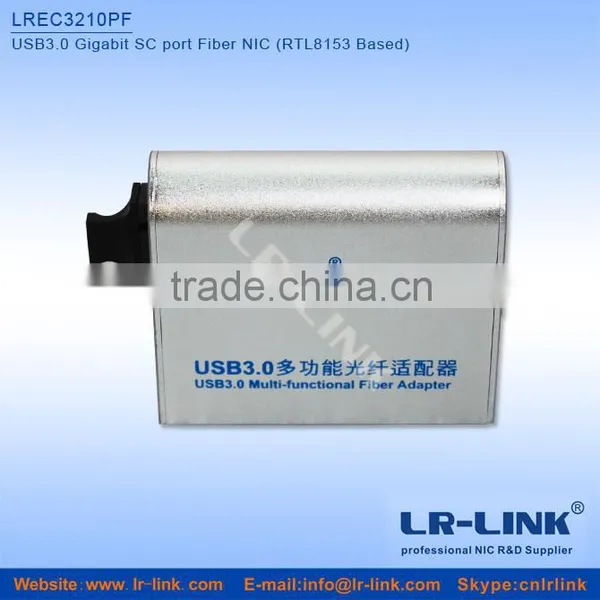

New Product USB3.0 Gigabit Fiber NIC Network Interface Card (Based Realtek RTL8153-CG Chipset) photo-2

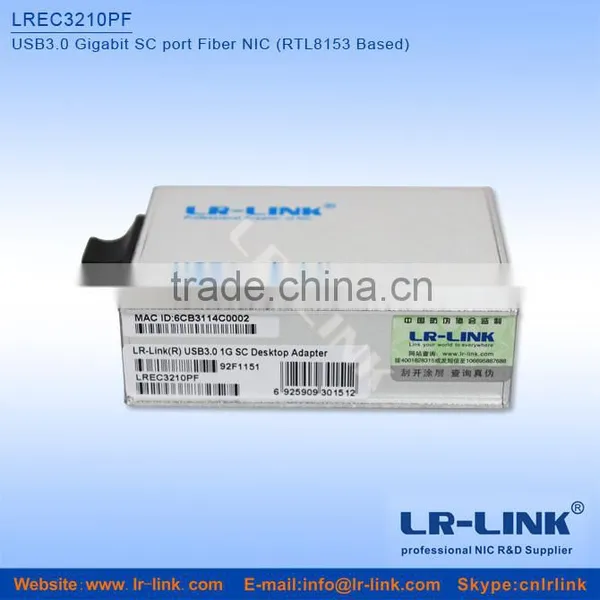

New Product USB3.0 Gigabit Fiber NIC Network Interface Card (Based Realtek RTL8153-CG Chipset) photo-3

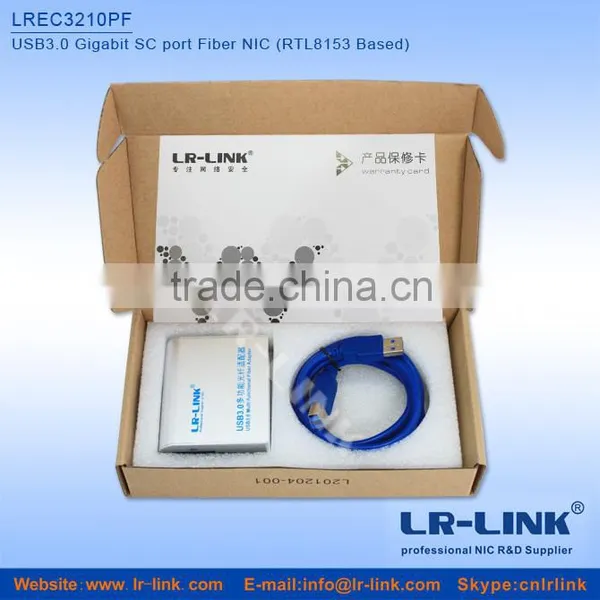

New Product USB3.0 Gigabit Fiber NIC Network Interface Card (Based Realtek RTL8153-CG Chipset) photo-4
New Product USB3.0 Gigabit Fiber NIC Network Interface Card (Based Realtek RTL8153-CG Chipset) photo-5
Negotiable MOQ: 10 Pieces (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Products Status:
Stock
Application:
Desktop
Type:
Wired
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen or HongKong
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Products Status Stock
Application Desktop
Type Wired
Kind External
Transmission Rate 1000Mbps
Interface Type USB
Certification CE,FCC,ROHS
Brand Name LR-LINK
Model Number LREC3210PF
Place of Origin Guangdong, China

LR-LINK LREC3210PF New Product USB3.0 Gigabit Fiber NIC (Based Realtek RTL8153-CG Cjipset)





LREC3210PF is a USB3.0 fiber network interface card developed by Shenzhen Lianrui electronic Company. It is independently researched and developed by Lianrui R&D team and is widely applied in high-end application occasion by the high-end customer cluster.



LREC3210PF is completely different from the mini network interface card (NIC)with plastic shell in nature. It is unique in current market due to aluminium shell to ensure the high performance of USB3.0 fiber NIC with specific appearance design. It can be either upright or horizontal as you like. The elegant appearance can enhance the glorious outlook in the office. Besides, aluminium shell has the good thermal dissipation overcoming the shortage of the plastic shell to ensure the reliability and working stability, it offers well-deserved reputation of “classic” in the market



LREC3210PF can solve the problems arising from the traditional integrated computer that fiber access can be realized only by fiber transceiver (transfer from light signal to electronic signal). LR-link offers optimal design in adopting small pluggable slot that can be compatible all SFP gigabit module through exchanging SFP modules to maximize the usage needs for various networking environments. By testing, under USB3.0, transmission rate will reach to the maximization of gigabit speed 1000Mbit/S so as to accord with the huge data transmission requirements.





Product Description



LREC3210PF based Realtek RTL8153-CG 1000M Ethernet controller combines an IEEE 802.3u compliant Media Access Controller (MAC), USB 3.0 bus controller, and embedded memory. With state-of-the-art DSP technology and mixed-mode signal technology, the LREC3210PF offers high-speed transmission over CAT 5 UTP cable or CAT 3 UTP (10Mbps only) cable. Functions such as Crossover Detection and Auto-Correction, polarity correction, adaptive equalization, cross-talk cancellation, echo cancellation, timing recovery, and error correction are implemented to provide robust transmission and reception capabilities.



The LREC3210PF features USB 3.0 to provide higher bandwidth and improved protocols for data exchange between the host and the device. USB 3.0 also offers more advanced power management features for energy saving.



The LREC3210PF Advanced Configuration Power management Interface (ACPI)—power management for modern operating systems that are capable of Operating System-directed Power Management (OSPM)—is supported to achieve the most efficient power management possible. In addition to the ACPI feature, remote wake-up (including AMD Magic Packet and Microsoft Wake-Up Frame) is supported in both ACPI and APM (Advanced Power Management) environments.





The LREC3210PF network interface card supports Microsoft Wake Packet Detection (WPD) to provide Wake-Up Frame information to the OS, e.g., PatternID, OriginalPacketSize, SavedPacketSize, SavedPacketOffset, etc. WPD helps prevent unwanted/unauthorized wake-up of a sleeping computer.



The LREC3210PF supports Protocol offload. It offloads some of the most common protocols to NIC hardware in order to prevent spurious wake-up and further reduce power consumption. The LREC3210PF can offload ARP (IPv4) and NS (IPv6) protocols while in the D3 power saving state.



The LREC3210PF supports the ECMA (European Computer Manufacturers Association) proxy for sleeping hosts standard.



The LREC3210PF supports IEEE 802.3az-2010, also known as Energy Efficient Ethernet (EEE). IEEE 802.3az-2010 operates with the IEEE 802.3 Media Access Control (MAC) Sublayer to support operation in Low Power Idle mode. When the Ethernet network is in low link utilization, EEE allows systems on both sides of the link to save power.



The LREC3210PF is fully compliant with Microsoft NDIS5, NDIS6 (IPv4, IPv6, TCP, UDP) Checksum features, and supports IEEE 802 IP Layer 2 priority encoding and IEEE 802.1Q Virtual bridged Local Area Network (VLAN). The above features contribute to lowering CPU utilization, especially benefiting performance when in operation on a network server.



The LREC3210PF is suitable for multiple market segments and emerging applications, such as desktop, mobile, workstation, server, communications platforms, docking station, and embedded applications.





  • Fiber Port supports 1000Mbase-SX/LX standard;
  • Supports USB 3.0, 2.0, and 1.1
  • Supports LPM (Link Power Management)
  • Supports pair swap/polarity/skew correction
  • Crossover Detection & Auto-Correction
  • Supports Wake-On-LAN and ‘RealWoW!’ (Wake-On-WAN) Technology (see note 1)
  • Supports power down/link down power saving
  • Transmit/Receive on-chip buffer support
  • Supports hardware CRC (Cyclic Redundancy Check) function
  • Microsoft NDIS5, NDIS6 Checksum Offload (IPv4, IPv6, TCP, UDP) and Segmentation Task-offload (Large send v1 and Large send v2) support
  • Supports jumbo frame to 9K bytes
  • Supports Full Duplex flow control (IEEE 802.3x)
  • Fully compliant with IEEE 802.3 and IEEE 802.3u
  • Supports IEEE 802.1P Layer 2 Priority Encoding
  • Supports IEEE 802.1Q VLAN tagging
  • Supports IEEE 802.3az-2010 (EEE)



Operating System

+windows xp 32bit/64bit

+windows vista 32bit/64bit

+windows 7 32bit/64bit

+windows 8 and 8.1 32bit/64bit

+linux



Ordering information:

Model

Product Name

Remark

LREC3210PF-SFP

USB3.0 Gigabit SFP Fiber NIC

LC Connector,exclude SFP Module

LREC3210PF

USB3.0 1000Base-SX Fiber NIC (SC Connector)

SC Connector,850nm,0.5Km

LREC3210PF-LX

USB3.01000Base-LX Fiber NIC (SC Connector)

SC Connector,1310nm,10Km
