Intel I350 PCI Express x4 4 Port SFP Gigabit Fiber Server LAN Card

Shenzhen LR-LINK Electronics Co., Ltd.
Intel I350 PCI Express x4 4 Port SFP Gigabit Fiber Server LAN Card thumbnail-1
Intel I350 PCI Express x4 4 Port SFP Gigabit Fiber Server LAN Card thumbnail-2
Intel I350 PCI Express x4 4 Port SFP Gigabit Fiber Server LAN Card thumbnail-3
Intel I350 PCI Express x4 4 Port SFP Gigabit Fiber Server LAN Card thumbnail-4
Intel I350 PCI Express x4 4 Port SFP Gigabit Fiber Server LAN Card thumbnail-5
Intel I350 PCI Express x4 4 Port SFP Gigabit Fiber Server LAN Card photo-1

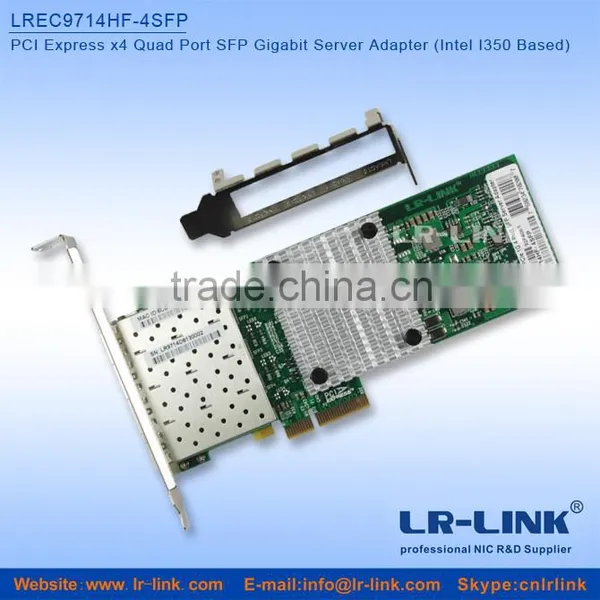

Intel I350 PCI Express x4 4 Port SFP Gigabit Fiber Server LAN Card photo-2

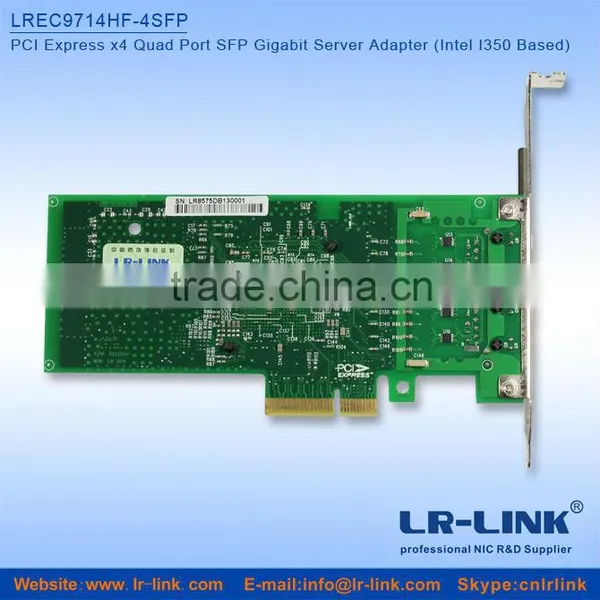

Intel I350 PCI Express x4 4 Port SFP Gigabit Fiber Server LAN Card photo-3

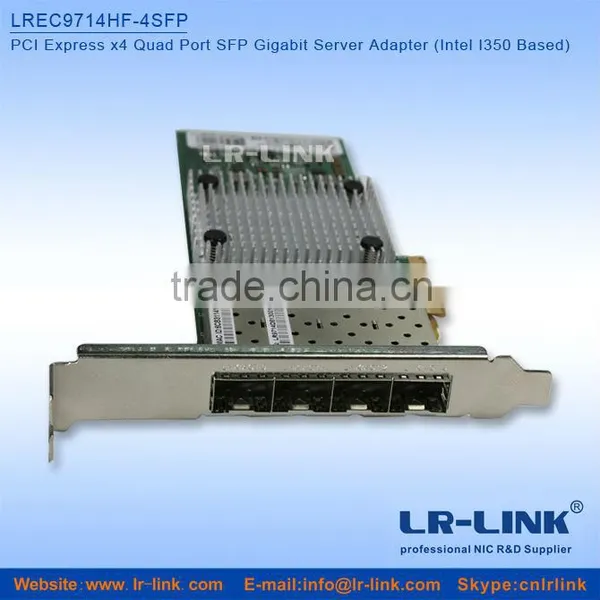

Intel I350 PCI Express x4 4 Port SFP Gigabit Fiber Server LAN Card photo-4

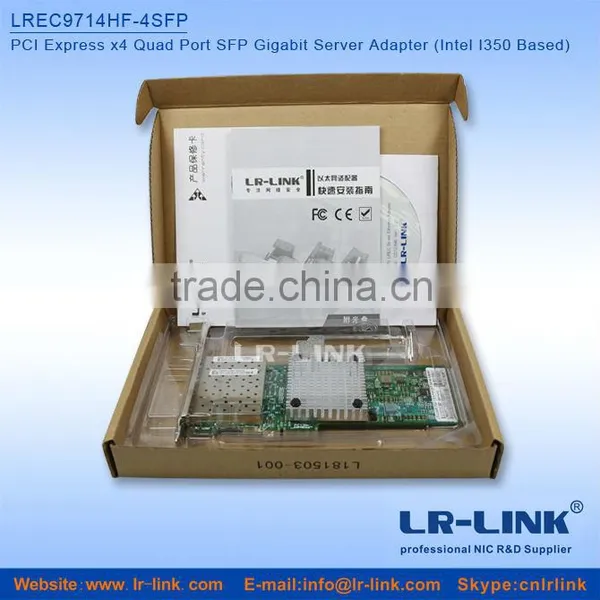

Intel I350 PCI Express x4 4 Port SFP Gigabit Fiber Server LAN Card photo-5
Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Products Status:
Stock
Application:
Other, Server, Server
Type:
Wired
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
SHENZHEN
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Products Status Stock
Application Other, Server, Server
Type Wired
Kind Internal
Transmission Rate 1000Mbps
Interface Type PCI Express
Certification CE,FCC,ROHS
Brand Name LR-LINK
Model Number LREC9714HF-4SFP
Place of Origin Guangdong, China

LREC9714HF-4SFP  PCI Express x4 Quad Port SFP Gigabit Server LAN Card(Intel I350 Based)

Intel I350 PCI Express x4 4 Port SFP Gigabit Fiber Server LAN Card



PCI Express x4 4 Port SFP Gigabit Fiber Server LAN Card

Key Features

Halogen-free quad-port Gigabit Ethernet adapters with fiber interface options

Innovative power management features including Energy Efficient Ethernet (EEE) and DMA Coalescing for increased efficiency and reduced power consumption

Flexible I/O virtualization for port partitioning and quality of service (QoS) of up to 32 virtual ports

Scalable iSCSI performance delivering cost-effective SAN connectivity

High-performing bridgeless design supporting PCI Express* Gen 2.1 5GT/s

Reliable and proven Gigabit Ethernet technology from Intel Corporation



Overview

The new LREC9714HF-4SFP builds on LR-LINK’s history of excellence. LR-LINK continues its market leadership

with this new generation of PCIe* GbE network adapters. Built with the bridgeless Intel® Ethernet Controller I350,

these adapters represent the next step in the Gigabit Ethernet (GbE) networking evolution for the enterprise and

data center by introducing new levels of performance through industry-leading enhancements for both virtualized

and iSCSI Unified Networking environments.This new family of adapters also includes new power management

technologies such as Energy Efficient Ethernet (EEE) and DMA Coalescing (DMAC).





General Features



Intel® Ethernet Controller I350



With PCI Express* V2.1 (5 GT/s) Support



Low-Profile and Standard height full







Ethernet Features



IEEE* 802.3 auto-negotiation



1Gb/s Ethernet IEEE 802.3, 802.3u, 802.3ab PHY specifications Compliant



Integrated PHY for 10/100/1000 Mb/s for multispeed, full, and half-duplex



IEEE 802.3x and 802.3z compliant flow control support with software-controllable Rx thresholds and Tx pause frames



Automatic cross-over detection function (MDI/MDI-X)



IEEE 1588 protocol and 802.1AS implementation







Power Management and Efficiency



<1W S0-Max (state) 1000BASE-T Active 90oC (mode)



<400mW S0-Typ (state) 100BASE-T Active (mode)



IEEE802.3az - Energy Efficient Ethernet (EEE)



DMA Coalescing



Smart Power Down (SPD) at S0 no link / Sx no link



Active State Power Management (ASPM) Support



LAN disable function



Full wake up support



• Advanced Power Management (APM) Support (formerly Wake on LAN)



• Advanced Configuration and Power Interface (ACPI) specification v2.0c



• Magic Packet* wake-up enable with unique MAC address



ACPI register set and power down functionality supporting D0 and D3 states



MAC Power Management controls



Low Power Link Up - Link Speed Control



Power Management Protocol Offload (Proxying)



Latency Tolerance Reporting (LTR)





I/O Virtualization Features



Eight transmit (Tx) and receive (Rx) queue pairs per port



Flexible Port Partitioning:



32 Virtual Functions on Quad-port or 16 Virtual Functions on Dual-port



Support for PCI-SIG SR-IOV specification



Rx/Tx Round-Robin Scheduling



Traffic Isolation



Traffic Steering



VM to VM Packet forwarding (Packet Loopback)



MAC and VLAN anti-spoofing



Malicious driver detection



Storm control



Per-pool statistics, offloads, and jumbo frames support



Independent Function Level Reset (FLR) for Physical and Virtual Functions



IEEE 802.1q Virtual Local Area Network (VLAN) support with VLAN tag insertion, stripping and packet filtering for up to 4096 VLAN tags



IEEE 802.1q advanced packet filtering



Mirroring rules



Support for Simple VEPA



VF Promiscuous modes





Stateless Offloads/Performance Features



TCP/UDP, IPv4 checksum offloads (Rx/ Tx/Large-send); Extended Tx descriptors for more offload capabilities



IPv6 support for IP/TCP and IP/UDP receive checksum offload



Tx TCP segmentation offload (IPv4, IPv6)



Transmit Segmentation Offloading (TSO)



Interrupt throttling control



Legacy and Message Signal Interrupt (MSI) Modes



Message Signal Interrupt Extension (MSI-X)



Intelligent interrupt generation



Receive Side Scaling (RSS) for Windows environment



Scalable I/O for Linux environments (IPv4, IPv6, TCP/UDP



Support for packets up to 9.5K Bytes ( Jumbo Frames)



Low Latency Interrupts



Header/packet data split in receive



PCIe v2.1 TLP Processing Hint Requester



Descriptor ring management hardware for Transmit and Receive







Remote Boot Options



Preboot eXecution Environment (PXE) flash interface support



Intel® Ethernet iSCSI Remote Boot for Windows, Linux, and VMware



Intel Boot Agent software:



Linux boot via PXE or BOOTP, Windows* Deployment Services, or UEFI





Manageability Features



Management Component Transport Protocol (MCTP)



Firmware Based Thermal Management



IEEE 802.3 MII Management Interface



MAC/PHY Control and Status



Watchdog timer



Extended error reporting



Controller Memory Protection



Vital Product Data (VPD) Support





Adapter Product Features



Plug and play specification support



Intel® I/O Acceleration Technology (Intel® I/OAT)



Ships with full-height bracket installed; low-profile bracket included in package





Technical Features



Data rate supported per port: 1000 Mbps



Bus type: PCI Express* 2.1 (5 GT/s))



Bus width: 4-lane PCI Express; operable in x4, x8 and x16 slots



Interrupt levels: INTA, INTB, INTC, INTD, MSI, MSI-X



Controller-processor: Intel Ethernet Controller I350



Power consumption (typical): 6.0 W



Storage temperature: -40 °C to 70 °C (-40 °F to 158 °F)



Operating temperature :0 °C to 55 °C (32 °F to 131 °F)



Storage humidity: 90% non-condensing relative humidity at 35 °C
