Sealing Dispensing System TH-206H-Z1

Sealing Dispensing System TH-206H-Z1 thumbnail-1
Sealing Dispensing System TH-206H-Z1 thumbnail-2
Sealing Dispensing System TH-206H-Z1 thumbnail-3
Sealing Dispensing System TH-206H-Z1 thumbnail-4
Sealing Dispensing System TH-206H-Z1 photo-1
Sealing Dispensing System TH-206H-Z1 photo-2
Sealing Dispensing System TH-206H-Z1 photo-3
Sealing Dispensing System TH-206H-Z1 photo-4
Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
TianHao Dispensing
Model Number:
TH-206H-Z1
Contact Supplier Request Quote Chat Now
Cixi Tianhao Electric Technic Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
NINGBO
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Zhejiang, China
Brand Name TianHao Dispensing
Model Number TH-206H-Z1
Condition New
After-sales Service Provided Overseas service center available

 Model: TH-206H-Z1 sealing dispensing system



Tianhao dispensing designs and manufactures precision fluid dispensing systems for applying controlled amounts of adhesives, sealants, lubricants and other assembly fluids used for processes in the electronics, LED, wireless, photovoltaic, and other industries.



By enabling manufacturers to apply the same amount of adhesive, lubricant or other assembly fluid to every part, every time, TINAHAO fluid dispensing systems are helping companies increase throughput, improve quality, and lower their production costs.



Other TINAHOA DIPSENSING products include high-quality syringe barrels and cartridges for packaging one- and two-component materials, along with a wide variety of fittings, valves, couplers, connectors, and tips for controlling fluid flow in medical, bio pharmaceutical and industrial environments.



The Cartesian-Gantry construction of these industrial robots allows easy integration over existing automated conveyor products.

Cartesian gantry industrial robots are high power servo driven dispensing robots built for durability and high performance. The robot motion is above the work making the gantry robot suitable for in-line conveyor robotic assembly operations



sealing dispensing system TH-206H-Z1

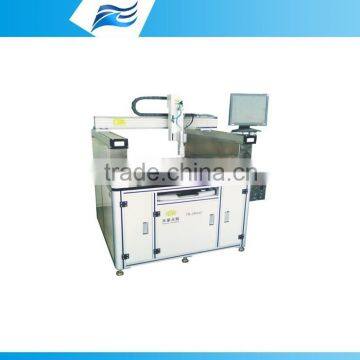

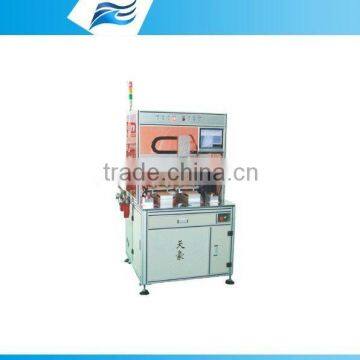

Product pictures: TH-206H-Z1 sealing dispensing system







Sales Points/Focus



 1.Very versatile,Fast assembly.



 2.Simplifies robot and master control systems



 3.Cartesian-Gantry construction (non moving base),

   Composite granite base design ensures flatness, rigidity and robustness is optional



 4.User-friendly design, compact and attractive appearance, easy to learn



 5.Professional dispensing software based entirely on the dispensing process development.



 6.PLC Controller, Easy to program - Dedicated dispensing software eliminates the need of complex robot  language programming.



 7.Increase the parameters display with programmer, more intuitive operation.



 8.Digital servo controlled ball screw drives



 9.I/O communications for machinery and conveyor integration





Our advantages:



1. Original Manufacturer/factory



2. High reputation around the china



3. Many experience of glue dispensing machine



4. Best quality and good work



5. High grade components



6. Special dispensing software, both Chinese and English interface



7. Professional service and technology support



8. All models with CE approved;



9. OEM services accepted







Main specification:

ITEM

                        Gantry robot

X/Y/Z working range

                       500 x 500 x 100mm

Standard

CE Approved

OEM Service

YES

XY/Z Maximum Load

XY: 15kgs   Z: 2-3kg

XY/Z Speed

0.1-800/500 mm/Axis

Repetitiveness

±0.02mm/Axis

Program capacity

Unlimited programs

Data memory capacity

999 programs by CF card, PC STORAGE&USB

Display way

 LCD display

Drive System

Precision micro-servo motor

Motion Control

Teach Pendant

Transmission

Precision screw/High-Precision Linear Guides

Linear Interpolation

All axes

Edit Programming

 Handheld Programmer

I/O Signals

12 Inputs /16 Outputs

Patterns

 Dots, Line, Potting, Filling, Encapsulation, Sealing, Coating, Jetting

Power Supply

AC110V/220V Internal conversion

Working Temperature

0-40°C

Relative Humidity

20~90% (no condensation)

Dimensions (W x D x H) mm

116X106X63mm

Weight

62kgs





Complete accessories dispensing kit:

NO

Name

ITEM

QTY

1.

TH-206Hgantry

1pcs

TH-206H

2

Teach pendant

1pcs

TH-DT001

3

Teach pendant Cable line

1pcs

TH-DTC01

4

Connect cable line

2pcs

TH-DSL02

5

controller

1set

TH-D03

6

wrench

1pcs

TH-T04

7

Screw

1pcs

TH-DS05

8

POWER cord 220V

1pcs

TH-DP06

9

Manual operation

1pcs



10

CD software

1pcs



11

Ex-work Report

1pcs



12

Machinery certificate

1pcs



13

Warranty card

1pcs



14

CE certificate

1pcs



15

catalogue

1pcs





Package:



Items per Carton:

1 Units / Carton

Package Measurements:

116X106X63mm

Gross Weight:

62KG







Delivery in 15workday after received your payment



Shipping ways by TNT.ups,dhl.fedex



Loading port:Ningbo or shanghai



Our Service: Your satisfactory, our pursuit!



1,Your inquiry will be replied in 24 hours.

2,Offer free spare parts and service within one year of warranty,

3,Technology Support Provide Demo operation video for training; If you have time,

welcome to our company, Will arrange engineers to show you theo peration.

4, Professional after-sales service team;

5,Give great discount to AGENCY to ensure agents profit.



Our product:



  • 4 Axis dispensing robot.XYZ dispensing robots- for full automated and high precision ,high efficiency production processes control
  • Dispenser.mix/meter dispensing system - for manual assembly processes
  • Threadlocking adhesives coating machine-suitable for  thread coating processes
  • Rotary table Dispensing machine- for dispensing circular beads on circular, semi-circular, oval, product
  • Valve, tank-for automated production lines
  • Highest quality dispensing tips ,syringe barrels
  • Other disposable components



Related Product



Our product can help you to achieve the goal :

  • Promotion processing precision  control
  • Improve product quality
  • lower production costs, reduce rejected product
  • Eliminate material wast.

Available Dispensed Material

UV glue, instant glue,silica gel, hot melt adhesive, red glue, silver glue, AB glue, EPOXY resin, COB black glue, white glue, conductive glue, thermal paste, solder paste, transparent paint, etc.

Application Area

1. Electrical Products: Electronic parts, integrated circuits, circuit board solder paste, fixed and dust and moisture protection, LCD liquid crystal screen, speakers, headphone, audio, LED, optical lens, SMD transformers, relays.

2. Communication Products: Keypad, mobile phone casing bonding, radio, telephone, Computers, MP4, electronic toys, chassis bonding, switches, connectors, plug cable.



OUR CERTIFICA

We provide 1 years warranty of product and shipment with one set fitting to you

sealing dispensing system TH-206H-Z1



Factory Show

sealing dispensing system TH-206H-Z1

Production room:

sealing dispensing system TH-206H-Z1sealing dispensing system TH-206H-Z1

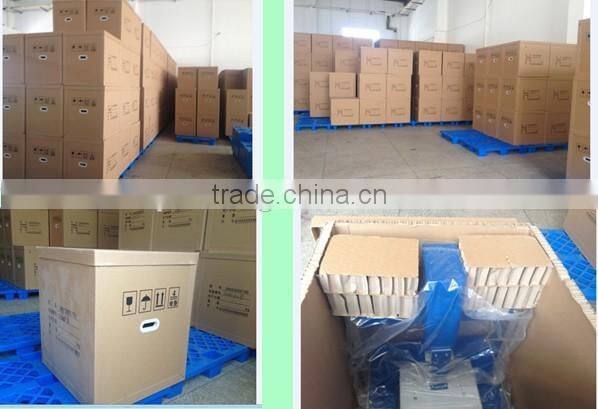

Warehouse

sealing dispensing system TH-206H-Z1
