TH-2004AD indusstrial robot indusstrial robot industrial robot applications
The right deposit, in the right place — every time.
TH-2004AD Floor-type design and gantry-style three-dimensional Transfer institutions may apply for a larger volume of product processing, pick and place parts more convenient, processed faster and providing greater stability.
Dedicated to glass glue, high-viscosity glue sealant, polyurethane, silicone and other packaging.
Sales Points/Focus
Features:
1. The professional dispensing software combination of feed system and arm running control to achieve the synchronization control.
2. Triaxial dual rail robotic arm, the Z-axis brake motors, greatly increased the stability of the equipment and motion accuracy.
3.When finish program edits by the soft control key directly control the robot ‘s work without an external Teach Pendant.
4.Easy maintenance. Even if the teaching Pendant and liquid controller have problems, not affect the work of the machine.
5.CAD file directly change to the dispensing path.
6.Interpolates lines or arcs for three-dimensional dispensing.
7.Continuous path motion for precise XYZ dispensing.
8.The right deposit, in the right place — every time.
9,Teach Pendant Chinese/English edits programs interface
10.Available in three and four axis models
11.Flexible power supply designed for overseas use.
12.No computer skills required.
Specification:
ITEM |
TH-2004AD |
X/Y/Z working range |
500 x 500 x 100mm |
Standard |
CE Approved |
XY/Z Maximum Load |
20kg / 10kg |
XY/Z Speed |
800/350 mm/Axis |
Repetitiveness |
±0.02mm/Axis |
Data memory capacity |
999 programs |
Display way |
LCD display |
Drive System |
Precision micro-stepper motor |
Transmission |
Timing Belt/ Precision Linear Guides |
Edit Programming |
Handheld Programmer |
I/O Signals |
4 Inputs / 4 Outputs |
Patterns |
Dots, Line, Potting, Filling, Encapsulation, Sealing, Coating, Jetting |
Power Supply |
AC110V/220V Internal conversion |
Working Temperature |
0 -40 °C |
Relative Humidity |
20-90% (no condensation) |
Dimensions (W x D x H) mm |
1.38M3 |
Weight with be packing |
131KGS |
ROBOT TH-2004AD Packing List
NO |
Name |
ITEM |
QTY |
1. |
TH-2004AD Robotic |
1pcs |
TH-2004AD |
2 |
Teach pendant/ fix frame |
1pcs |
TH-DT001 |
3 |
Teach pendant Cable line |
1pcs |
TH-DTC01 |
4 |
Dispensing signal line |
1pcs |
TH-DSL02 |
5 |
Dispenser fix frame |
1set |
TH-DXF03 |
6 |
wrench |
1pcs |
TH-T04 |
7 |
Screw |
1pcs |
TH-DS05 |
8 |
POWER cord 220V |
1pcs |
TH-DP06 |
9 |
Manual operation |
1pcs |
|
10 |
CD software |
1pcs |
|
11 |
Ex-work Report |
1pcs |
|
12 |
Machinery certificate |
1pcs |
|
13 |
Warranty card |
1pcs |
|
14 |
CE certificate |
1pcs |
|
15 |
catalogue |
1pcs |
|
Quality guarantee
We provide 1 years warranty of product and shipment with one set fitting to you
Packing Infomation
Related Poduction
we have oneself Hardware engineer and Software engineer,
As customer require design non-standard machine and equipment.
As following had be sales equipment:

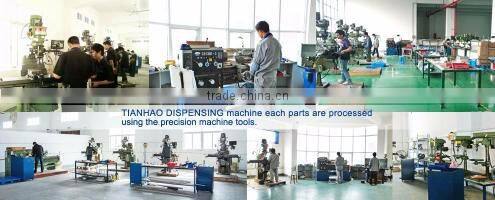

Factory Picture
