Product Details
Place of Origin: | Zhejiang, China | Brand Name: | TianHao | Model Number: | TH-2004AE |
Product Description

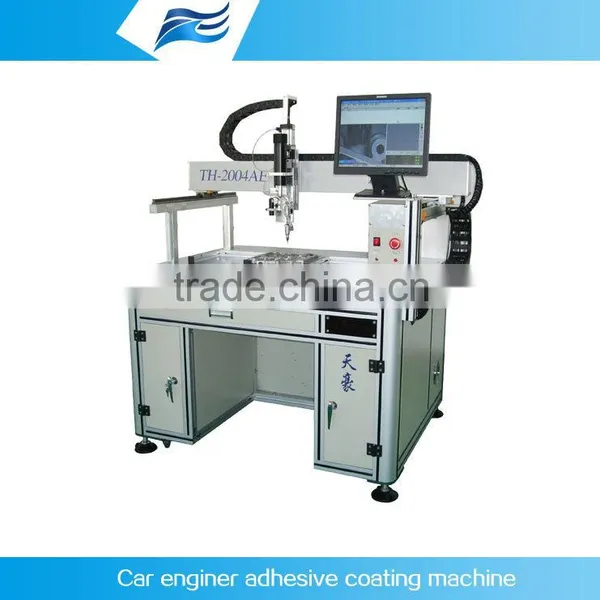

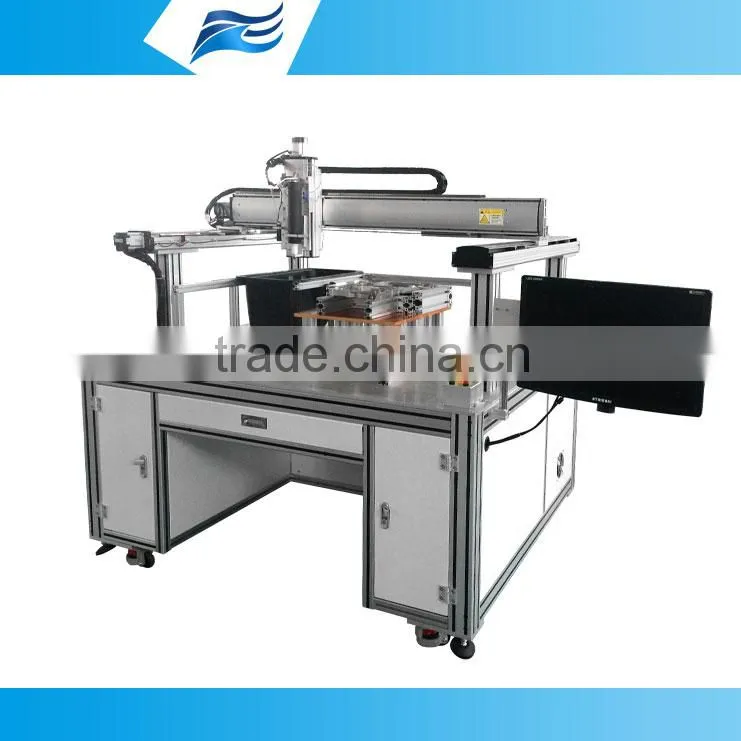

TH-2004AE precision robotic dispensing systems
TH-2004AE Dispensing robot The vision system is supplied complete including PC
ensuring all components are compatible, thereby eliminating any costly start-up issues and reducing the learning curve.
Application:
Semiconductor Packaging PCB fixed and protection of electronic components LCD glass board encapsulation Mobile phone keypad board coating or dispensing Speaker Dispensing battery compartment sealing Motor vehicle parts coated mechanical Metal parts coating Quantitative gas, liquid filled coating Chip bonding
The system is designed to provide automatic dispensing program offsets when the dispensing path of a component cannot be guaranteed.Product advantages:
CCD Visual images Assisted Positting
This Dispensing robot equipped with CCD visual images Assisted positioning programming,Multiplied by the camera target workpiece,then use of the electronic cross-line target on the place to edit dot precisely and quickly,Maximum to avoid the result of visual error caused by the human eye. Dispensing glue track real-time tracking window,
Professional-grade software with dispensing machine
TiaHao dispensing robot controller software design from fluid control and adhesive process requirements.basic windows XP computer operation system and Integration of robot trajectory control and flow control.have(Chinese/Traditional/English) three language be select as your require. any of the quantitative,Dispensing glue delay time,ahead of time delay Distance.Dispensing height and other relevant parameter. Can be set. solve the ordinary machine with operation of complex, running unstable, dispensing no Accurate, non-uniform and Contact evident tape and other obvious defects.
Unique style of programming
Quote the rocker operate the machine-readable program coordinates.simplifies the operation of the robot. Easy to 3axis linkage, resolve all the 3D adhesive dispensing process
Mass storage
unlimited Hard disk storage program documents from the name, call convenience
High Precision quantification control system
The dispensing robot with dispensing valves and syringes as customer production require.Quantitative precision, easy installation
Operating area of 500X500X100mm.
Repeatability 0.01mm for accurate dispensing
Resolution: X & Y,Z: 0.005mm/ Axis,
maximum feed speed:1000mm/sec.(X-and Y-axes)
Features
1.Ideal for irregular dispensing route per component
2.High Resolution 0.001mm
3.Automatic offset of dispensing route
4..Precision operation
5.Increased production efficiency
6.Preview simulation of dispense route
7.Auto offset of coordinates after tip change
8.Edit programs directly - easy learn - fast response,CAD DXF accepted
Specifications
XYZ Robot Working Area/ mm:Customized
Vision Software:Robot Vision
System Operation:Computer
Camera:USB Color Camera
Interface Port:LAN
Frame Grabber:USB Dongle
Light System:EXLITE Cognate In-Sight White LED
Teaching Method:1. PC Software, 2. Teach Pendant
Software Function:1. Program Edit, 2. Auto Vision Align, 3. Accept DXF Files
Complete accessories dispensing kit
NO. | Name | Qty |
1 |
Robot | 1set |
2 |
Computer | 1set |
3 |
LCD display | 1pcs |
4 | Mouse/ Mouse mat | 1set |
5 | keyboard | 1pcs |
6 | control rocker | 1pcs |
7 | Adjusting pressure valve( filter) | 1set |
8 | workpiece | 1set |
9 | Blue “U” hardware key That’s very important for machine | 1pcs |
10 | Camera /camera power line | 1set |
11 | Image line | 1pcs |
12 | Robot power line | 1pcs |
13 | Computer power line | 1pcs |
14 | Backup power | 1set |
15 | Fuse | 2pcs |
16 | Air tube | 1pcs |
17 | Tool/Tool box | 1set |
18 | socket | 2pcs |
19 | Warrary card | 1set |
20 | Machinery certificate(CE) | 1pcs |
21 | Manual operation | 1pcs |
Quality gurantee
We provide 1 years warranty of product and shipment with one set fitting to you
Standard packing box
Factory Picture
