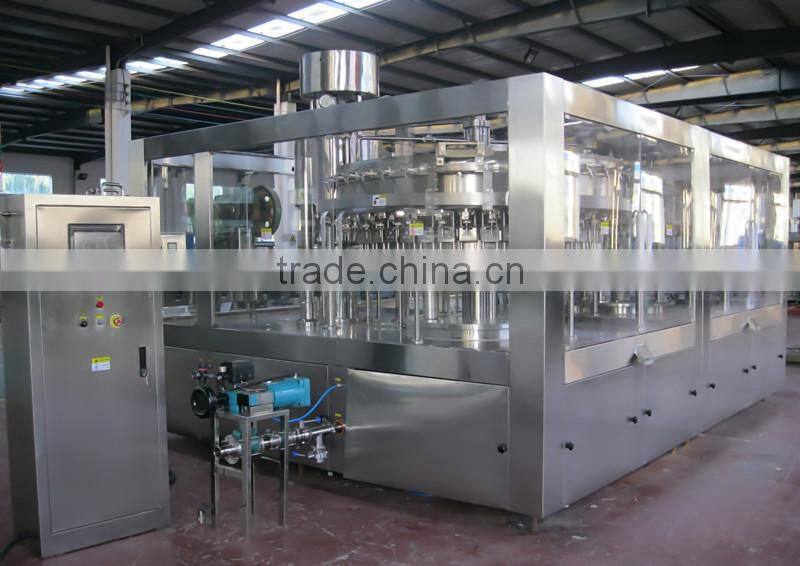

Automatic Glass Bottle Spirit/Wine Filling Line
This New design soft drinks glass bottle filling machine is mainly used in washing, filling and sealing gas containing beverage into glass bottle such as carbonated drink, cola, soft drinks ect.The machine is based on the introduction of foreign technology, combined with our years of manufacturing experience. The machine combines filling and capping, with scientific and rational design, beautiful shape. It is Easy in maintenance, with high automation.
1. It is a automatic filling & capping machine.
2.With high precision me chanical filling valves,our filling machine stops vacuumizing when there are no bottles.
3.This machine is equipped with external mechanical valve,inside which there is no spring or sealing element.
4. It makes use of combined transmission by open gear and gearbox,and adopts frequency conversion stepless speed control,extending the speed modulating scope.
5. It has an antomatic lubricating device so that the lubrication points can be automatically lubricated regularly in time.Also,our beer filling machine has high transmission efficiency,low noise and long life.
6. In case of the blowout due to poor quality of the bottles during gas or beer filling,the filling valve will automatically close and the auto-cleaning device will work to treat the broken bottles.
7.The capper has the function of automatic deloading,which helps lower the bottle breakage.
8.The movement of the beer bottle and capping heads is driven by electricity in order to fit bottles of different sizes.
Main Technical Paramenters:
Item |
CGF16-16-5 |
CGF18-18-6 |
CGF24-24-8 |
CGF32-32-10 |
Capacity |
5000bph(500ml) |
6000bph(500ml) |
80000bph(500ml) |
12000bph(500ml) |
Rising heads |
16 |
18 |
24 |
32 |
Filling heads |
16 |
18 |
24 |
32 |
Capping heads |
5 |
6 |
8 |
10 |
Bottle Diameter |
Commonly 50-110mm (can adjustable) |
|||
Bottle Height |
Commonly 150-340mm(can adjustable) |
|||
| BOTTLE | Glass or Plastic bottle | |||
Rising pressure |
0.2-0.25Mpa |
|||
Overall size |
2130*1700*2350 |
2450*1800*2350 |
2780*2200*2350 |
3600*2650*2350 |
Weight |
3.3t |
3.5t |
4.5t |
5.5t |
