Specifications
Carbonation Machine1.used in carbonated drink production line
2.PLC control
3.Stainless Steel304
4.good after-sale service

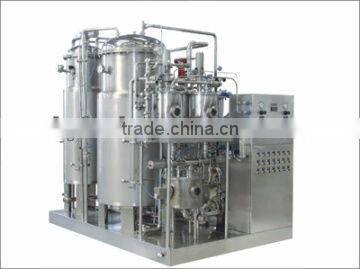

Beverage Carbonation Machine
Introduction of the Beverage Carbonation Machine
This series beverage carbonation machine is used for all kinds of carbonated drinks' mixing. It can mix the purified water, CO2 and syrup together to be carbonated drinks'
Main Features of the Beverage Carbonation Machine:
1.Good material, perfect processing. All the parts of the machine contact with liquid are made of high quality stainless steel 304, which exactly is up to requirements regulated by internation food sanitation.
2.Full automatic with alarm system. All the pressure in the can and liquid level adjustment will be debugged automatically, via PLC to control the whole process of operation. Once there goes wrong, the alarm light and alarm ring will be on to stop the machine automatically.
3.Easy operation and debugging. This machine is easy to operate. Without changing any part, you can debug the production capacity, water, syrup match, and the gas content.
4.Complete mixing, correct match. The mulling ratio of water and syrup is seriously controlled by measure pin valve, with precision up to 5%.
5.Enough air with high efficiency. The machine adopts normal pressure to oxygenate, with the oxygenation rate is above 90%. Also collocated with plate heat exchanger to mix the sugar water, and then cool to secondary carbonation. So the air content is rich which could reach to 3 times.
Main Parameters of the Carbonated Beverage Carbonation Machine:
| Model | HF-03 | HF-06 | HF-09 | HF-18 |
| Output | 3T | 6T | 9T | 18T |
| Syrup and Water Adjusting Rate | 1:3-1:10 | 1:3-1:10 | 1:3-1:10 | 1:3-1:10 |
| Gas Amount | ≤2.5 | ≤2.5 | ≤2.5 | ≤2.5 |
| Mixing Precision | ≤2% | ≤2% | ≤2% | ≤2% |
| Cooling Water Inlet Temperature | 0-4°c | 0-4°c | 0-4°c | 0-4°c |
| Cooling Water Inlet Pressure | 0.15-0.25Mpa | 0.15-0.25Mpa | 0.15-0.25Mpa | 0.15-0.25Mpa |
| Syrup Inlet Temerature | 2-8°c | 2-8°c | 2-8°c | 2-8°c |
| 2-8Syrup Inlet Pressure | 0.1-0.2Mpa | 0.1-0.2Mpa | 0.1-0.25Mpa | 0.1-0.3Mpa |
| Carbon Dioxide Pressure | 0.7-0.8Mpa | 0.7-0.8Mpa | 0.7-0.82Mpa | 0.7-0.82Mpa |
| Carbona Dioxide Purity | >99.9% | >99.9% | >99.9% | >99.9% |
| Working Pressure of Storage Tank | 0.45-0.55Mpa | 0.45-0.55Mpa | 0.45-0.55Mpa | 0.45-0.55Mpa |
| Motor Power | 5.8KW | 6.3KW | 6.5KW | 7.2KW |
| Dimension | 2000*1400*2200 | 2100*1500*2270 | 2150*1700*2380 | 2200*1750*2400 |
| Weight | 1200kg | 1350kg | 1500kg | 1950kg |
