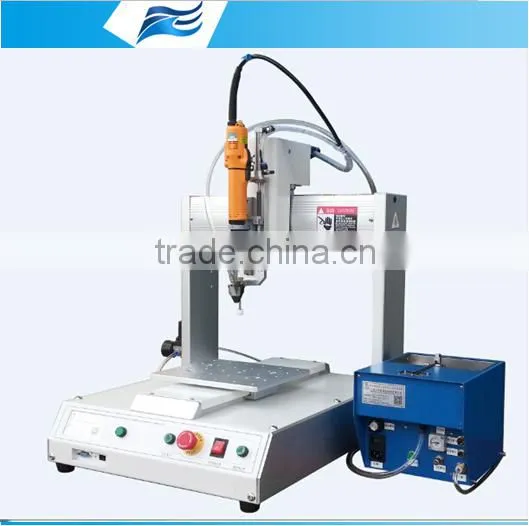

automatic screwdriver machine
Introduction:
This equipment desgin as the screw driver locking production process to do. It has a small appearance which can save space;It is convenient to use and it can work automatically which can totally save the labor,manpower and material resources.And we promise to guarantee the working quality,avoid errors from operators.
Features:
1.It is convenient to move because of its light body;
2.Our programming process is convenient to operate and easy to learn;
3.screwdriver with screw bolt feeding with electric’s holding head
4.Electric’s holding heads with well work ,holding frequent is 1.0s/pcs
5.screw driver head can using any height screw
6..Autoamtic identification for scrwe tooth whether be silk. If have leakage locked or flating be atuoamtic alaming ,so that avoid the operators errors to guarantee the reliability of working 24hours a day
7.It has the function of array copy,parameters array,single correction and whole correction which can save time
8.Screw feed system automatic sort average supply the screw .noise a little.Have automatic check and feeding function. People only place the screw in the feed part.
9.Chinese interface,it will show you dynamic working condition and parameters,it has the function of password protection to avoid the modification of system parameters.
10.It can store 999programs,it is very convenient to adjust the program if you want to change product
11.It will work efficiently which can save manpower and material resources.
Applications:
Generally suitable for digital camera,mobile phones,telephones,calculators,navigators,laptop,stereo,tablet computer,learning machine,soybean milk machine,electric rice cooker,juicer,printer,vacuum cleaner,toys,plastic hardware products and so on.
Industrial applications:
1.Electric :Mobile phones,camera,hard disk,keyboard,LCD display,printer,computer,DVD,home appliance,plastics,toys,electric appliance,PCB,battery,instrument,communication device,lamps,electronic processing and so on.
2.Car assembly Industrial :Motor,parts assembly and so on.only screwdriver ,then want this equipment,It can not only reduce the manual cost,but also improve the working efficiency
3.Furniture Industry:Wooden furniture, beach chairs, etc. According to the facts of the tapping screw lock.
screw:
Screw total lenght must is 1.2 multiple of the diameter .
Type of screw:
plum blossom, cross, a word, hex, H top all is ok.
Specifications:
Brand:Dahua Automatic
Customized machine:yes
Model:DH-3310D-L
Power type:AC power
Voltage rating:220V/50HZ
The import way of screw:Air blowing type
Head shape of screw :no requrie
Power:300W
Air supply:>0.5MPa
Working air pressure:3~5kg/cm2
The diameter of suitable screw:M1~M4
The length of suitable screw:5~20mm
Storage capacitys:(explam:2000pcs of M3X10lenght )
Resolution:X,Y:±0.02mm Z:±0.02mm
Pulse frequency:700K
Number of axis:3axis(XYZ)
The speed of axis X,Y,Z:The acceleration is(1000,6000,1000,6000,1000,4000)the acceleration of axis Z should be lower than 4000
Air presure:0.3—0.6 bar be adjusting
Holding screw head height:2.5—4mm of screw heads
Z axis: with 2 pcs of conos
Capacity:64M
Working temperature:-10℃-40℃
Working humidity:40%-80%
Storage humidity:0%-95%
EXinterface:USB and TMS connect,USB connect the computer,TMS connect teachpend
Storage way:FLASH chip
LCD:320*240,3.2inch colorful LCD
Edit programs:Hand-held programmer
IO signal:Input isolation
Data memory capacity:It can store10000 files,8000 traces in each file
Electric batch of torque check:have
Screw slip check:have
Screw Leakage check:have
Screw Missing feed :have
Scew folating lock check:have
If meet above queston:machien will alarm and stop work
Product configuration list:
ITEM |
QTY |
The working panel from Dahua Automatic |
1pcs |
Feed system |
1pcs |
Hand-held programmer |
1pcs |
Cable of hand-held programmer |
1pcs |
Electric batch |
1pcs |
Electric batch adapter |
1pcs |
Photoelectric sensor |
1pcs |
Electric batch group |
1pcs |
Electric batch head |
2pcs |
Holding nozzle |
1pcs |
Electric wires |
2pcs |
Air tube |
2pcs |
Material pipe |
1pcs |
Spring |
2pcs |
Purchase instructions:
1.Customers should provide samples and screws you need;
2.We will provide design plan and make a reasonable quotation;
3.When we reach a consensus,after receive the down payment,we could sign a contract;
4.We will produce according to the requirements of contract and delivery at the appointed time;
5.We will test the machine before delivery,then customers pay the residual money,and we will train the trainee;
6.Our after-sales service is long-term effective.
Product Maintenance:
1.Make the machine clean and tidy,clean it with the cloth with oil,try to avoid water;
2.Do not let the broken material and other tools delay on the machine;
3.Keep the working environment ventilate and dry;
4.Keep the machine power on and ventilate on a regular basis to check the performance;
5.Be careful of the damage caused by the rats.
Quality guarantee
We provide 1years warranty of product and shipment with one set fitting to you
Standard packing
Facotry Picture
