Specifications

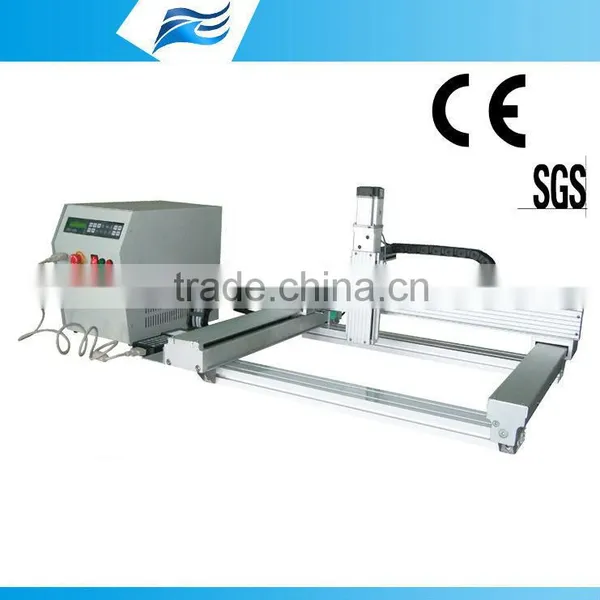

TH-206H-2012 Experienced exporter of automatic dispensing robot
TH-206H-2012 Experienced exporter of automatic dispensing robot
The Cartesian-Gantry construction of these industrial robots allows easy integration over existing automated conveyor products.
Cartesian gantry industrial robots are high power servo driven dispensing robots built for durability and high performance. The robot motion is above the work making the gantry robot suitable for in-line conveyor robotic assembly operations
TH-206H-2012 T&H 3 axes cartesien robot glue dispensing robot
Sales Points/Focus
1.Very versatile,Fast assembly.
2.Simplifies robot and master control systems
3.Cartesian-Gantry construction (non moving base),
Composite granite base design ensures flatness, rigidity and robustness is optional
4.User-friendly design, compact and attractive appearance, easy to learn
5.Professional dispensing software based entirely on the dispensing process development.
6.PLC Controller, Easy to program - Dedicated dispensing software eliminates the need of complex robot language programming.
7.Increase the parameters display with programmer, more intuitive operation.
8.Digital servo controlled ball screw drives
9.I/O communications for machinery and conveyor integration
Complete accessories dispensing kit
NO |
Name |
ITEM |
QTY |
1. |
TH-206H gantry |
1pcs |
TH-206H |
2 |
Teach pendant |
1pcs |
TH-DT001 |
3 |
Teach pendant Cable line |
1pcs |
TH-DTC01 |
4 |
Connect cable line |
2pcs |
TH-DSL02 |
5 |
controller |
1set |
TH-D03 |
6 |
wrench |
1pcs |
TH-T04 |
7 |
Screw |
1pcs |
TH-DS05 |
8 |
POWER cord 220V |
1pcs |
TH-DP06 |
9 |
Manual operation |
1pcs |
|
10 |
CD software |
1pcs |
|
11 |
Ex-work Report |
1pcs |
|
12 |
Machinery certificate |
1pcs |
|
13 |
Warranty card |
1pcs |
|
14 |
CE certificate |
1pcs |
|
15 |
catalogue |
1pcs |
Quality guarantee
We provide 1 years warranty of product and shipment with one set fitting to you
Factory Picture
