Model: Automated assembly equiopment/automated assembly line
The Cartesian-Gantry construction of these industrial robots allows easy integration over existing automated conveyor products.
Cartesian gantry industrial robots are high power servo driven dispensing robots built for durability and high performance. The robot motion is above the work making the gantry robot suitable for in-line conveyor robotic assembly operations
Product pictures: TH-206H-Z1 Automated assembly equiopment/automated assembly line
Sales Points/Focus TH-206H-Z1 Automated assembly equiopment/automated assembly line
1.Very versatile,Fast assembly.
2.Simplifies robot and master control systems
3.Cartesian-Gantry construction (non moving base),
Composite granite base design ensures flatness, rigidity and robustness is optional
4.User-friendly design, compact and attractive appearance, easy to learn
5.Professional dispensing software based entirely on the dispensing process development.
6.PLC Controller, Easy to program - Dedicated dispensing software eliminates the need of complex robot language programming.
7.Increase the parameters display with programmer, more intuitive operation.
8.Digital servo controlled ball screw drives
9.I/O communications for machinery and conveyor integration
Our advantages:
1. Original Manufacturer/factory
2. High reputation around the china
3. Many experience of glue dispensing machine
4. Best quality and good work
5. High grade components
6. Special dispensing software, both Chinese and English interface
7. Professional service and technology support
8. All models with CE approved;
9. OEM services accepted
Main specification: Automated assembly equipment/automated assembly line
ITEM |
Automated assembly equipment |
X/Y/Z working range |
customized |
Standard |
CE Approved |
OEM Service |
YES |
XY/Z Maximum Load |
XY: 15kgs Z: 2-3kg |
XY/Z Speed |
0.1-800/500 mm/Axis |
Repetitiveness |
±0.02mm/Axis |
Program capacity |
Unlimited programs |
Data memory capacity |
999 programs by CF card, PC STORAGE&USB |
Display way |
LCD display |
Drive System |
Precision micro-servo motor |
Motion Control |
Teach Pendant |
Transmission |
Precision screw/High-Precision Linear Guides |
Linear Interpolation |
All axes |
Edit Programming |
Handheld Programmer |
I/O Signals |
12 Inputs /16 Outputs |
Patterns |
Dots, Line, Potting, Filling, Encapsulation, Sealing, Coating, Jetting |
Power Supply |
AC110V/220V Internal conversion |
Working Temperature |
0-40°C |
Relative Humidity |
20~90% (no condensation) |
Dimensions (W x D x H) mm |
116X106X63mm |
Weight |
62kgs |
Complete accessories dispensing kit: TH-206H-Z1 Automated assembly equiopment/automated assembly line
NO |
Name |
ITEM |
QTY |
1. |
TH-206H |
1pcs |
TH-206H |
2 |
Teach pendant |
1pcs |
TH-DT001 |
3 |
Teach pendant Cable line |
1pcs |
TH-DTC01 |
4 |
Connect cable line |
2pcs |
TH-DSL02 |
5 |
controller |
1set |
TH-D03 |
6 |
wrench |
1pcs |
TH-T04 |
7 |
Screw |
1pcs |
TH-DS05 |
8 |
POWER cord 220V |
1pcs |
TH-DP06 |
9 |
Manual operation |
1pcs |
|
10 |
CD software |
1pcs |
|
11 |
Ex-work Report |
1pcs |
|
12 |
Machinery certificate |
1pcs |
|
13 |
Warranty card |
1pcs |
|
14 |
CE certificate |
1pcs |
|
15 |
catalogue |
1pcs |
Package: TH-206H-Z1 Automated assembly equiopment/automated assembly line
Items per Carton: |
1 Units / Carton |
Package Measurements: |
116X106X63mm |
Gross Weight: |
62KG |
Delivery in 15workday after received your payment
Shipping ways by TNT.ups,dhl.fedex
Loading port:Ningbo or shanghai
Our Service: Your satisfactory, our pursuit!
1,Your inquiry will be replied in 24 hours.
2,Offer free spare parts and service within one year of warranty,
3,Technology Support Provide Demo operation video for training; If you have time,
welcome to our company, Will arrange engineers to show you theo peration.
4, Professional after-sales service team;
5,Give great discount to AGENCY to ensure agents profit.
TIANHAO DISPENSING
Original Manufacturer/factory of dispensing machine
15 years experience of Automatic adhesive dispensing machine and 10year export equipment experience.
Please look into our catalogues that we have attached and if those are fallen well into your business.
Our product:
1. 360 rotary 4 Axis dispensing robot.XYZ 3 axis dispensing robots- for full automated and high precision ,high efficiency production processes control
2. Dispenser.mix/meter dispensing system - for manual assembly processes
3. Threadlocking adhesives coating machine-suitable for thread coating processes
4. Rotary table Dispensing machine- for dispensing circular beads on circular, semi-circular, oval, product
5. Valve, tank-for automated production lines
6. Highest quality dispensing tips ,syringe barrels
7. Other disposable components
Related Product

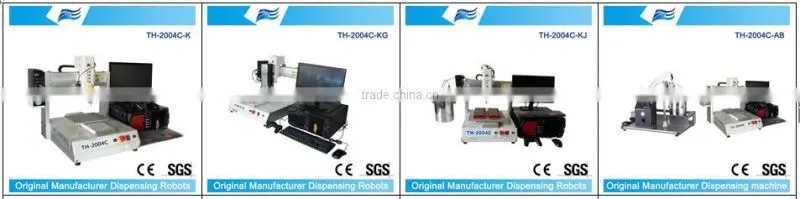

Dispensing robot with PC controller -TH-2004C Series

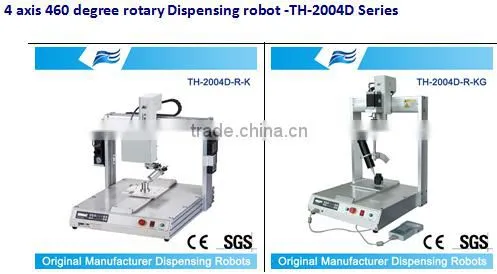

4 axis 460 degree rotary Dispensing robot -TH-2004D Series

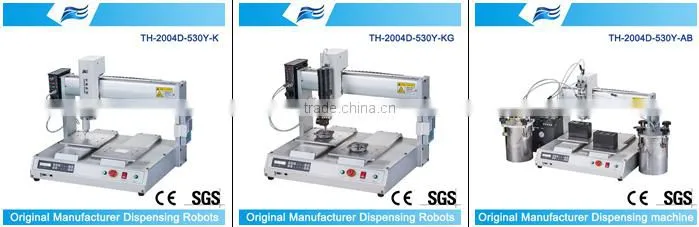

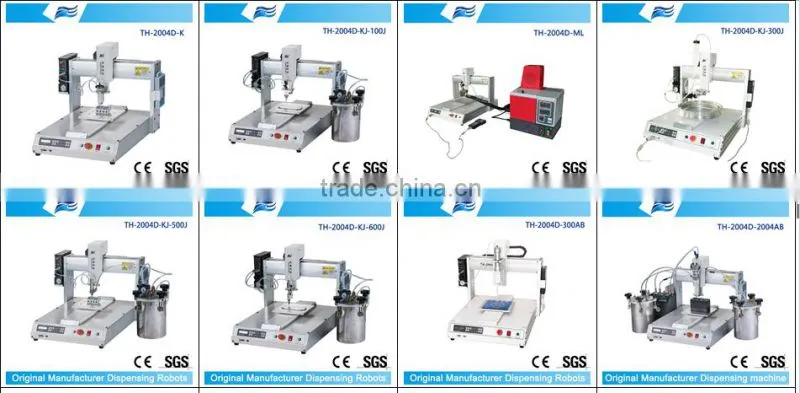

Dispensing robot with PLC control TH-2004D Series
Dual table Dispensing robot with PLC control TH-2004D Series

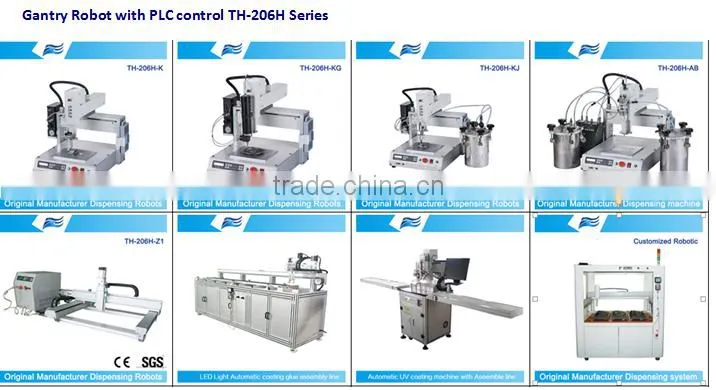

Gantry Robot with PLC control TH-206H Series

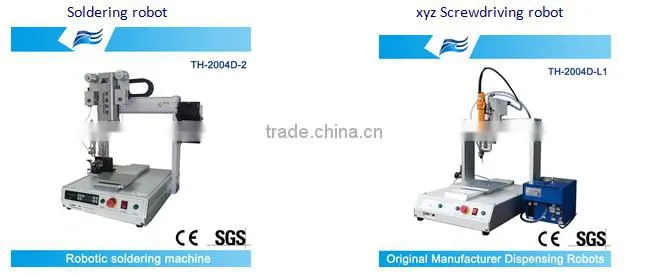

Soldering robot with PLC controller xyz Screwdriving robot with PLC controller
Rotary table dispensing
the quality and good service is in higher level for us to satisfy our customer.
All have oneself Design Patent and brand registration, our robot looks beautiful in design and also well-made.
I attach our company picture
We have expanded our manufacturing and developmental capabilities to benefit our customers.
