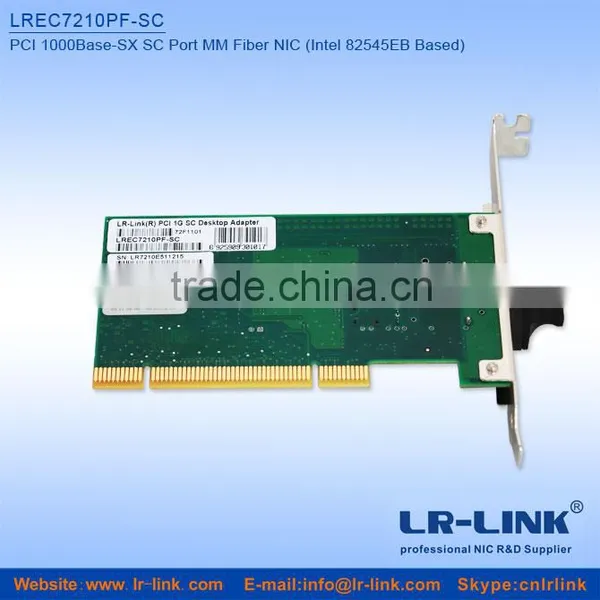

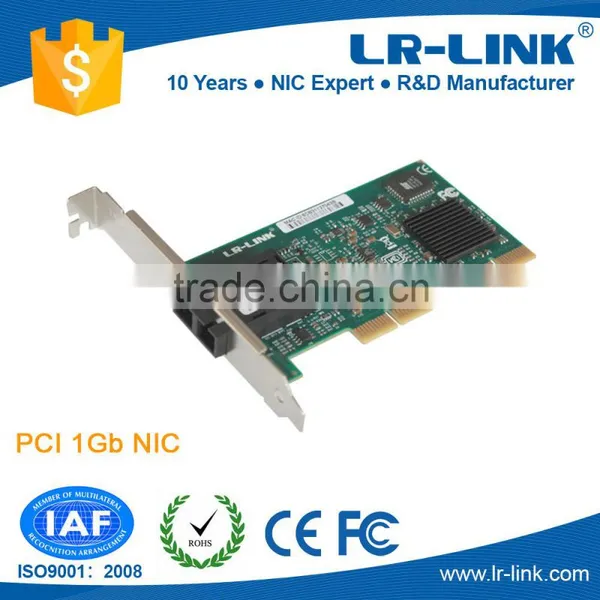

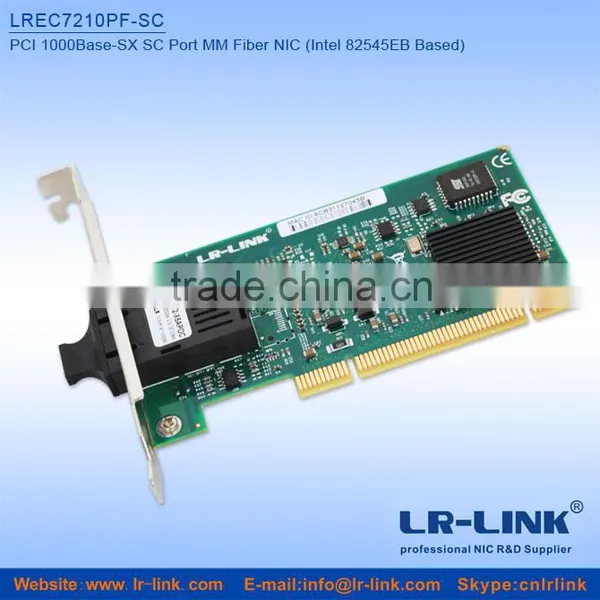

LREC7210PF
PCI 1000Base-SX/LX Fiber NIC (Intel 82545EB Based)
LREC7210PF is a typical model of 1000base-SX/LX Ethernet adapter, based on Intel 82545EB Ethernet Controller, researched and designed by Shenzhen Lianrui Electronics Co., LTD. This Ethernet adapter builds on LR-LINK’s 10 years history of excellence in NIC R&D and Manufacture. LR-LINK continues to maintain the leadership position on NIC in China. This optical fiber Ethernet adapter is widely applied various occasions of Fiber To The Desktop (FTTD), set up optical fiber LAN network, optical fiber connection with life expectancy of 30 years, not subject to electromagnetic interference and against lightning. This adapter has very high data security, high reliability, stability and compatibility, has been widely used in the secret industry, such as prosecution, courts, police and military industrial enterprises etc. represented defense sectors, and gained all customers’ unanimous recognition.
LR-LINK has PCI,PCIe x1; 100M, 1G; SC,SFP,LC,ST,FC; Multi-Mode, Single-Mode and Bidirectional etc. Full-Series Fiber To The Desktop optical fiber network card (FTTD fiber network card). There are more than 50 models for your choose. LR-LINK is an important pusher of the solutions application for global Fiber to the desktop (FTTD), is the leader of global desktop optical fiber network card. If you want to know more product information, please browse: /DesktopFiberNICCards/index1.shtml
LREC7210PF PCI gigabit fiber card support boot-rom.PCI interface, delivers high throughput while conserving CPU resources. With a flexible design that fits almost any type of PCI bus, the standards-based management features and wide network operating system support help to ensure extensive compatibility with the latest server and networking environments.
Single-port PCI-Express 1000BASE-SX/LX Ethernet adapter
High-performing design supporting PCI Express* Gen 2.1 2.5GT/s
According to customer's demands, we can select SL, LC, ST, FC and SFP fiber interface
Professional Quality Trustworthy
High Performance Control, High performance Assurance
Professional Design, Cast Highly Stable Fiber Network
Support for most NOSs: Enables widespread deployment
INTEL gigabit Single Driver technology: Common driver suite for Gigabit Ethernet reduces installation Complexity
Backward Compatibility with previous generations of PCI 1000M Network Adapters: Reduces support costs and simplifies installation and maintenance
Remote Management Support (WfM, RIS, SNMP/DMI): Reduces support costs with remote management based on industry-wide standards
IEEE 802.3ab compatibility: Supports Gigabit Ethernet industry-wide networking standard
Intel® 82545 Gigabit Controller: Provides high performance, reliability, and low power use in a single integrated Gigabit Ethernet controller chip
Full-height and low profile, screw-on brackets included with each adapter: Compatible with full-height and low-profile PCI slots—the standard, full-height bracket can be easily swapped out and replaced by the shorter, low-profile bracket, for installation in high-density 1U and 2U servers that feature low-profile PCI slots
Interrupt Moderation:
Delivers increased performance while significantly reducing CPU utilization
Large Send Off-load/TCP Segmentation Off-load: Compatible with Large Send Off-load feature of Microsoft Windows* Server 2003, 2000 and XP which enables wire speed performance with low CPU utilization
LC Connectors: This new, smaller connector design is compatible with the latest fiber-optic cabling standards
Product Features:
Single Driver technology
Plug & Play Specification Support: standard
Easy Installation, ®PROSet II Utility and ligent Install
Auto-negotiation, Full-duplex Capable

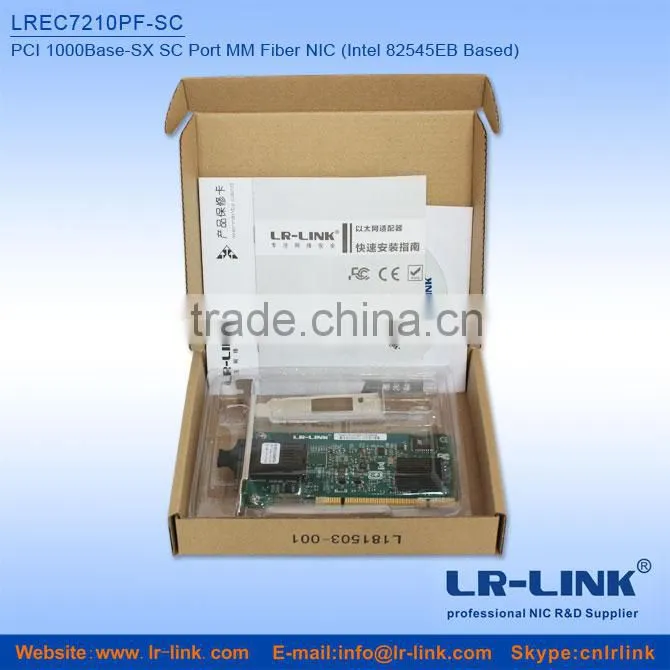

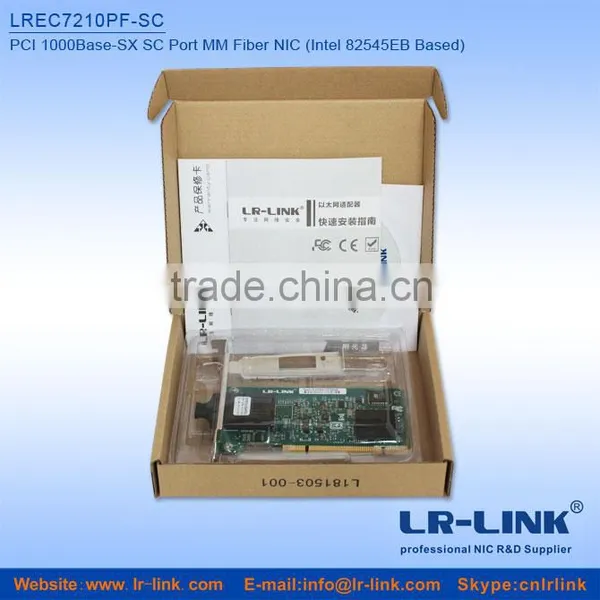

Includes a Low-profile and a Full-height Bracket
Cable Distance:10km at 9um
Advanced Software Features:
Adapter Fault Tolerance
Switch Fault Tolerance
Adaptive Load Balancing
Receive Load Balancing
Gigabit Ether Channel*1
IEEE 802.3ad (Link Aggregation Control Protocol)*1
Test Switch Configuration
PCI Hot Plug* and Active PCI*
802.1Q VLANs
802.3x Flow Control
TCP Checksum Offload
IEEE 802.1p
TCP Segmentation/Large Send Offload
Interrupt Moderation
Save and Restore
Network Management
Wired for Management (WfM)
Baseline v2.0 Enabled for Servers
DMI 2.0 Support, WMI &
SNMP-manageable
Offline Diagnostics
Intel® Boot Agent
ACPI Power Management
PXE 2.0
Network Operating Systems (NOS) Software Support
Microsoft Windows* Server 2003 and 2000
Microsoft Windows* XP 32- and 64-bit Editions
Microsoft Windows NT* 4.0
Linux* 2.4.x or later (32- and 64-bit)
FreeBSD 4.x or later
Novell Netware* 4.11, 4.2, 5.0,5.1, 6.0
SunSoft Solaris* 7, 8
UnixWare* 7.x, OpenUNIX 8 (ddi8)
SCO5*

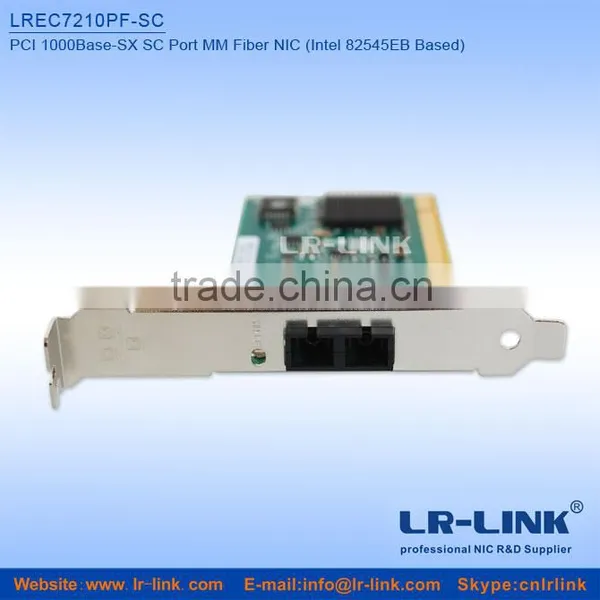

Connector |
SC,ST or LC (Fiber) |
IEEE standard/network topology |
1000BASE-SX/LX |
|
Cabling Distance
|
1000BASE-SX: 275 m at 62.5 µm; 550 m at 50 µm 1000BASE-LX: 10Km at 9µm; |
Data rate supported per port |
1000 Mbps |
Bus Type |
PCI Express* 2.1 (2.5GT/s) |
Interrupt levels |
INTA, INTB, INTC, INTD, MSI, MSI-X |
Bus Width |
1-lane PCI Express; operable in x1 or greater slots |
Hardware certifications |
FCC , CE |
Controller - processor |
Intel® Ethernet Controller 82545EB |
Power consumption (active-typical) |
0.75 W |
Operating temperature |
0℃ to 55℃ (32℉ to 131℉) |
Storage temperature |
-40℃ to 70℃ (-40℉ to 158℉) |
Storage humidity |
90% non-condensing relative humidity at 35℃ |
Connect speed LED Indicators |
Link/Activity LED: off = No Link; on = Link; Blinking = Activity |
Full-height end bracket |
12.07 cm ( 4.755 inches) |
Low-profile end bracket |
8 cm (3.15 inches) |
M/N |
Description |
Notes |
LREC7210PF-SFP |
PCIe x1 1000Base SFP Port Fiber NIC |
SFP connection, do not contain the fiber module |
LREC7210PF-LC |
PCI 1000Base-SX MM Fiber NIC (1x LC Intel 82545EB Based) |
1.25Gbps,850nm, 275m at 62.5 µm; 550m at 50 µm |
LREC7210PFLC-LX |
PCIe x1 1000Base-LX 1 x LC Port SM Fiber NIC |
1.25Gbps,1310nm, 20Km at 9 µm; |
LREC7210PF-SC |
PCIe x1 1000Base-SX SC Port MM Fiber NIC |
1.25Gbps,850nm, 275m at 62.5 µm; 550m at 50 µm |
LREC7210PF-SC-LX |
PCIe x1 1000Base-LX SC Port SM Fiber NIC |
1.25Gbps,1310nm, 20Km at 9 µm; |
LRGP8512-X5ATL |
1.25Gbps SFP multi-mode Transceiver |
1.25Gbps,850nm, 275m at 62.5 µm; 550m at 50 µm |
LRGP1312-20ATL |
1.25Gbps SFP Single-mode Transceiver |
1.25Gbps,1310nm, 20Km at 9 µm; |
PS: The above details are just for reference, if there are any changes, no prior notice.
