Description:

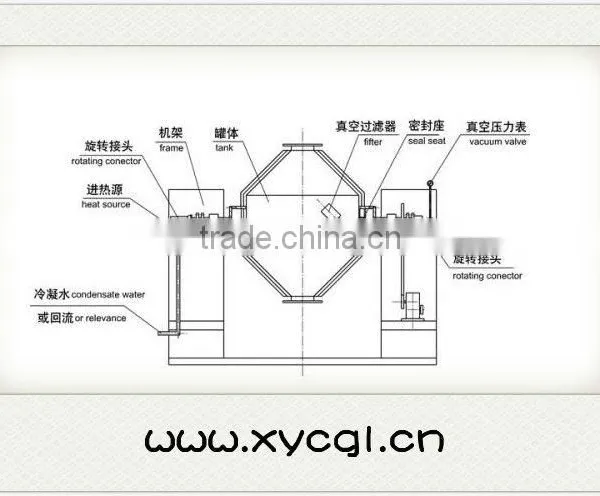

The main body of SZG rotating vacuum dryer is double cone tank, steam or hot water inside sealed jacket can heat the inner shell in vacuum state. As for working medium, it may be thermal oil or steam or hot water.When order, please indicate the temperature of raw material to be dried or operation temperature of dryer so that we can choose or provide suitable heat sources for you. To dry viscous raw material, we will design special stirring device in the chamber. The auxiliary parts of vacuum drying system can be supplied and installed by our engineer.
Features:
1. Due to the drying is operated in vacuum, it has high speed unde r low temperature.
2. It can save resource, especially suitable for thermal sensitive materials and the materials which are easy to oxidate.
3. The equipment adopt advanced design and the inner structure is simple.
4. The drying process is sealed, thus the products don't leak and pollute.
5. Raw material is dried and mixed in the rotation, and it can be dried to a low moisture (0.5%). Meanwhile, the final products own good uniformity.
6. Customer can select stepless regulation(1-10r/min) and step regulation(6-10r/min). It contributes to improve drying capacity.
Application:
It is widely used for drying powders, granules and fiber in chemistry and phamaceutical industry. Especially suitable for stimulating and poisonous materials.
Technical Parameter:
model |
100 |
350 |
500 |
750 |
1000 |
1500 |
2000 |
3500 |
4500 |
5000 |
|
volume inside |
100 |
350 |
500 |
750 |
1000 |
1500 |
2000 |
3500 |
4500 |
5000 |
|
Volume to fill |
≤50 |
≤175 |
≤250 |
≤375 |
≤500 |
≤750 |
≤1000 |
≤1750 |
≤2250 |
≤2500 |
|
Heating area |
1.16 |
2 |
2.63 |
3.5 |
4.61 |
5.58 |
7.5 |
11.2 |
13.1 |
14.1 |
|
revolution |
4 - 6 |
||||||||||
power of motor |
0.75 |
1.1 |
1.5 |
2 |
3 |
3 |
4 |
5.5 |
7.5 |
11 |
|
occupiedarea, |
2160 |
2260 |
2350 |
2560 |
2860 |
3060 |
3260 |
3760 |
3960 |
4400 |
|
rotating height |
1750 |
2100 |
2250 |
2490 |
2800 |
2940 |
2990 |
3490 |
4100 |
4200 |
|
|
-0.1-0.15 |
||||||||||
design pressure |
≤0.3 |
||||||||||
working temp- |
In the tank≤85 jacket≤140 |
||||||||||
When use con- |
2X-15A |
2X-15A |
2X-30A |
2X-30A |
2X-70A |
JZJX300-8 |
JZJX300-4 |
JZJX600-8 |
JZJX600-4 |
JZJX300-4 |
|
model and power |
2KW |
2KW |
3KW |
3KW |
505KW |
7KW |
9.5KW |
11KW |
20.5KW |
22KW |
|
When don,t use |
SK-0.4 |
SK-0.8 |
SK-0.8 |
SK-2.7B |
SK-2.7B |
SK-3 |
SK-6 |
SK-6 |
SK-9 |
SK-10 |
|
model and power |
1.5KW |
2.2KW |
2.2KW |
4KW |
4KW |
5.5KW |
11KW |
11KW |
15KW |
18.5KW |
|
Weight(kg) |
800 |
1100 |
1200 |
1500 |
2800 |
3300 |
3600 |
6400 |
7500 |
8600 |
|
Product Details:
