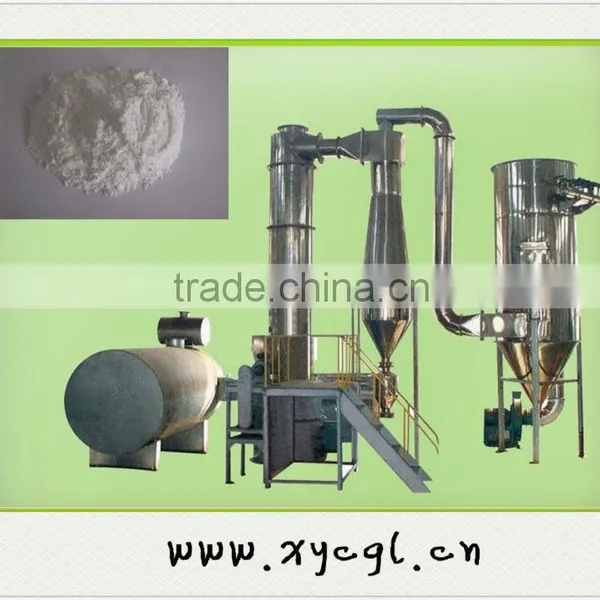

Spin Flash Dry Machinery For Magnesium Stearate

Spin Flash Dry Machinery For Magnesium Stearate thumbnail-1
Spin Flash Dry Machinery For Magnesium Stearate photo-1
US$ 20,000 - 40,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Flash Drying Equipment
Place of Origin:
Jiangsu, China
Contact Supplier Request Quote Chat Now
Changzhou Xingyu Drying Equipment Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
SHANGHAI
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Type Flash Drying Equipment
Place of Origin Jiangsu, China
Brand Name SHEN YU
Model Number XSG Series
Certification ISO9001:2000
Warranty three years
After-sales Service Provided Engineers available to service machinery overseas

Specifications

Spin flash dryers are used for drying materials such as paste, cake shape material, powder, granule,etc.

Description:

XSG series rotating flash dryer is a kind of new equipment, which is developed basing on advance technology abroard. It eliminates environmental pollution and  the entire machine performance can reach the international 1990's advance level.   Drying, grinding and sieve are completed in one equipment at a time.

Features:

1. It combines the rotational flow technology with smashing and classification technology.

2. Compact structure, resonable design and high production efficiency.

3. Feeding device can be chose according to your needs, and charging process is continuous and stable.

4. With air pressure equipment and shaft equipment, it can longer the life of machine.

Application:

1.Organic Material:
   PE, rhoda mine,101Gel, cadmium laureate, benzoic acid, germicide, sodium oxalate, cellulose, aminophenazone, 4-PABA, etc.

2.Inorganic Material:
  acetate fiber, rock quartz, mud conditioner,borax, calcium, carbone, hydroxide, copper sulfate ferric oxide, barium carbonate, antimony trioxide, all kind of metallic hydroxide, all kinds of heavy metallic salt, synthetic,etc.


3.Ceramic Industry:

   kaolin,silica, alumina clay,etc.



4.Dyestuff Industry:

   anthraquinone, black ferric oxide, indigo blue pigment, butyric acid, titanium hydroxide,zinc sulfide.



5.Food Industry:

   starch, soybean protein,GLU, soya protein, agglomerative starch, wheat starch,etc.



Technical Parameter:





Model XSG-2 XSG-4 XSG-6 XSG-8 XSG-10 XSG-12 XSG-16 XSG-20
ID of main machine,mm 200 400 600 800 1000 1200 1600 2000
Air amount,M3/h 350-500 1150-2000 2450-4500 4450-7550 7000-12500 10000-20000 18000-36000 28200-56500
Evaporated moisture,kg/h 12-17 40-70 80-150 150-250 230-4250 300-600 600-1000 1000-1500
Max equipped capacity,kw 10 20 40 65 85 105 150 230
Max,hight,m 4.0 4.8 5.8 6.5 7.1 7.8 8.8 10.1
Occupied area ,m 2 15 20 28 35 40 52 80 150
