Advanced Paint/painting/coating Applicator

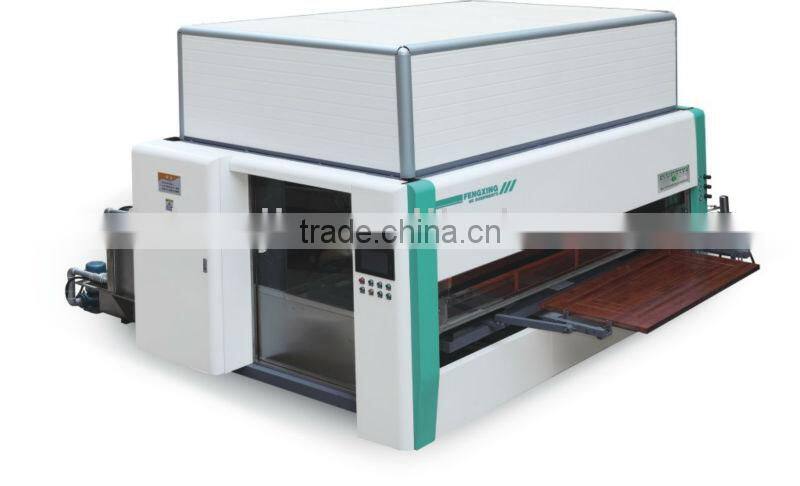

 Product  Picture:

 FXF250-MYW (automatic numerical control spray painting machine)

   Suitable for solid wood door,wood composite door, steel door

Features:

1. 160~240 doors per day (8h).

2. Automatic turnover mechanism and pneumatic rotary double-positioning feeding so that the machine can paints 6 sides a time..

3. Equipped with touching computer digital machine or automatic detecting machine ensures the surface painting smooth.

4. Easy to operate. Only 2 ordinary workers can deal with it.

5.Equipped with air purificationsystem and five-axis motor.

Through continuous research, our company has developed a new generation control system, in which an new autom atic programming system has been added on basis of the old system(namely point-to-point programming system). For new system, when you input length and width of products into the computer, the paint spraying machine will perform paint spraying according to preset technology. It is also possible to change the size of products without shutting down so as to achieve the effect of rapid production and paint saving.

Air Purifying System

The air will through percolation, from the engine room crest of the net sends into spray to paint the space after filtering, spraying surplus oil fog of the paint creation and varnishing the flavor was taken to spray to paint by the mighty current of air building collection the inside passes water fog decontamination empress that several waters fog of the stainless steel water plank empress spray a jet, from row breeze tube fly to eject.

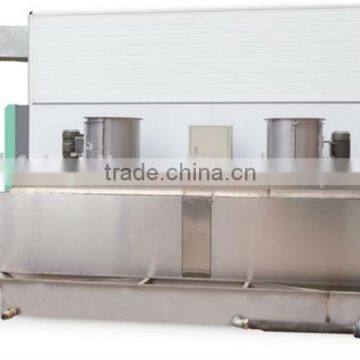

Cleaning System

This system is made up of a tank two fans and a pump.

Attached drencher curtain with floor cleaning device, collected the redundant paint mist during the spray-painting process, through water mist purifying by many drencher heads ejected that behind the drencher curtain board, then drained by exhaust fan.

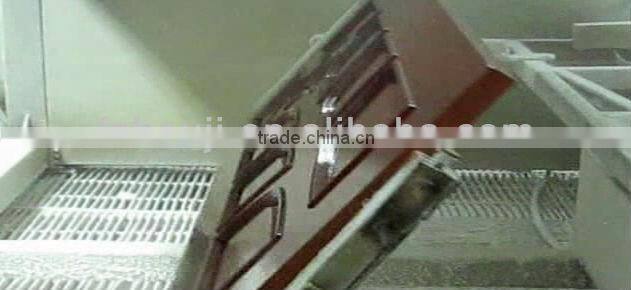

 Automatic Turnover Device

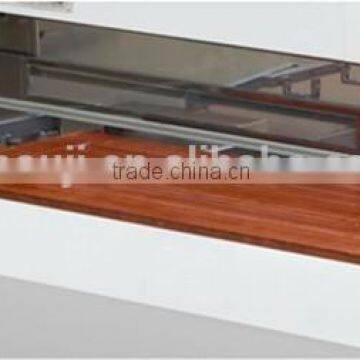

Pneumatic Rotary Double-positioning Feeding

Only 2 ordinary workers can deal with it.

Company work environment:

Packing:

How to distinguish between genuine and fake:

My machine have the Patent certificate of the People's Republic of China as below:

The contact way of our company:
