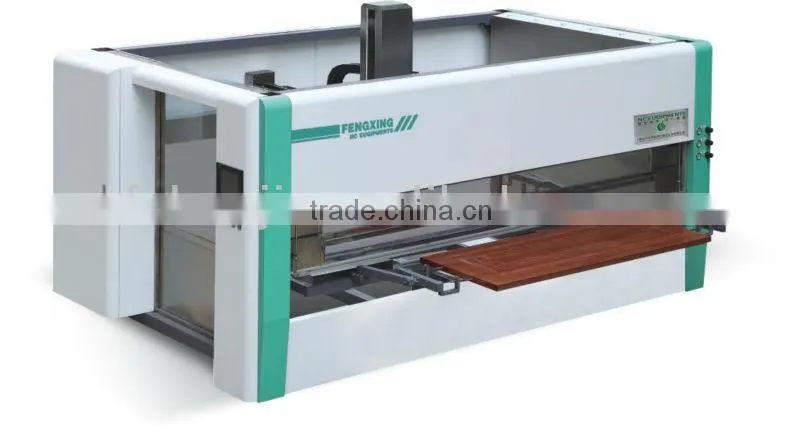

Product Picture:

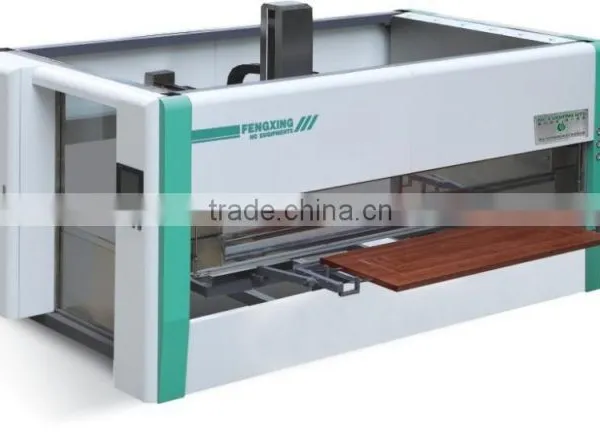

FXF250-M ( CNC AUTO SPRAY MACHINE )

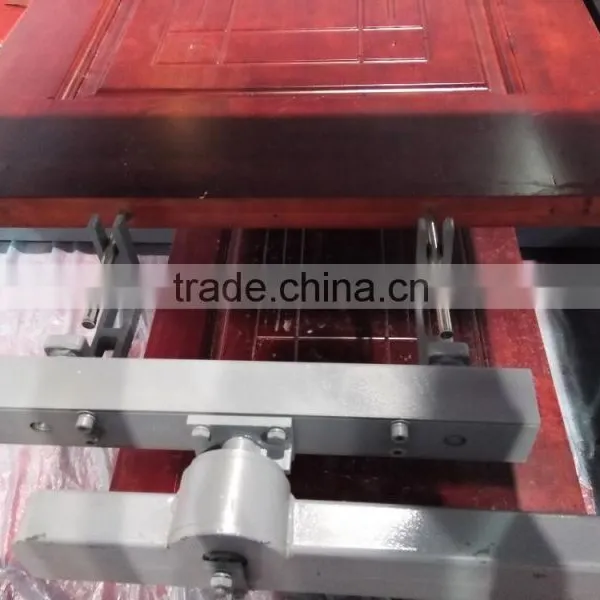

Turningover Device
Technical Parameters | |
Dimensions |
4.5*2.4*2.5 (Length*Width*Height) |
Weight of the machine |
2200 kg |
Max processing length |
2.44 m |
Max processing width |
1.2 m |
Max processing height |
0.15m |
Gun moving speed |
0~1800mm/s |
Gun caliber |
0.8/1.0/1.3 |
Servo motor(total) |
4KW |
Air pressure |
0.6MPA |
Types of paint |
PE,PC,PU,UC,XU,UV,Waterborne paint |
The amount of paint used |
80~300g/m² |
Power supply |
380V 50HZ (three-phase four-wire system ) |
Air consumption |
700~900L/min |
FEATURES:
1. 160~240 doors per day ( 8 hours )
2. Automatic turnover mechanism and pneumatic rotary double-positioning feeding so that the machine can paints 6 sides a time
3. Equipped with touching digital computer machine and automatic detecting machine
4. Easy to operate.
5. When painting, only two ordinary workers can deal with the machine.
6. When you input length and width of products into the computer, the paint spraying machine will perform paint spraying according to preset technology. It is also possible to change the size of products without shutting down so as to achieve the effect of rapid production and paint saving.

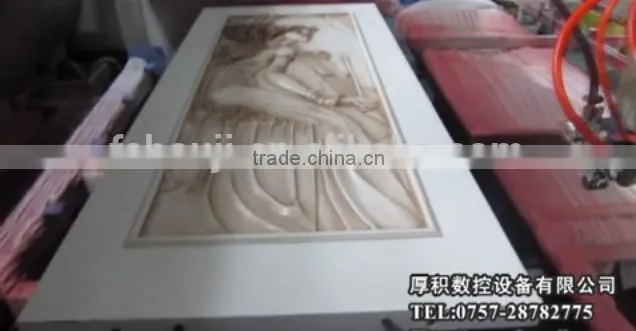

Before spray painting :

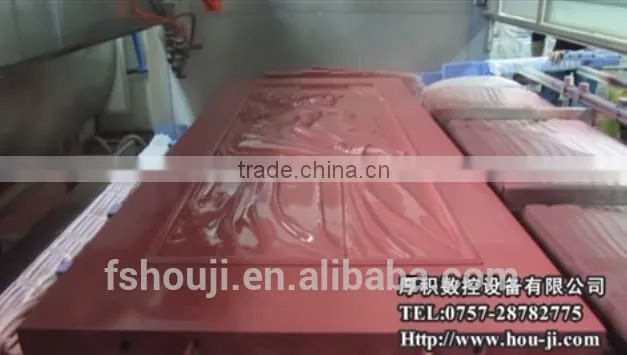

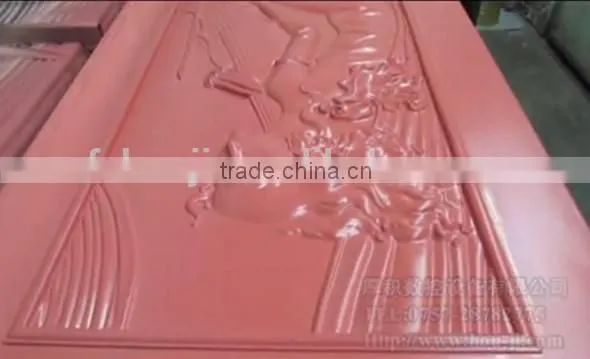

After spray painting :

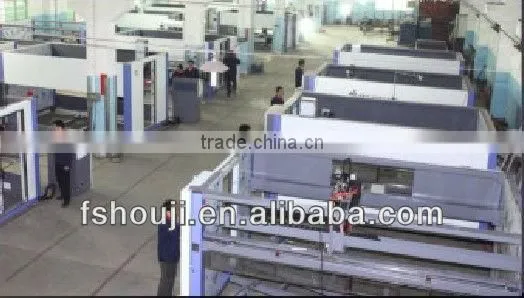

Company work environment:
Packing:
How to distinguish between genuine and fake:
My machine have the Patent certificate of the People's Republic of China as below:
The contact way of our company:
