Yetnorson vehicle active internal gps antenna ceramics chip antenna,mini gps antenna
antenna bluetooth,GPS dielectric car internal ceramic PCB antenna 1.13 cable
1. pcb gps ceramic patch antenna form information
gps ceramic patch antenna |
Center Frequency |
1575.42±1MHz/1602mhz |
Band Width |
CF±5MHz |
|
Polarization |
RHCP |
|
Gain |
3dBic(Zenith) |
|
V.S.W.R |
<1.5 |
|
Impendance |
50Ω |
|
Axial Ratio |
3dB(max) |
|
Dimension |
25*25*4mm |
|
LNA |
Gain |
26±2dB |
Noise Figure |
<1.3 |
|
Filter Insertion Loss |
<3dB |
|
Ex-band Attenuation |
12dB@CF+50MHz/16dB@CF-50MHz |
|
Supply Voltage |
2.2~5V DC |
|
Current Consumption |
10~26mA |
|
V.S.W.R |
<2.0 |
|

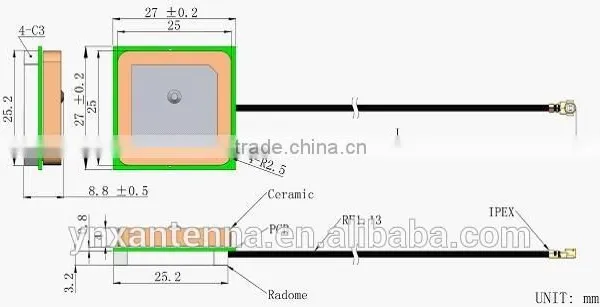

gps ceramic patch antenna Mechanical |
Cable |
RG174 |
Connector |
UFL/IPEX |
|
Radome Material |
ABS |
|
Mounting Method |
Magnet |
|
gps ceramic patch antenna Environmental |
Operating Temperature |
-40°C~+85°C |
Relative Humidity |
Up to 95% |
|
Ingress Protection |
IP67 |
|
Vibration |
10 to 55Hz with 1.5mm amplitude 2hours |
|
Environmentally Friendly |
ROHS Compliant |

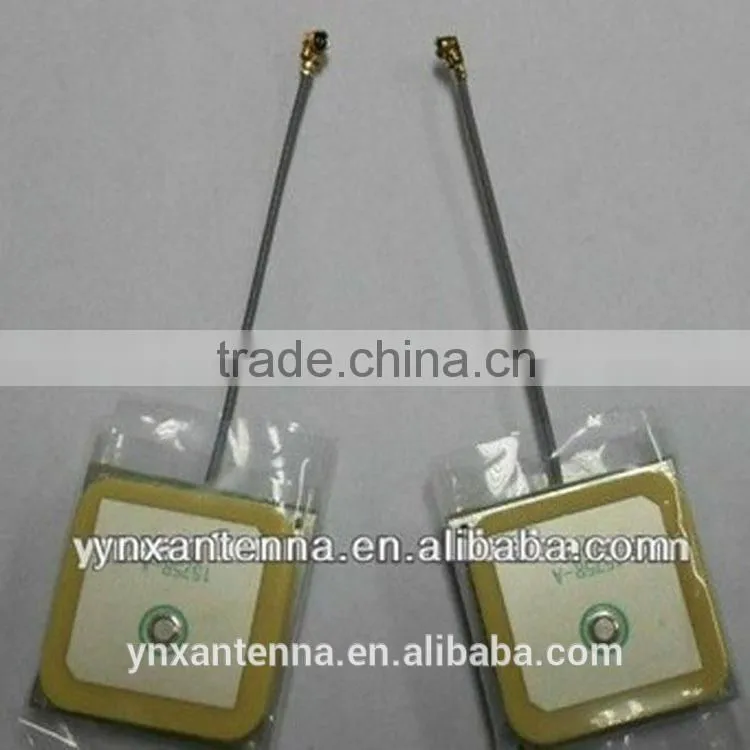

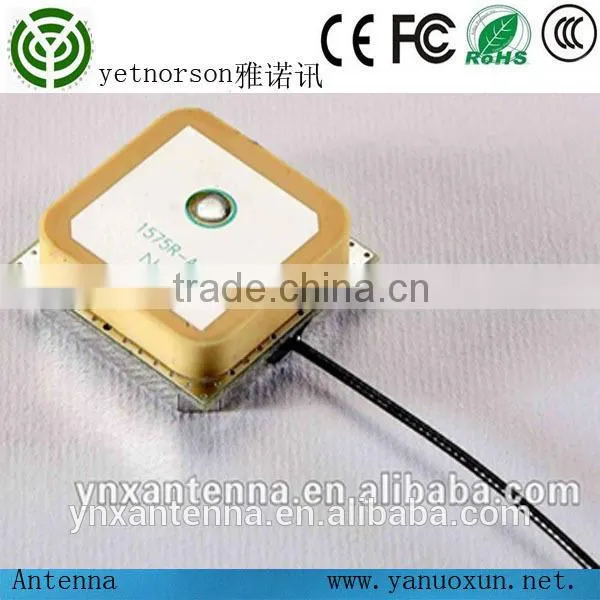

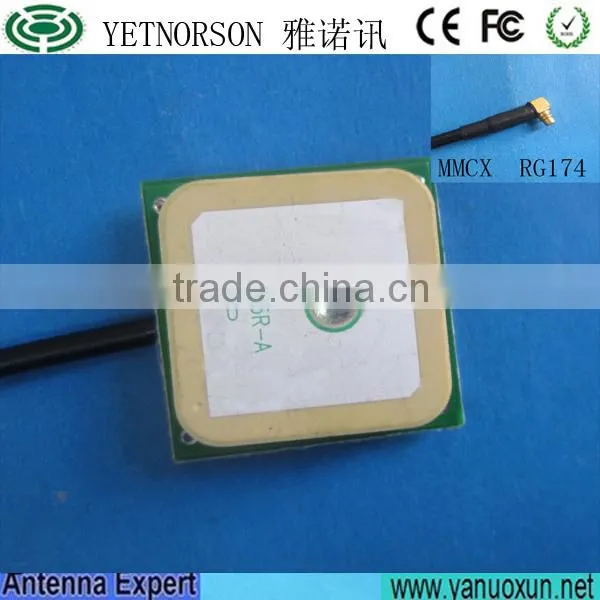

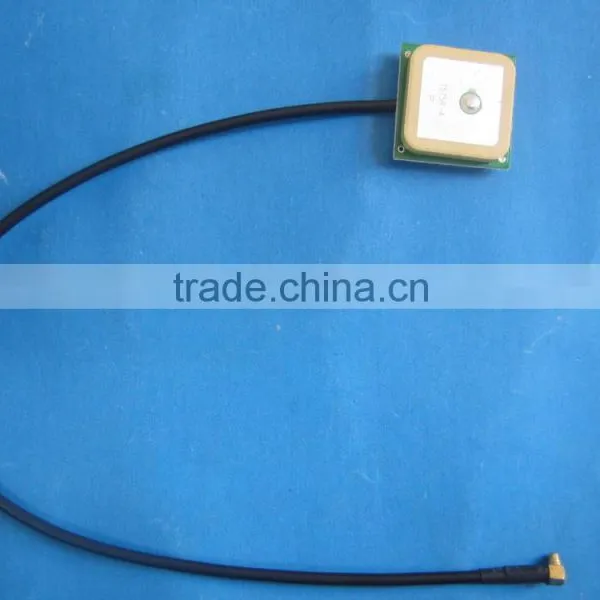

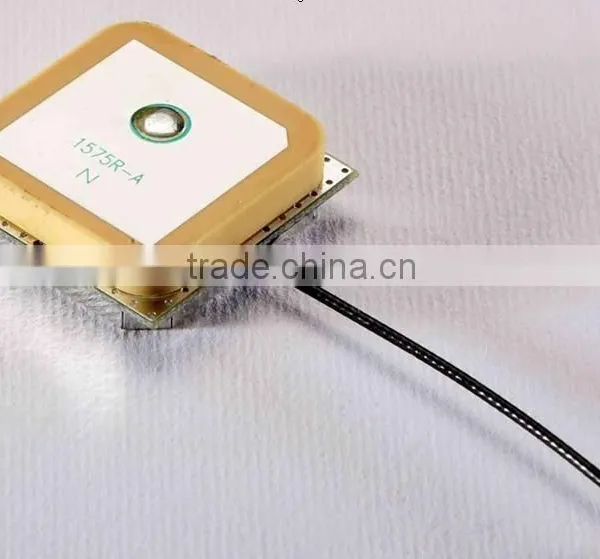

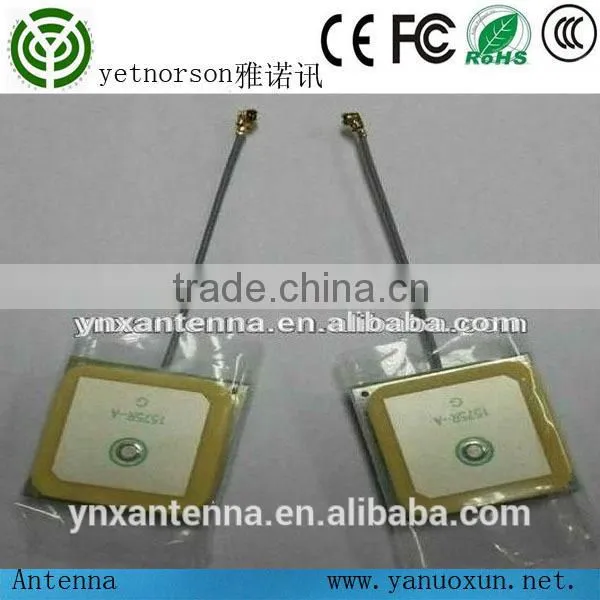

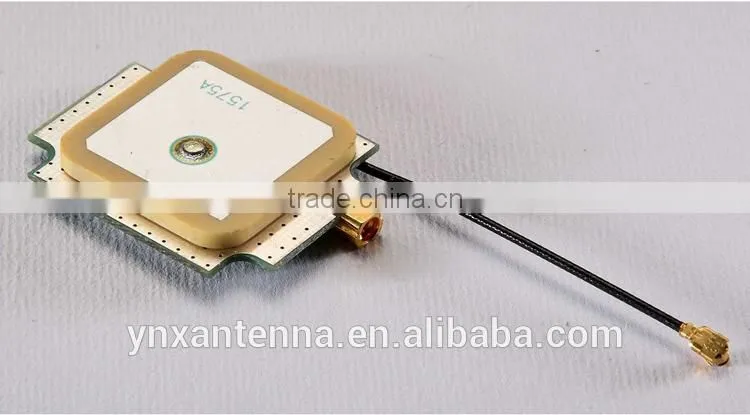

2. gps ceramic patch antenna detial pictures
Application
1.For GPS and Glonass system,passive antenna,made of Ceramic Microstrip Substrat
2. Compact Size, Light Weight, Low Profile, Easy to Assemble and Hide
3. The high gain LNA is made of low noise microwave components to ensure the sensibility of the system.

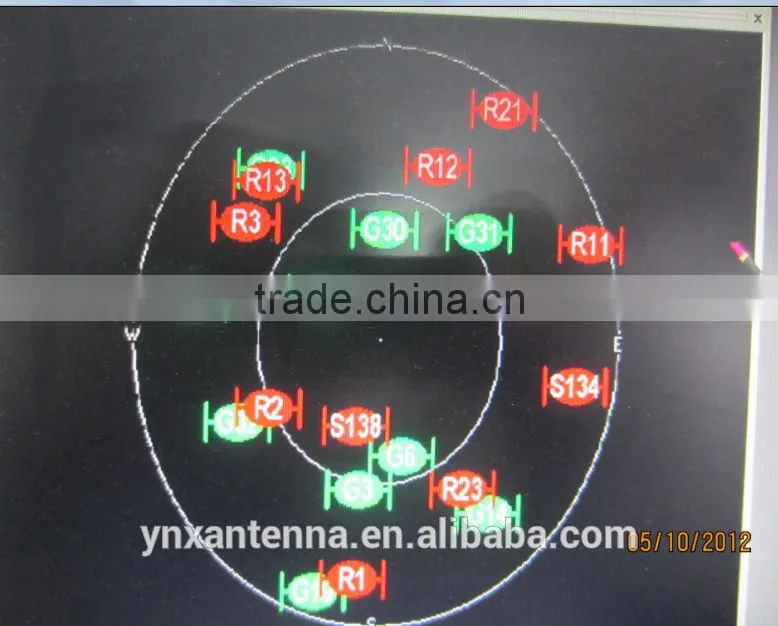

3. pcb gps ceramic patch antenna testing report
4. pcb gps ceramic patch antenna certification
5.our company and factory information
Shenzhen Yetnorson Technology Co.,Ltd is one of the professional antenna maker focus on the development, design, manufacture, sale and Service of radio communications antennas. which has been dedicated to the antenna development like GSM/CDMA/PHS/3G/4G antenna, 2.4GHz (wi-fi, wlan)/3.5GHz (wimax)/5.8GHz/wi-fi amplifier communication antenna serial(including: all direction, yagi antennas ,3G parabolic antennas, panel antenna, indoor antenna like : ceiling mount antenna, Wall Mount Antenna, desk antenna, double polar, rubber, bandwide, card mount serial antenna. We also provide DVB-T/DMB-T/CMMB moving digital TV antenna, low frenquency antenna: 315MHz/433MHz wi-fi digital /wi-fi control /wi-fi wrote water meter/electricity meter antenna, GPS guide antenna, communicate parts, connector and so on. At present, Shenzhen Yetnorson Technology Co.,Lth.has developed more than 100 styles of antenna, with wi-fi internet, wi-fi electronic control, wi-fi end, wi-fi public telephone, wi-fi digital pass, wi-fi Satilla position, wi-fi Radio broadcasting communication field.
Refund & Replacement
1. We can guarantee the product quality within one years .
2. If parts cannot work, we will return payment or replacement to you.
3. Any items must be returned in their original condition to qualify for a refund or replacement.
4. The buyer is responsible for all the shipping cost incurred.
Quality is essential to both of us, we believe that High quality, Low price,Mutual benefit will be good basis of our cooperation!!! pcb gps ceramic patch antenna
