GPS Antenna Active MCX Male Straight Connector With 3M Extension Cable Magnetic
- Shenzhen
- T/T L/C D/P D/A Credit Card PayPal
You May Like
-
Car GPS Navigation Antenna Aerial With SMA Male Connector 3M Cable H1E1
-
GPS Active Antenna 1575.42MHZ Fakra Plug Pin Nut for Car Aerial Receiver 5M
-
GPS Active Antenna 1575.42MHZ Fakra C 5005 SMB Jack Pin for Telematics 3M
-
28dbi GPS External Antenna With Fakra Connector Car Gps Antenna
-
1575.42MHZ RP-SMA Jack Pin for Car GPS Active Antenna Receiver
-
Magnetic 3M Aerial Car GPS Navigation Active Antenna Receiver With Fakra Connector
Product Details
| Place of Origin | Guangdong, China | Brand Name | Yetnorson | |
| Model Number | YNX-GPS-001 | Car Make | universal | |
| Frequence Range | 1575.42Mhz/1602MHz | Gain(dB) | 28±3dbi | |
| Cable Length | 3m/5m cable |
One product with one PE bag packaging of OEM smooth GPS antenna 1575 auto gps antenna with sticker
Product Description
GPS Antenna active MCX male straight connector with 3M extension cable magnetic
GPS Antenna
Dielectric Antenna
1. Center Frequency(MHz) 1575.42 MHz ±3 MHz
2. Band Width(MHz) ±5 MHz
3. V.S.W.R(in BW) 1.5:1
4. Gain(Zenith) >3dbi
5. Polarization R.H.C.P
6. Impedance 50 Ω
LNA/Filter
1. LNA Gain 28±3 dB
2. Noise Figure 1.5 dB
3. Filter Out Band Attenuation 20dB Min f0±50MHz
30dB Min f0±100MHz
4. DC Voltage 2.2~5 V
5. DC Current 5~15 mA Max
6. Output impedance 50 Ω
Mechanical
1. Cable RG174 3m/5m or others
2. Connector SMA/SMB/MCX/FAKRA/BNC/USB or others
3. Plastic Housing Black
4. Mounting Magnet/Adhesive
5. Weight 75g (3M cable)
6. Size 49×39×15mm (We have many Size type, it is optional)
Environment
storage temperature -45~+100°C
working temperature -40~+85°C
temperature 55%~75%RH
water proof IP67

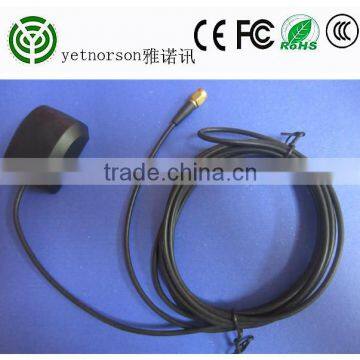

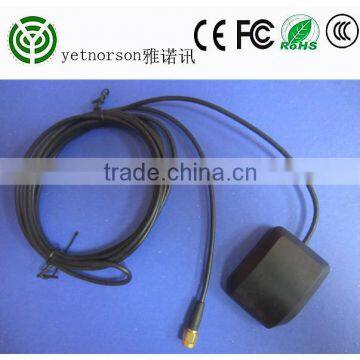

The appearance of GPS Antenna active MCX male straight connector
The test of GPS Antenna active MCX male straight connector
We Provide
1) High quality and competitive price
2) Standard packing and timely delivery
3) We supply OEM and ODM service
4) Sample Order and Small Order are acceptable
1,Q:what is you brand ?
A: Yetnorson antennas
2,Q:how can i get the sample ?
A: if you need sample to test ,please pay for the shipping cost and antenna cost ,there we can send the sample to you
3,Q: how much the shipping cost will be for sample ?
A :The depend on the weight and packing size you are
4, Q :how can i get the price list ?
A :please send the email and order information for us , so we can give the latest price for you
5.Q:Can you give me the deliver time?
A: Delivery time is approx. 14 to 25 business days (excluded Saturday & Sunday, Public Holiday) to most US/UK/AU destinations
1) Australia - 7-14 working days
2)UK/ Canada - 14-21 working days
3)Europe & Ireland - 18-24 working days
4)Brazil/ South America - 30-40 working days
5)Russian Federation:30-50 working days,we suggest you choose hk post
