1575.42mhz External Active Magnetic GPS Antenna With RG174 3m/5m Cable High Performance
- Shenzhen
- T/T L/C D/P D/A Credit Card PayPal
You May Like
-
Magnetic Base High Gain 28dbi 1575.42mhz Gps Active Antenna With Sma Connector
-
1575.42mhz Magnetic Car GPS Active Antenna With SMA FAKRA Connector
-
Free Sample Gps Antenna With Sma Connector,high Gain Gps Antenna With Sma Connector
-
Magnetic Car GPS Active Antenna With Sma Connector Free Sample GPS Antenna
-
Shenzhen Car Gps Antenna With Sma Connector Gps Antenna
-
High Gain China Gps Antenna,china Gps Antenna Supplier
Product Details
| Place of Origin | Guangdong, China | Brand Name | Yetnorson | |
| Model Number | YNX-GPS-001 | Car Make | universal | |
| Frequence Range | 1575.42Mhz/1602MHz | Gain(dB) | 28±3dbi | |
| Cable Length | 3m/5m cable |
One product with one PE bag packaging of OEM smooth GPS antenna 1575 auto gps antenna with sticker
Product Description
1575.42mhz external active magnetic GPS antenna with RG174 3m/5m cable High Performance
Specifications of external active magnetic GPS antenna
Antenna | Center Frequency | 1575.42±1MHz |
Band Width | CF±5MHz | |
Polarization | RHCP | |
Gain | 28±3dbi | |
V.S.W.R | <1.5 | |
Impendance | 50Ω | |
Axial Ratio | 3dB(max) | |
LNA | DC Voltage | 3-5V |
Noise Figure | 1.5dB | |
Filter Insertion Loss | <3dB | |
Ex-band Attenuation | 12dB@CF+50MHz/16dB@CF-50MHz | |
Supply Voltage | 2.2~5V DC | |
Current Consumption | 10~26mA | |
V.S.W.R | <2.0 | |
Mechanical | Cable | RG174 |
Connector | SMA/MCX/FAKRA or others | |
Radome Material | ABS | |
Mounting Method | Magnet | |
Environmental | Operating Temperature | -40°C~+85°C |
Relative Humidity | Up to 95% | |
Ingress Protection | IP67 | |
Vibration | 10 to 55Hz with 1.5mm amplitude 2hours | |
Environmentally Friendly | ROHS Compliant |

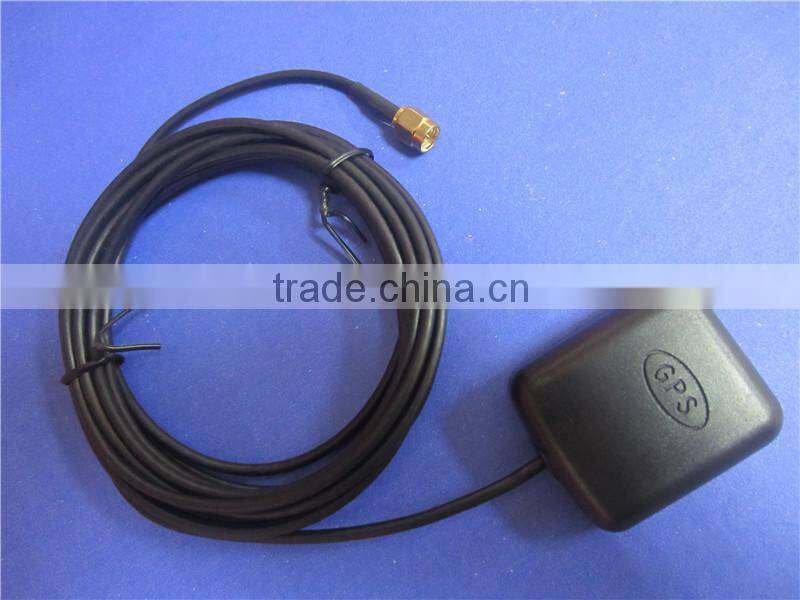

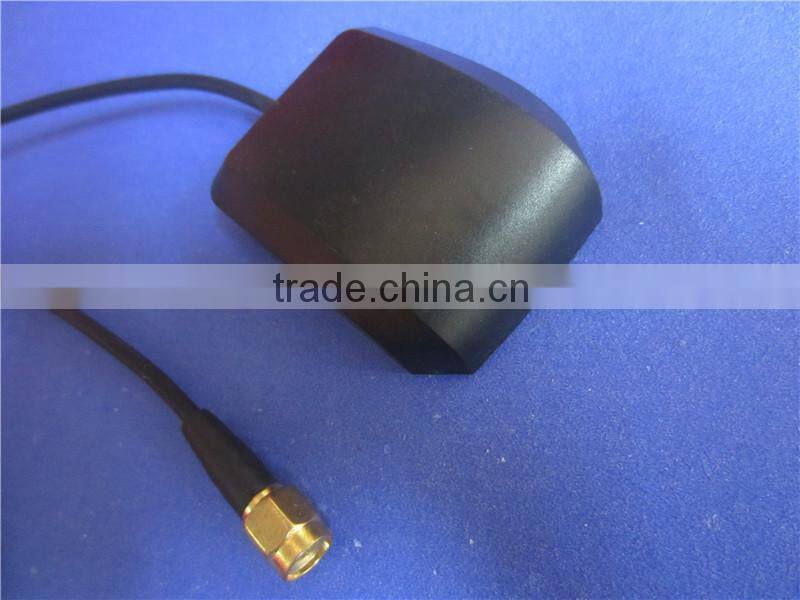

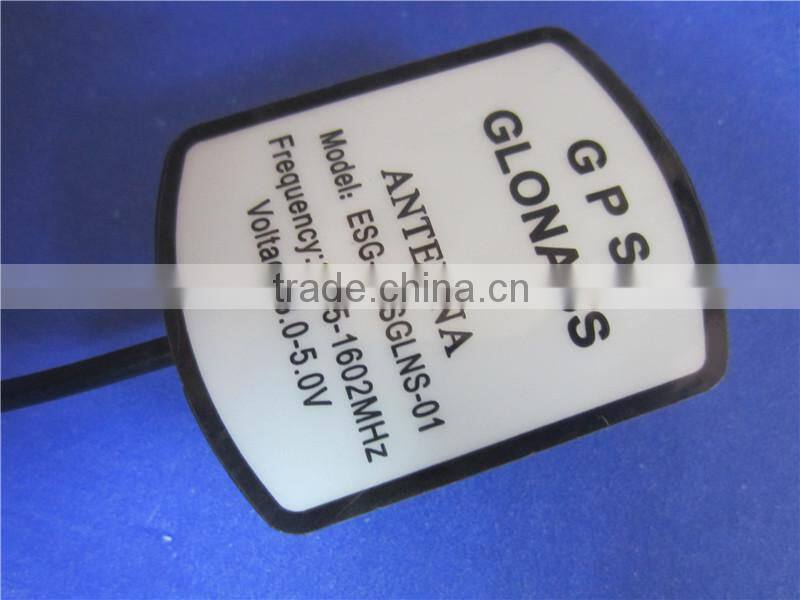

The appearance of external active magnetic GPS antenna
The test of external active magnetic GPS antenna
We Provide
1) High quality and competitive price
2) Standard packing and timely delivery
3) We supply OEM and ODM service
4) Sample Order and Small Order are acceptable
1,Q:what is you brand ?
A: Yetnorson antennas
2,Q:how can i get the sample ?
A: if you need sample to test ,please pay for the shipping cost and antenna cost ,there we can send the sample to you
3,Q: how much the shipping cost will be for sample ?
A :The depend on the weight and packing size you are
4, Q :how can i get the price list ?
A :please send the email and order information for us , so we can give the latest price for you
5.Q:Can you give me the deliver time?
A: Delivery time is approx. 14 to 25 business days (excluded Saturday & Sunday, Public Holiday) to most US/UK/AU destinations
1) Australia - 7-14 working days
2)UK/ Canada - 14-21 working days
3)Europe & Ireland - 18-24 working days
4)Brazil/ South America - 30-40 working days
5)Russian Federation:30-50 working days,we suggest you choose hk post
