Car GPS Navigation Antenna Aerial with SMA Male Connector 3M Cable H1E1 SMA Male Straight Mcx GPS Antenna 1575.42MHz
GPS Antenna
Dielectric Antenna
1. Center Frequency(MHz) 1575.42 MHz ±3 MHz
2. Band Width(MHz) ±5 MHz
3. V.S.W.R(in BW) 1.5:1
4. Gain(Zenith) >3dbi
5. Polarization R.H.C.P
6. Impedance 50 Ω
LNA/Filter
1. LNA Gain 28±3 dB
2. Noise Figure 1.5 dB
3. Filter Out Band Attenuation 20dB Min f0±50MHz
30dB Min f0±100MHz
4. DC Voltage 2.2~5 V
5. DC Current 5~15 mA Max
6. Output impedance 50 Ω
Mechanical
1. Cable RG174 3m/5m or others
2. Connector SMA/SMB/MCX/FAKRA/BNC/USB or others
3. Plastic Housing Black
4. Mounting Magnet/Adhesive
5. Weight 75g (3M cable)

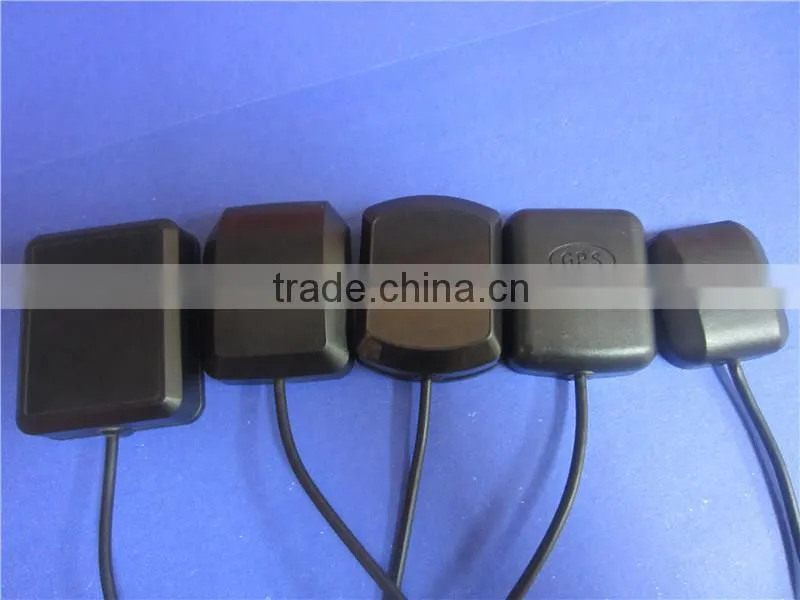

6. Size 49×39×15mm (We have many Size type, it is optional)
Environment
storage temperature -45~+100°C
working temperature -40~+85°C
temperature 55%~75%RH
water proof IP67

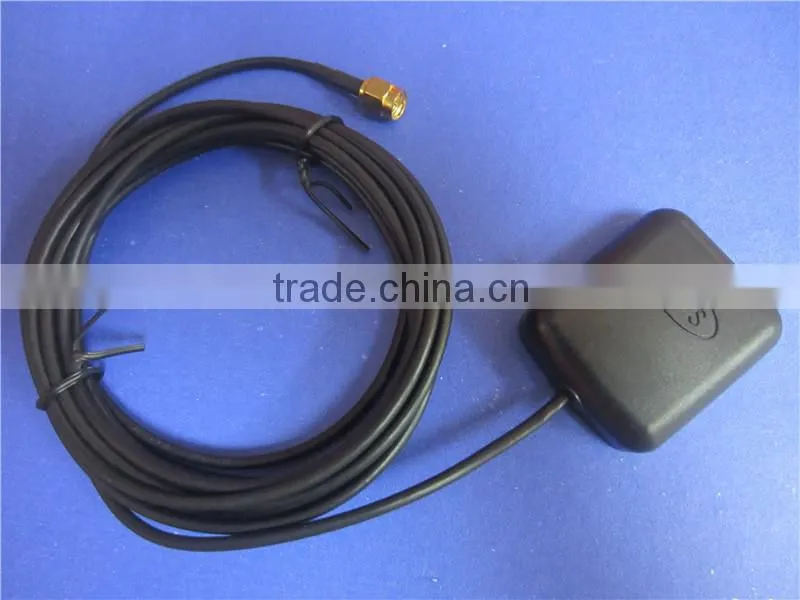

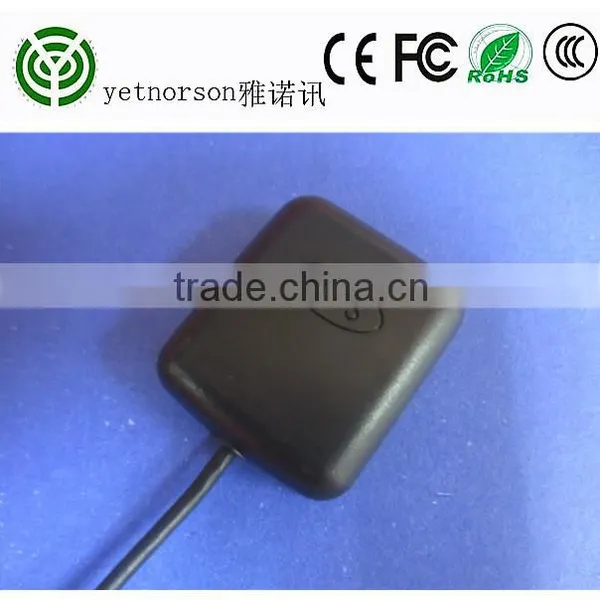

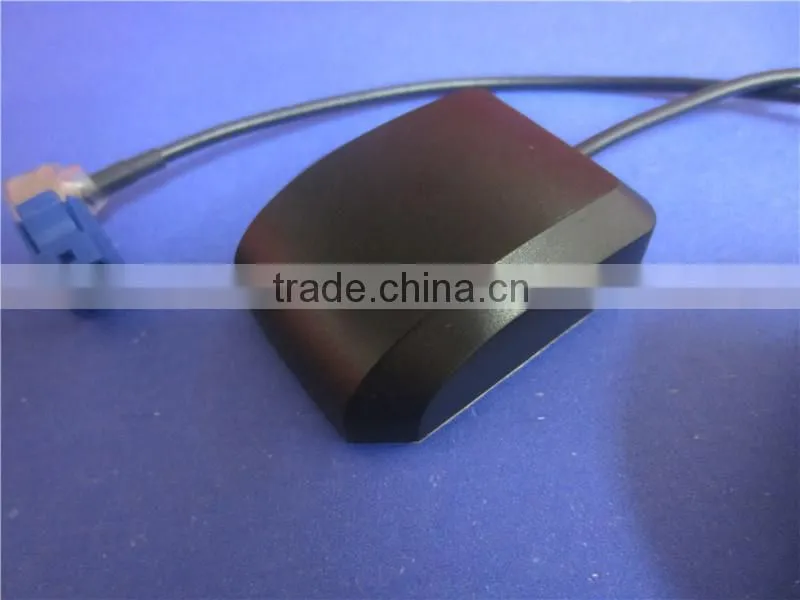

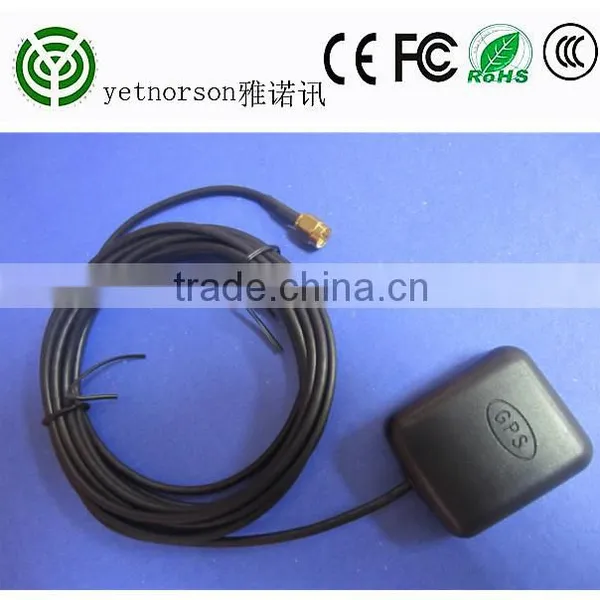

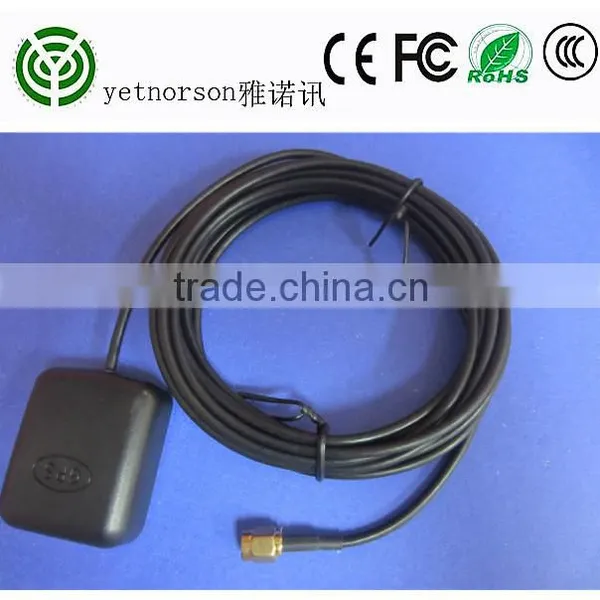

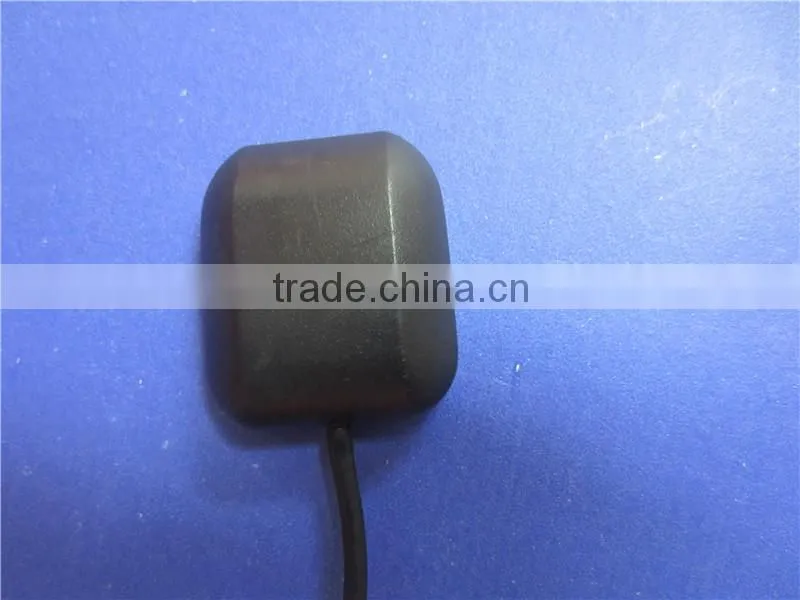

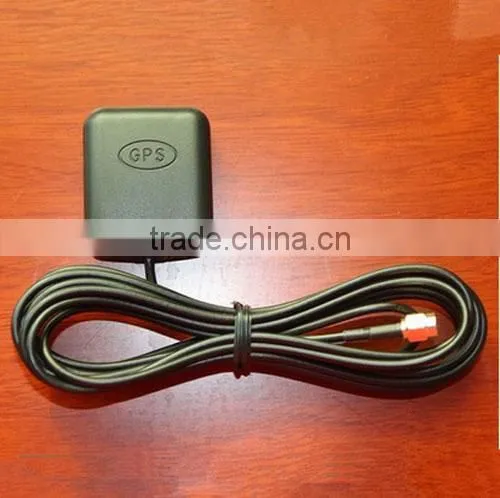

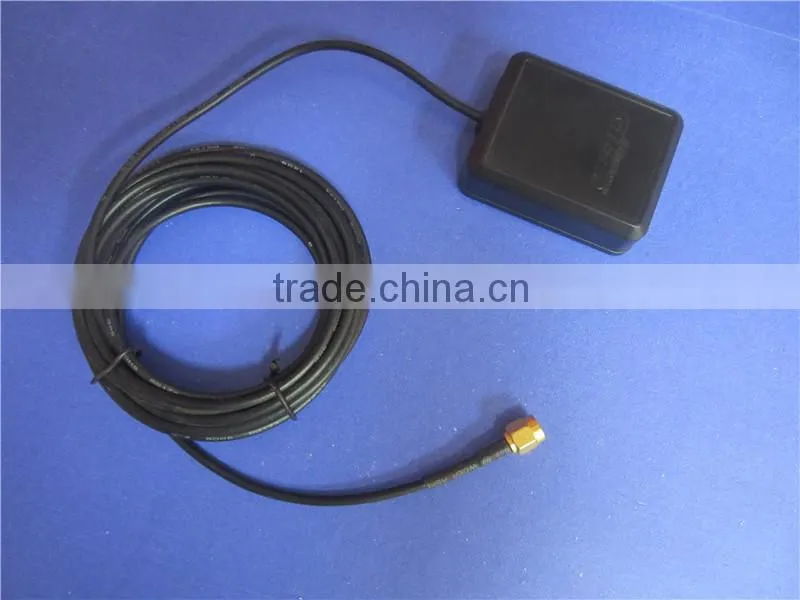

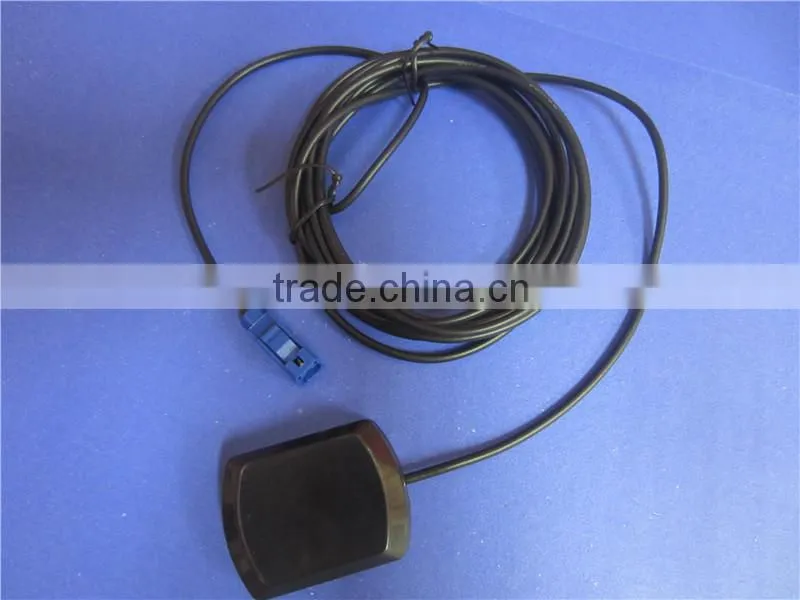

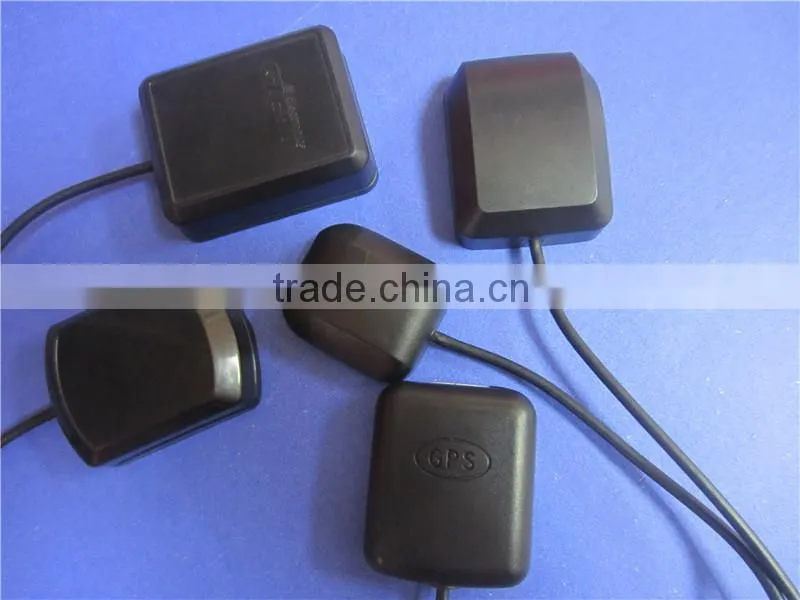

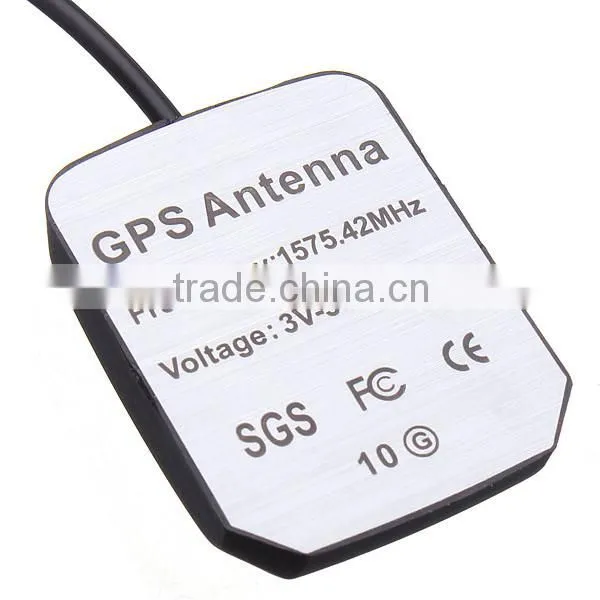

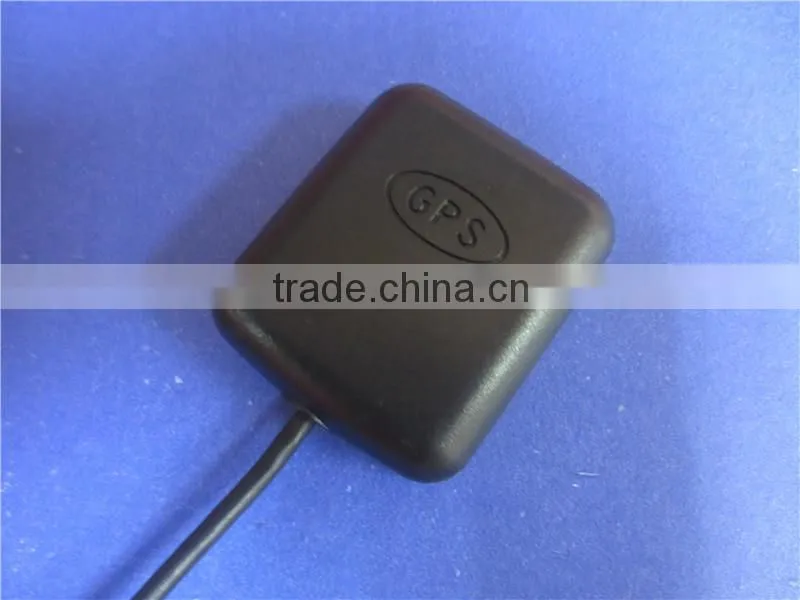

The appearance of Car GPS Navigation Antenna Aerial

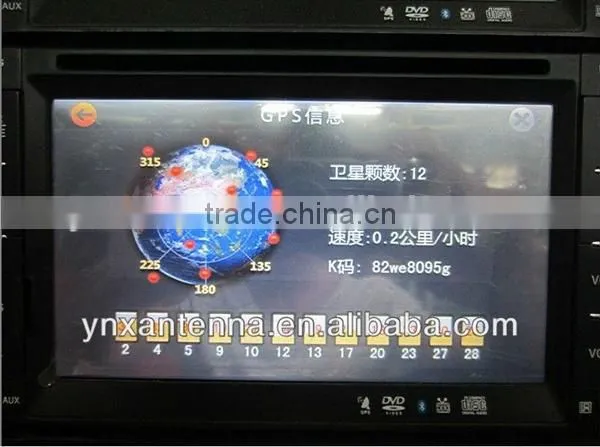

The test of Car GPS Navigation Antenna Aerial
We Provide
1) High quality and competitive price
2) Standard packing and timely delivery
3) We supply OEM and ODM service
4) Sample Order and Small Order are acceptable
1,Q:what is you brand ?
A: Yetnorson antennas
2,Q:how can i get the sample ?
A: if you need sample to test ,please pay for the shipping cost and antenna cost ,there we can send the sample to you
3,Q: how much the shipping cost will be for sample ?
A :The depend on the weight and packing size you are
4, Q :how can i get the price list ?
A :please send the email and order information for us , so we can give the latest price for you
5.Q:Can you give me the deliver time?
A: Delivery time is approx. 14 to 25 business days (excluded Saturday & Sunday, Public Holiday) to most US/UK/AU destinations
1) Australia - 7-14 working days
2)UK/ Canada - 14-21 working days
3)Europe & Ireland - 18-24 working days
4)Brazil/ South America - 30-40 working days
5)Russian Federation:30-50 working days,we suggest you choose hk post
If You have Any Questions, Feel Free to Contact Us
welcome to inquire,any questions and request, please feel free to contact with me!
