Product Description

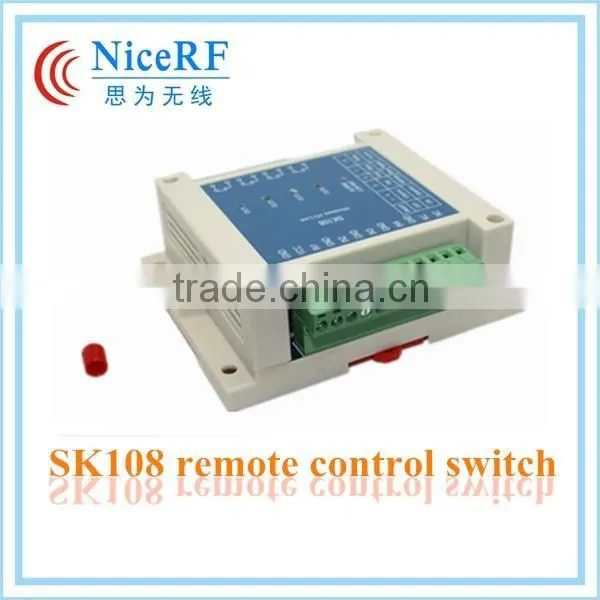

SK108U is a industrial four channel wireless switch controller, it provides maximum four channel signal input and maximum four channel control output. The parameters can be modified by PC software. the work frequency also be change by the dial switch on the Module. (16 group is optional), It features simple interface and reliable performance.Using this module, user can replace wired device with the wireless connection, which significantly reduce the cost and save much time.

Specification:
Brand NiceRF
Item SK108U Remote Control Switch

Parameter

Min

Type

  Max

Unit

Condition

Condition

Working voltage

9

12

18

V



Working temperature

-40

25

+85

°c



Current consumption

Rx current



<20



mA



Tx current



<200



mA



Standby current



<7



mA



RF parameters

Output power



30



dBm



Sensitivity



-121



dBm

@ 1200



Feature:

3000m Transmitter distance

16 predefined channel

Parameters configurable by PC software

GFSK modulation

Antenna automatic matching and Two-way switch control

Sensitivity up to 121 dBm

Maximum output power: 1 W

Working voltage 9 ~ 18 V

Working temperature: - 40 ~ + 85 ° C

Weight:143g



Application:

Remote control switch control Wireless Controller

Security system

Home automation remote sensing

Wireless remote telemetry

Building automation and security

Entrance guard system



Accessories

Antenna

The antenna is important in the communication. For this module, the match impedance is 50 Ohm. We have many kinds of antenna for customer to choose, please contact the corresponding sales engineer for help, or find the antenna in our website.



USB Bridge Board

The USB Bridge is useful for customers to configure the parameters and simply to do communication test with PC. There are 3 types of USB Bridge, which are SU108-TTL, SU108-232, SU108 - 485. SU108 -TTL is for TTL Interface, SU108-232 is for 232 Interface, SU108 - 485 is for 485 Interface:



2015 NiceRF Alibaba China Wireless Switch Remote Controller Wireless Switch Module Shenzhen Remote Control Switch

2015 NiceRF Alibaba China Wireless Switch Remote Controller Wireless Switch Module Shenzhen Remote Control Switch2015 NiceRF Alibaba China Wireless Switch Remote Controller Wireless Switch Module Shenzhen Remote Control Switch2015 NiceRF Alibaba China Wireless Switch Remote Controller Wireless Switch Module Shenzhen Remote Control Switch2015 NiceRF Alibaba China Wireless Switch Remote Controller Wireless Switch Module Shenzhen Remote Control Switch

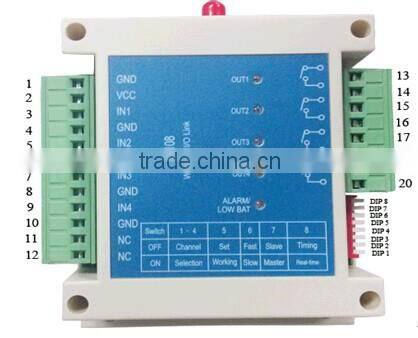

Pin definition

2015 NiceRF Alibaba China Wireless Switch Remote Controller Wireless Switch Module Shenzhen Remote Control Switch

PIN No.

PIN

Description

1

GND

   Connect power Cathode

2

VCC

Connect power anode

3~12

NC

NC

13

OUT1

The First relay control switch output

14

15

OUT2

The Second relay control switch output

16

17

OUT3

The Third relay control switch output

18

19

OUT4

The Forth relay control switch output

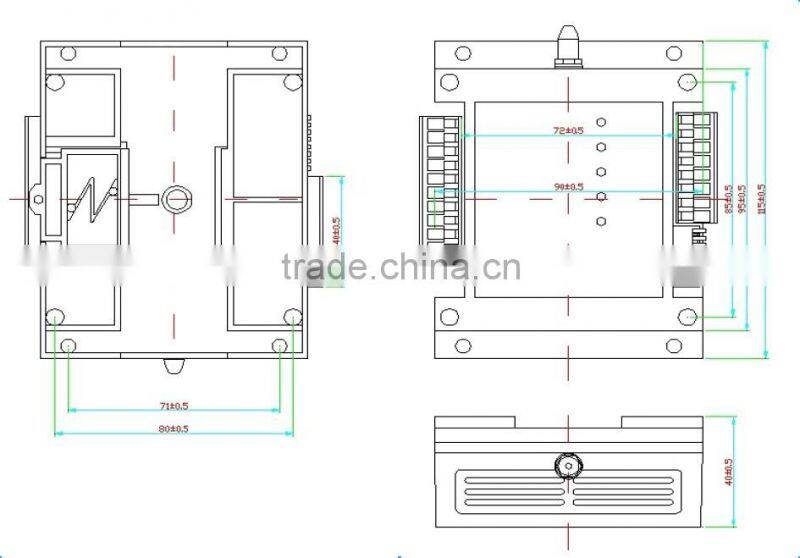

Mechanism definition

2015 NiceRF Alibaba China Wireless Switch Remote Controller Wireless Switch Module Shenzhen Remote Control Switch
