Brand Name NiceRF
Model Number RF4432F27
Use Universal
Place of Origin Guangdong, China

Specifications

Si4432 RF chip,sensitivity up to -121dBm and high output power,FSK,GFSK and OOK Modulation mode



RF4432F27 Medium-power wireless transceiver module





RF4432F27 is 500mW medium power transceiver modules, which adopts Silicon Lab Si4432 RF chip. The module has high receive sensitivity up to -121dBm and high output power, long RF in-sight-range distance. The simple port design makes it highly integrated in small size.

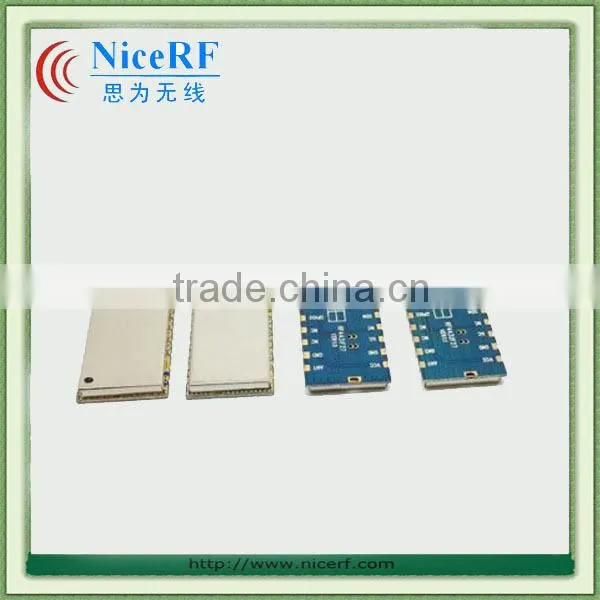

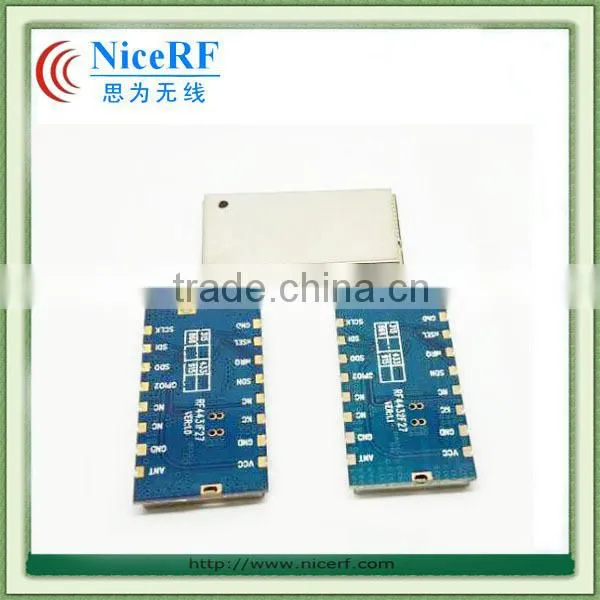

Product Show:

NiceRF rf remote control receiver module RF4432F27 spi interface

NiceRF rf remote control receiver module RF4432F27 spi interface















Electronic Specifications

 NiceRF rf remote control receiver module RF4432F27 spi interface













Features:
*Frequency Range: 433/868(Customizable 240-930 MHZ)
*Sensitivity up to -122dBm
*Output power up to 27dBm
*Data transfer rate:0.123-256 kbps
*FSK,GFSK and OOK Modulation mode
*3.3-6 V Power supply
*Ultra-low consumption shutdown mode
*Digital received signal strength indicator (RSSI)
*Timed wake-up function
*The antenna automatically match and two-way switch control
*Configurable packet structure
*Preamble detection
*64-byte transmit and receive data register(FIFO)
*Low-power detection
*Temperature sensor and 8-bit analog-to-digital       converters
*Operating Temperature Range:-40 ~ + 85 °C
*Integrated voltage regulator
*Frequency hopping
*Power-on reset function
*Built-in crystal adjustment function







Application:
*Remote control
*Remote meter reading
*Home security alarm and remote keyless entry
*Sensor networks
*Industrial control
*Tire Pressure Monitoring
*Home automation telemetry
*Health Monitoring
*Personal data records
*Wireless PC peripherals
*Toy control
*Tag reader

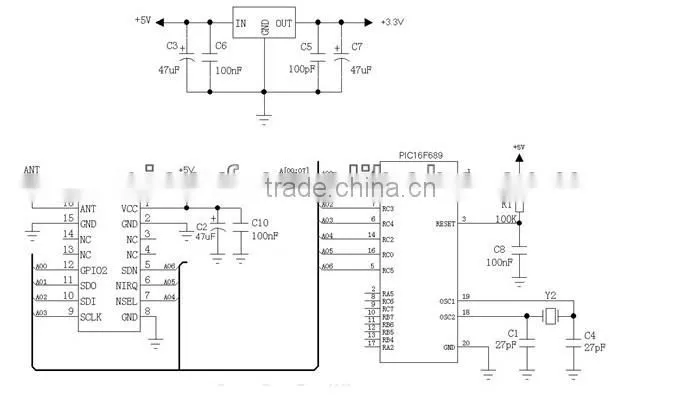

Schematic:

NiceRF rf remote control receiver module RF4432F27 spi interface





Pin Definition:

 NiceRF rf remote control receiver module RF4432F27 spi interfaceNiceRF rf remote control receiver module RF4432F27 spi interface







Machine Dimension:

 NiceRF rf remote control receiver module RF4432F27 spi interface

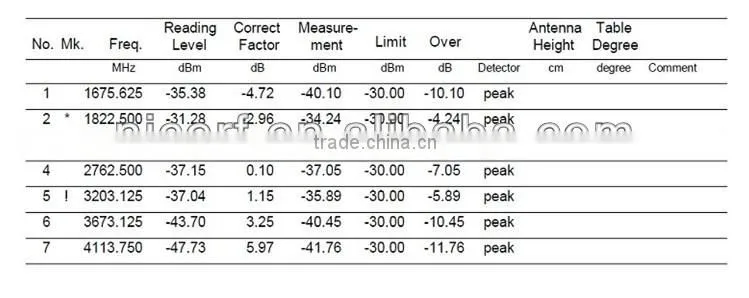

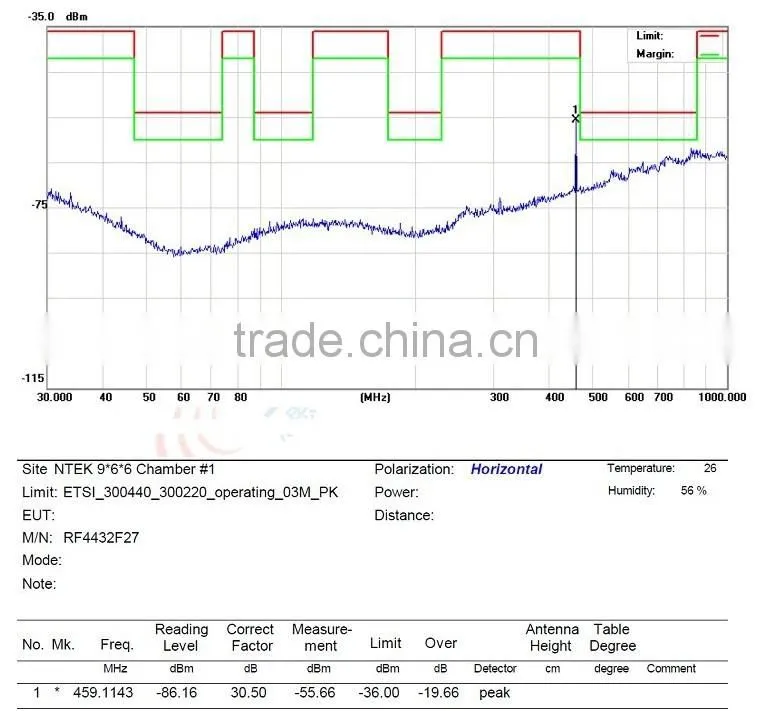

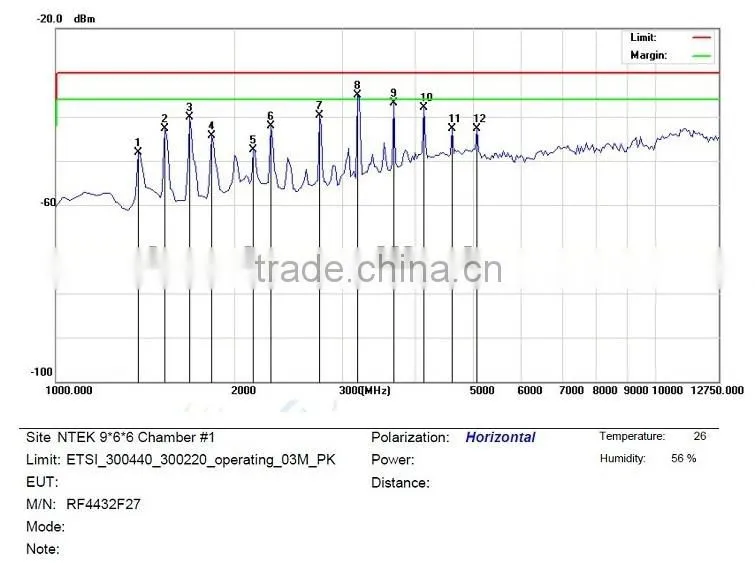

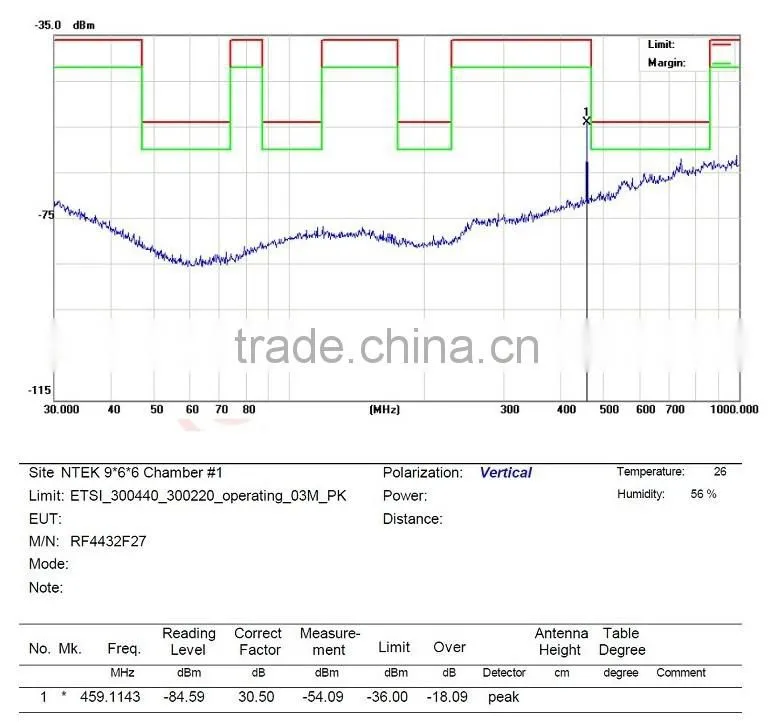

Spectrogram:



 NiceRF rf remote control receiver module RF4432F27 spi interfaceNiceRF rf remote control receiver module RF4432F27 spi interfaceNiceRF rf remote control receiver module RF4432F27 spi interfaceNiceRF rf remote control receiver module RF4432F27 spi interfaceNiceRF rf remote control receiver module RF4432F27 spi interfaceNiceRF rf remote control receiver module RF4432F27 spi interface

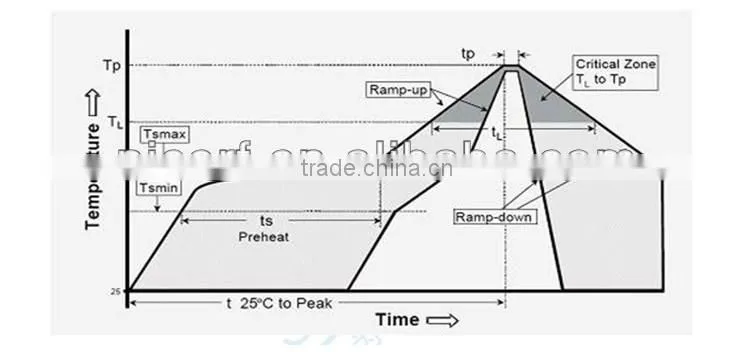

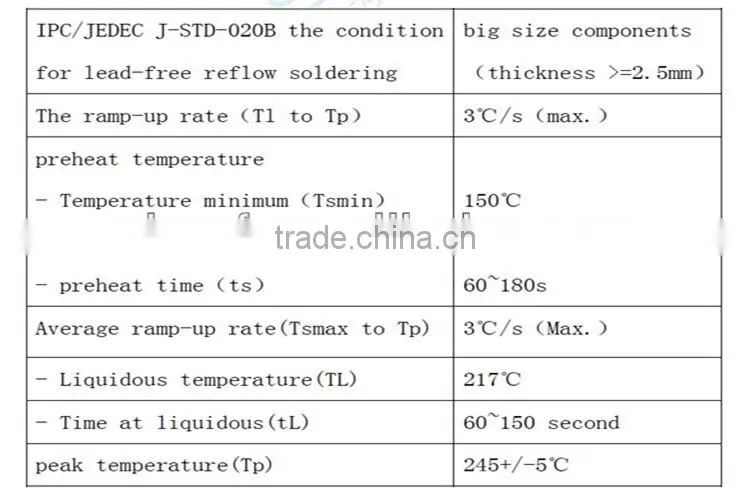

 Furnace Temperature Curve:

NiceRF rf remote control receiver module RF4432F27 spi interfaceNiceRF rf remote control receiver module RF4432F27 spi interface
